1980 Yamaha TZ125G (TZ125G) Meter Diagram

← All diagrams

Find the part on the Meter diagram for your 1980 Yamaha TZ125G (TZ125G), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

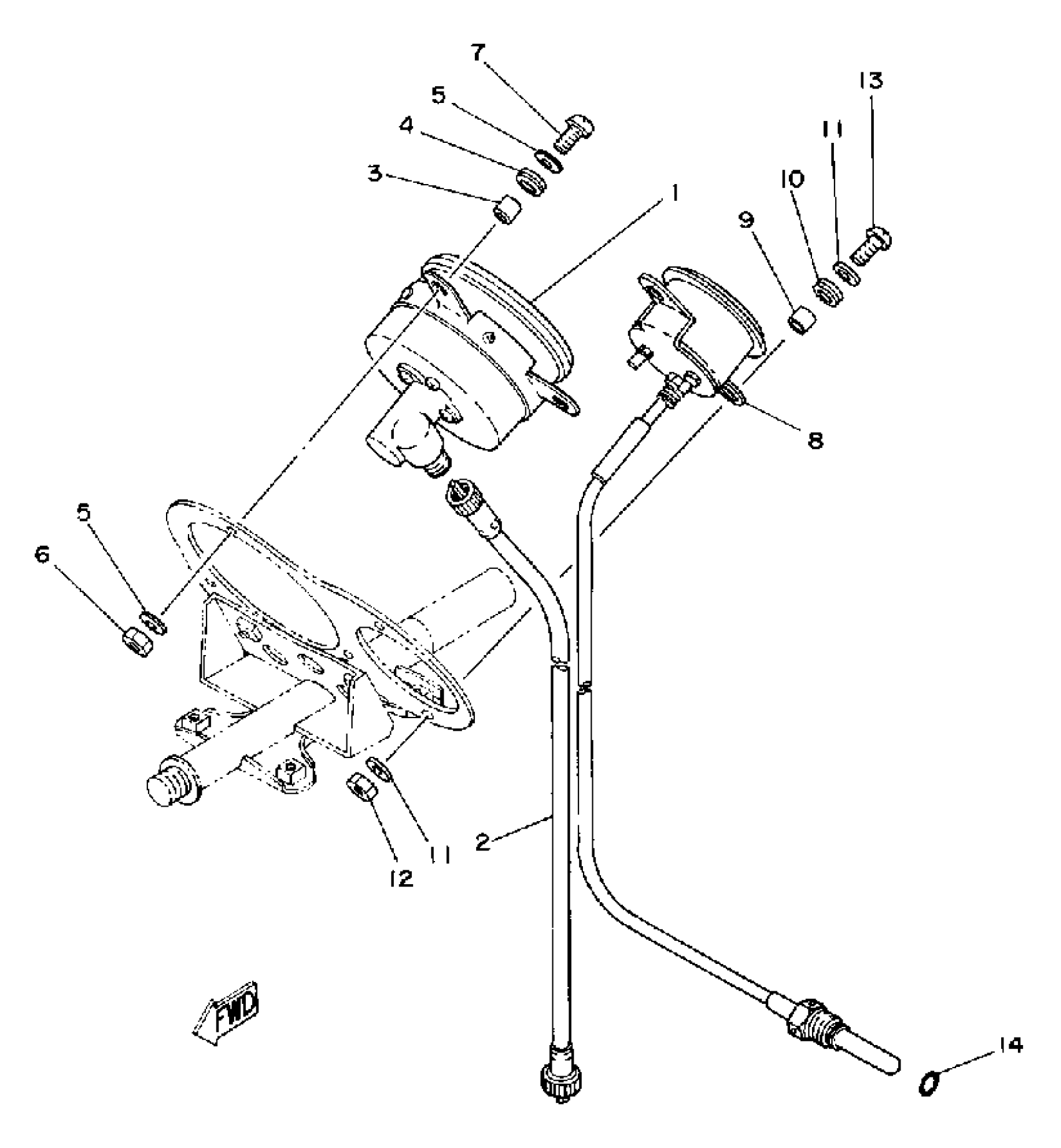

1980 Yamaha TZ125G (TZ125G) Meter Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

TACHOMETER ASSEMBLY

3G2-83540-00-00

1
Out of stock

2

TACHOMETER CABLE ASSY

2A6-83560-00-00

1
Out of stock

3

COLLAR

(90387-05715-00)

1
Out of stock

4

GROMMET 214217470000

90480-14103-00

1
Out of stock

5

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

6

NUT, U

95617-05100-00

1
Out of stock

7

SCREW, PAN HEAD

98517-05030-00

1
Out of stock

8

WATER TEMP. ASSEMBLY

4A0-83590-01-00

1
Out of stock

9

COLLAR

(90387-05715-00)

1
Out of stock

10

GROMMET 214217470000

90480-14103-00

1
Out of stock

11

WASHER PLATE 829771780000

90201-05033-00

1
Out of stock

12

NUT, U

95617-05100-00

1
Out of stock

13

SCREW, PAN HEAD

98517-05030-00

1
Out of stock

14

O-RING (260)

93210-10118-00

1
Out of stock
