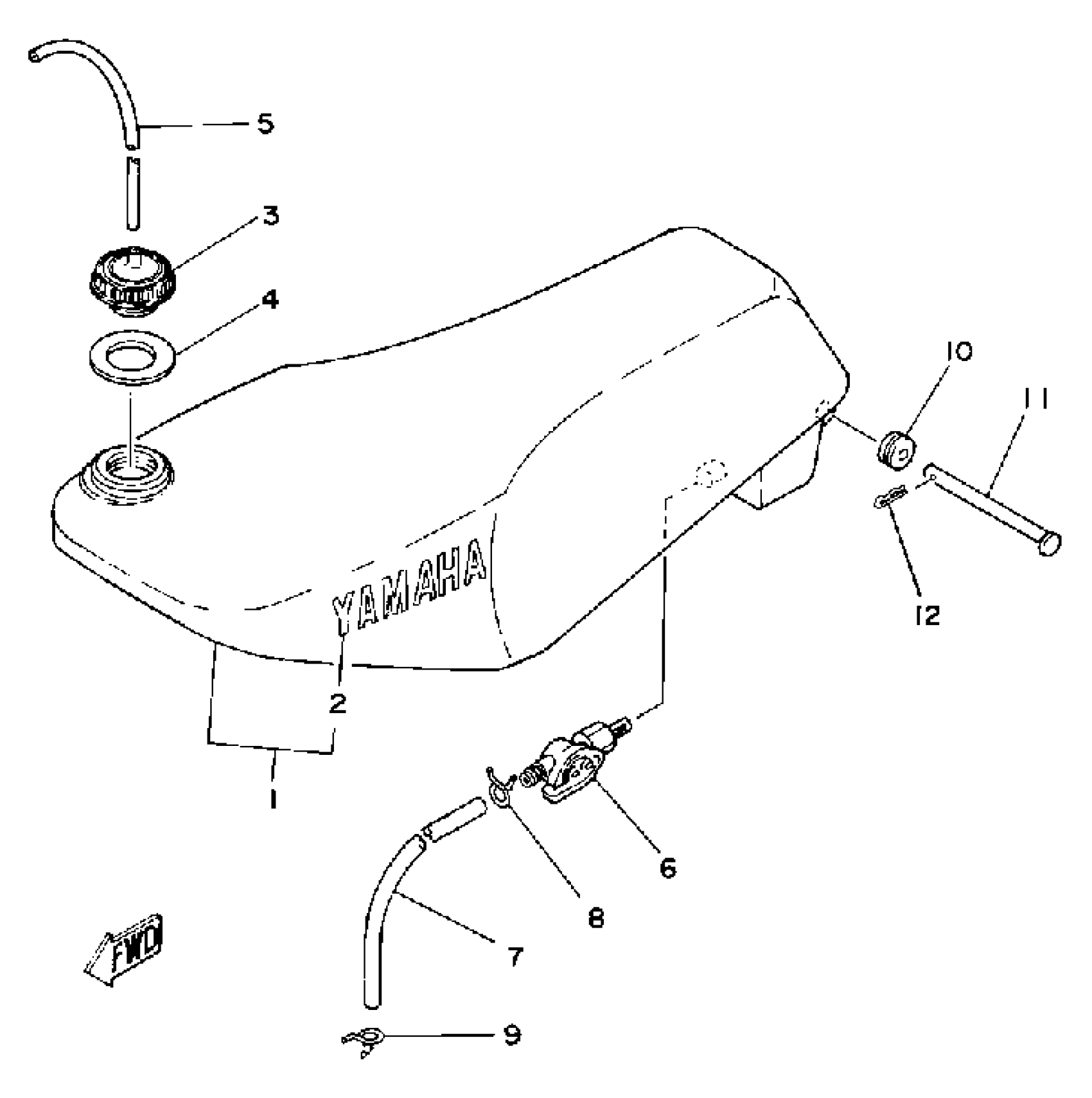

Yamaha TZ125G (TZ125G) 1980 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(3V3-24110-00-01)

Unavailable

2

EMBLEM, YAMAHA(PASTEL GOLD)

99245-00120-00

Unavailable

3

BODY, CAP

322-24611-02-00

$46.67

4

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

5

HOSE (395-14197-00)

90446-07094-00

Unavailable

6

FUEL COCK ASSY

322-24500-02-00

$74.83

7

HOSE (L370)

90445-112E1-00

$19.06

8

CLIP

90467-100A1-00

$5.96

9

CLIP(1JH)

90467-11106-00

$2.55

10

GROMMET (431)

90480-14052-00

$4.09

11

PIN, CLEVIS (3M7)

91701-05105-00

Unavailable

12

CLIP (156-83525-00)

90468-10050-00

$2.16
