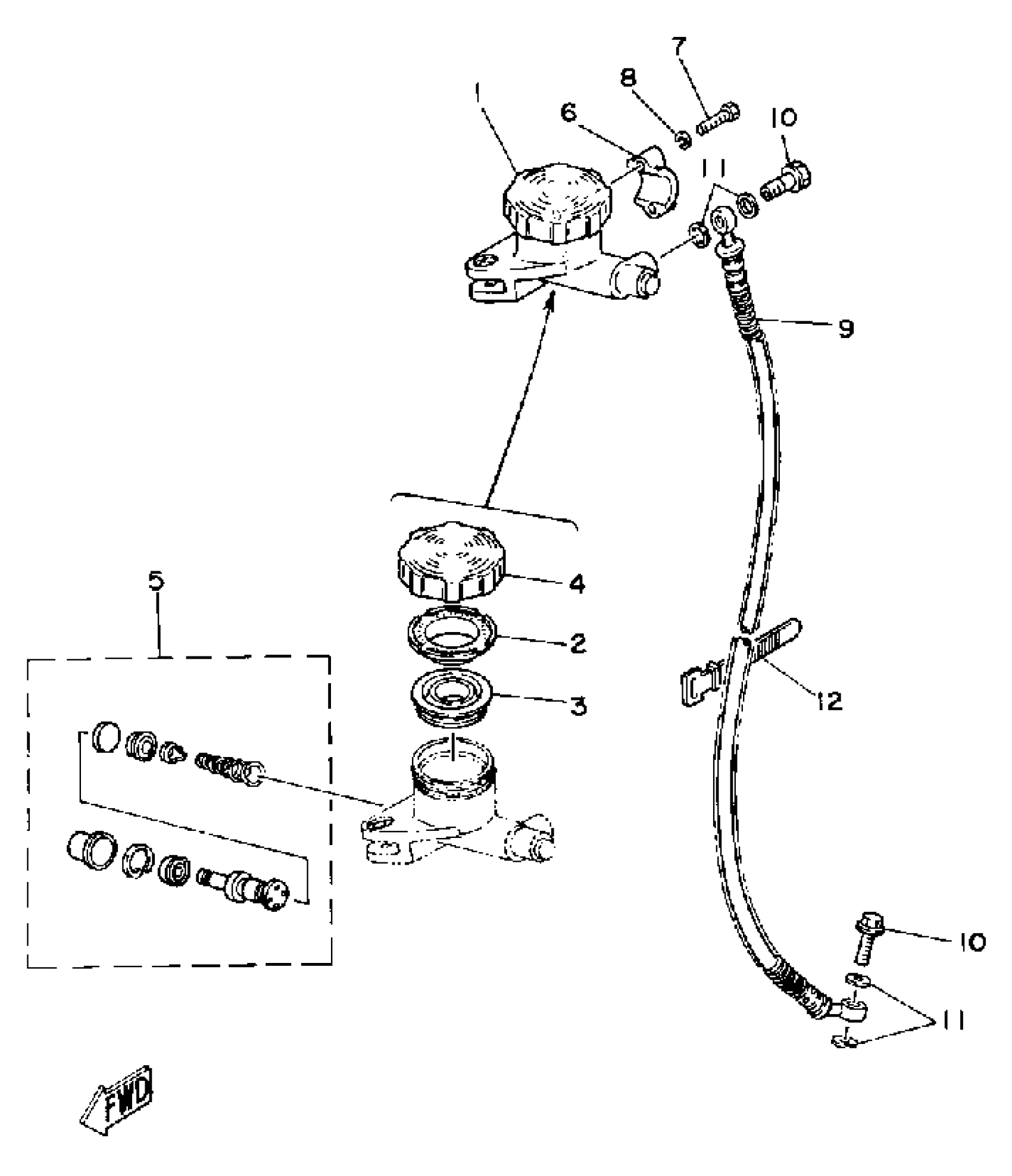

Yamaha TZ125G (TZ125G) 1980 FRONT MASTER CYLINDER Diagram

#

Description

Price

1

MSTR CYLINDER ASSEMBLY

(3V3-25850-00-00)

Unavailable

2

BUSH, DIAPHRAGM

(409-25855-00-00)

Unavailable

3

DIAPHRAGM RESERVOR

(409-25854-00-00)

Unavailable

4

CAP, RESERVOIR

(409-25852-00-00)

Unavailable

5

CYLINDER KIT, MASTER

1A0-W0041-00-00

Unavailable

6

BRACKET, MASTER

1J3-25867-00-00

Unavailable

7

BOLT, HEXAGON

97017-06025-00

$4.24

8

WASHER, SPRING

92995-06100-00

Unavailable

9

HOSE, BRAKE 1

(3V3-25872-00-00)

Unavailable

10

BOLT, UNION

(90401-10062-00)

Unavailable

11

WASHER, PLATE(481)

90201-10118-00

Unavailable

12

BAND, SWITCH CORD

437-83936-11-00

$4.63
