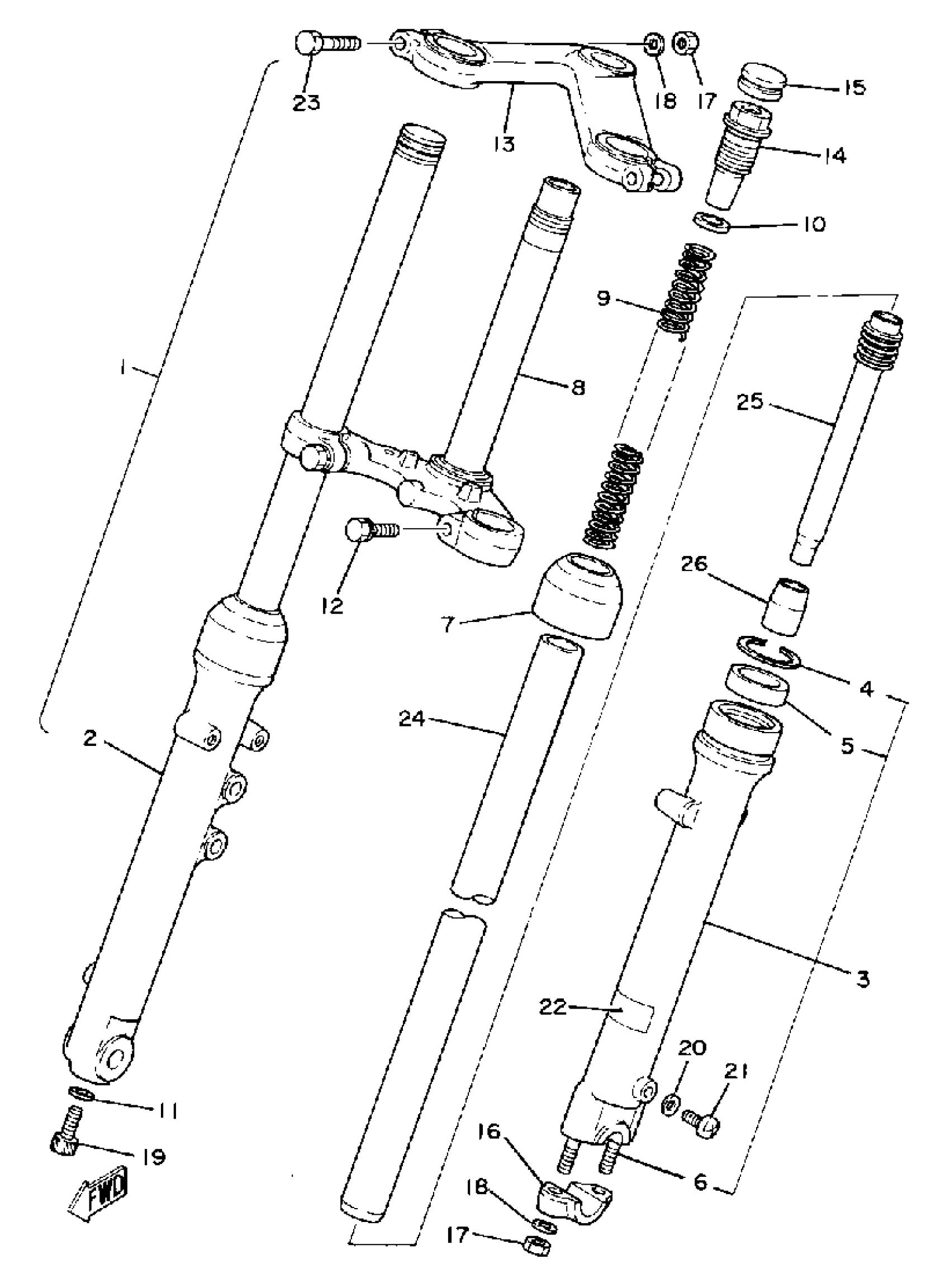

Yamaha TZ125G (TZ125G) 1980 FRONT FORK Diagram

#

Description
Price

1

FRONT FORK ASSEMBLY

(3V3-23101-00-00)

Unavailable

2

TUBE, OUTER 2

(3V3-23136-00-00)

Unavailable

3

TUBE, OUTER 1

(3V3-23126-00-00)

Unavailable

4

RING, SNAP

3V3-23156-00-00

$7.99

5

OIL SEAL

33J-23145-00-00

$23.99

6

BOLT, STUD (278)

90116-08261-00

$4.77

7

SEAL, DUST

535-23144-00-00

Unavailable

8

UNDER BRACKET

(3V3-23340-00-00)

Unavailable

9

SPRING, FRONT FORK

(3V3-23141-00-00)

Unavailable

10

WASHER, SPRING UPR

(3V3-23149-00-00)

Unavailable

11

GASKET

509-23158-L0-00

$16.49

12

BOLT 1

122-23346-02-00

$6.99

13

CROWN, HANDLE

(3V3-23435-00-38)

Unavailable

14

BOLT, CAP

(3V3-23111-00-00)

Unavailable

15

CAP, FRONT FORK

(409-23168-00-00)

Unavailable

16

. HOLDER, AXLE (291-23167-60)

291-23167-61-00

Unavailable

17

NUT, SELF-LOCKING (3Y2)

90185-08089-00

Unavailable

18

.. WASHER, PLATE

92990-08600-00

Unavailable

19

BOLT, HEXAGON SOCKET HEAD

3D8-23181-00-00

Unavailable

20

GASKET, DRAIN PLUG

122-23129-00-00

Unavailable

21

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

22

LABEL, CAUTION 3

(1T3-23197-50-00)

Unavailable

23

BOLT

90101-08263-00

Unavailable

24

INNER TUBE 1

(3V3-23110-00-00)

Unavailable

25

CYLINDER, FRTFRK

(3V3-23170-00-00)

Unavailable

26

SPINDLE, TAPER

(3V3-23173-00-00)

Unavailable
