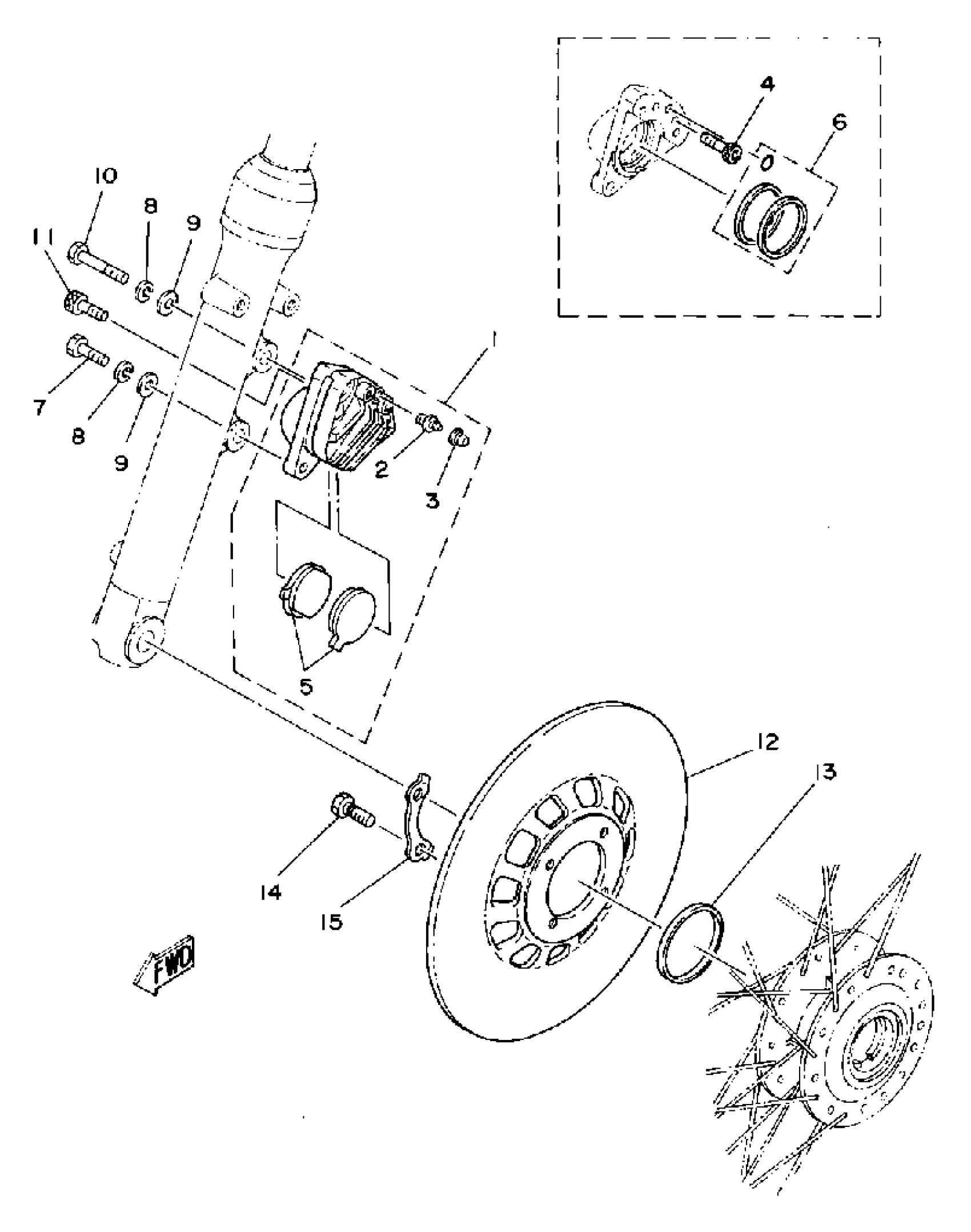

Yamaha TZ125G (TZ125G) 1980 FRONT BRAKE CALIPER Diagram

#

Description
Price

1

CALIPER ASSEMBLY RH

(3V3-25810-00-00)

Unavailable

2

. SCREW, BLEED

306-25824-00-00

Unavailable

3

CAP

306-25825-01-00

$8.14

4

BOLT, SOCKET

91317-10030-00

$6.39

5

BRAKE PAD KIT, FRNT

(3V3-W0045-00-00)

Unavailable

6

. CALIPER SEAL KIT

1X2-W0047-00-00

Unavailable

7

BOLT, FLANGE

90105-10114-00

$10.14

8

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

8

YBS67-10 WASHER, SPRING

92990-10100-00

$2.45

9

WASHER, PLATE

92990-10600-00

$2.57

10

BOLT, CALIPER

(1X2-25818-50-00)

Unavailable

11

BOLT,SOCKET

91317-10040-00

$3.85

12

DISC, BRAKE

(3V3-25831-00-00)

Unavailable

13

RING 1

(3V3-25185-00-00)

Unavailable

14

BOLT (341-25411-00)

90109-08367-00

Unavailable

15

WASHER

(404-25412-00-00)

Unavailable
