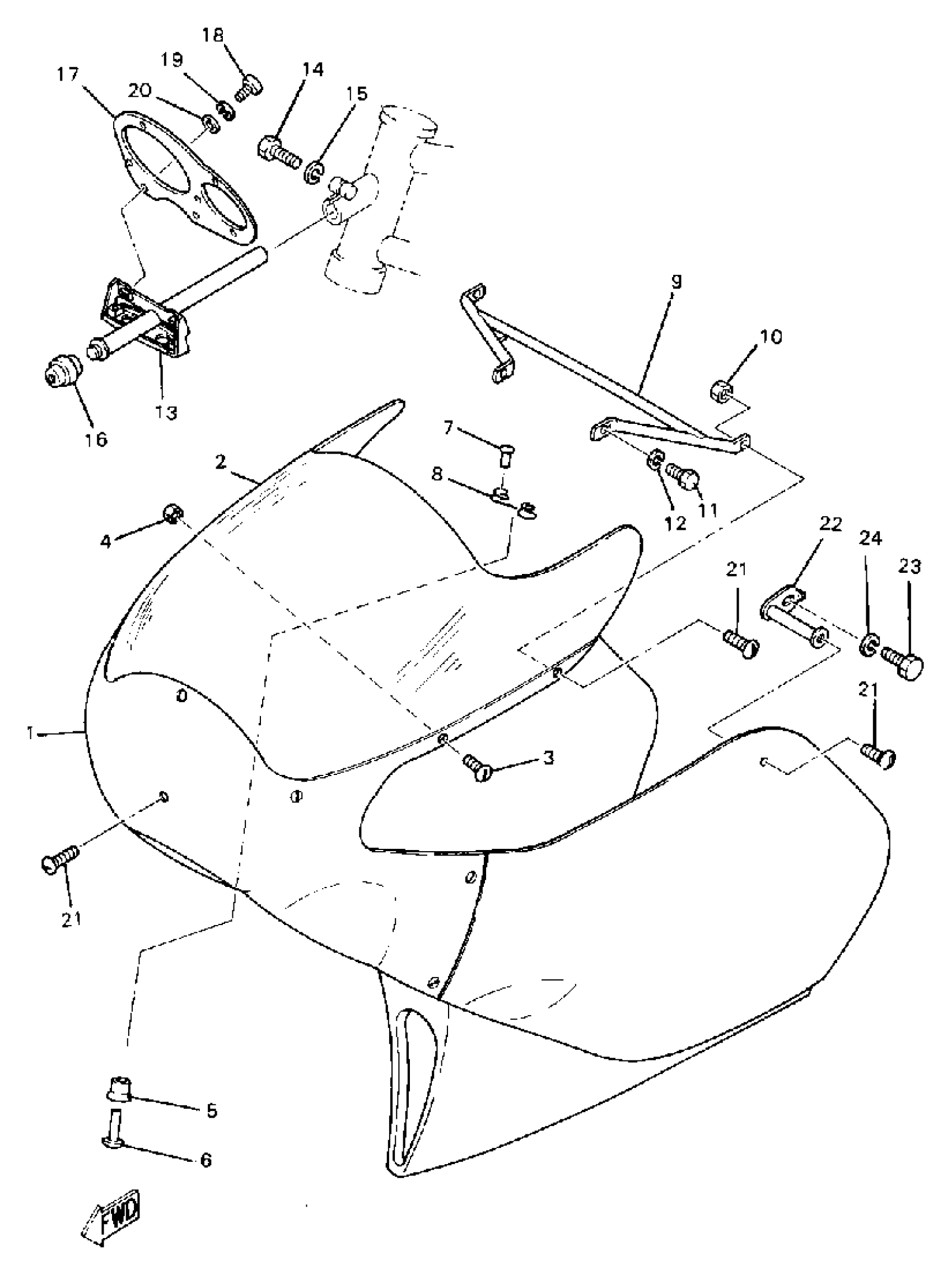

Yamaha TZ125G (TZ125G) 1980 COWLING Diagram
#
Description
Price
1
TZ125 RR FAIR W/WS
(ACC-11110-77-05)
Unavailable
2
TZ125 WNDSCRN ONLY
(ACC-11110-77-06)
Unavailable
3
SCREW, ROUND HEAD
90140-04012-00
Unavailable
4
NUT(6L4)
95380-04700-00
Unavailable
5
. HEAD
240-28386-00-00
Unavailable
7
RIVET, ROUND HEAD
(90260-02002-00)
Unavailable
8
SPRING
(240-28388-00-00)
Unavailable
9
STAY 2
(3V3-28357-00-00)
Unavailable
12
WASHER, SPRING
92995-06100-00
Unavailable
13
STAY 1
(3V3-28356-01-00)
Unavailable
16
DAMPER
240-28371-00-33
Unavailable
17
STAY 3
(3V3-28358-00-00)
Unavailable
18
SCREW, PAN HEAD(3TJ)
98507-06016-00
Unavailable
19
WASHER, SPRING
92907-06100-00
Unavailable
20
WASHER, PLATE 8221447500
90201-06057-00
Unavailable
21
SCREW, ROUND HEAD(55K)
90150-06021-00
Unavailable
22
STAY 2
(3V3-28359-00-00)
Unavailable
23
BOLT(62E)
97013-08012-00
Unavailable
24
WASHER(JN5)
92907-08100-00
Unavailable
