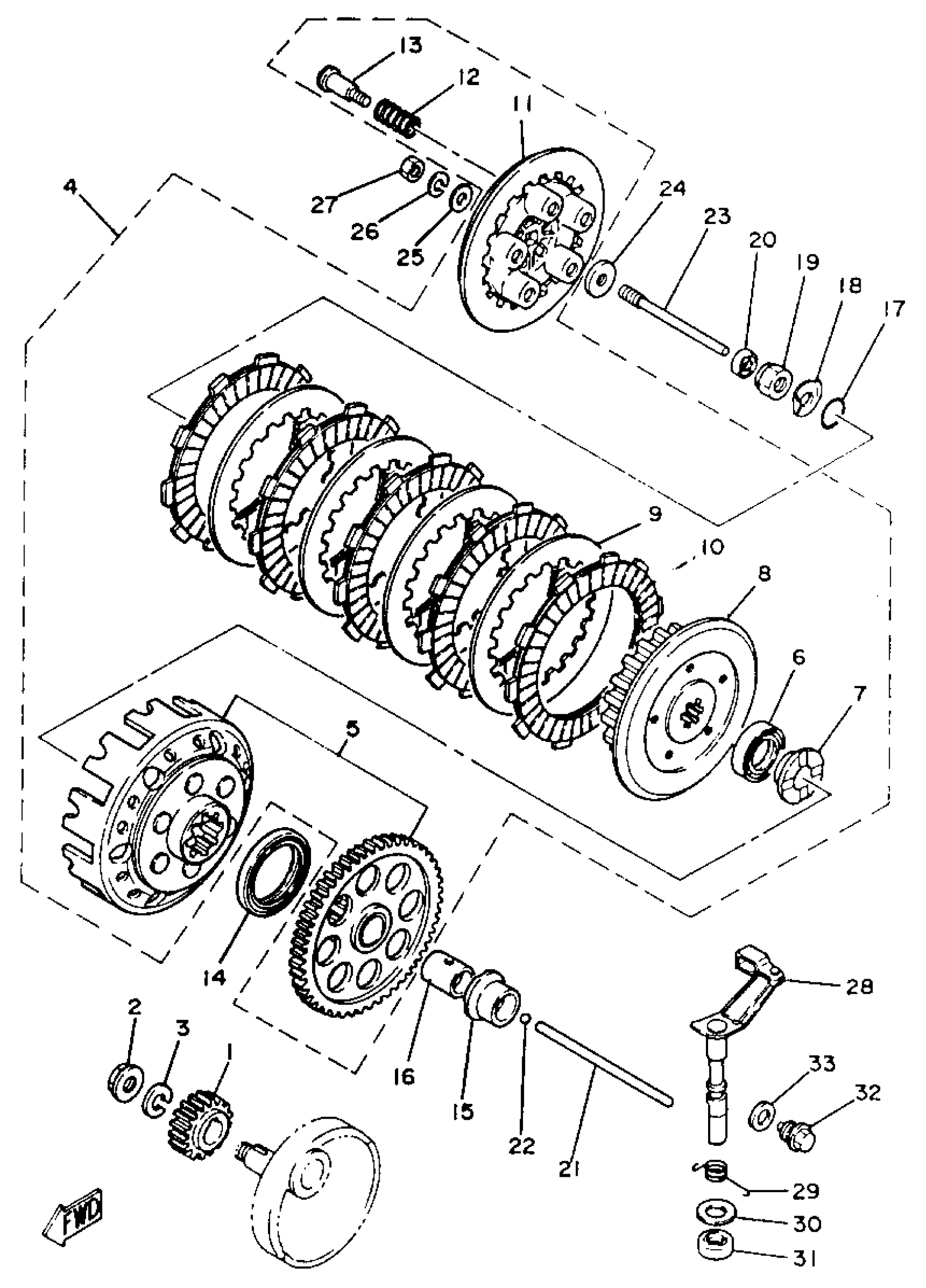

Yamaha TZ125G (TZ125G) 1980 CLUTCH Diagram

#

Description
Price

1

GEAR, PRI DRIVE

(3V3-16111-00-00)

Unavailable

2

NUT(1EE)

90179-12659-00

$8.49

3

WASHER, SPRING (1W1)

90204-12007-00

$8.49

4

CLUTCH ASSEMBLY

(3V3-16301-00-00)

Unavailable

5

PRI DRVN GEAR

(3V3-16150-00-00)

Unavailable

6

OIL SEAL(7EG)

93102-25360-00

Unavailable

7

SPACER 2

(3V3-16182-00-00)

Unavailable

8

BOSS, CLUTCH

(3V3-16371-00-00)

Unavailable

9

PLATE, CLUTCH 2

137-16325-80-00

$16.49

10

. PLATE, FRICTION

3V3-16321-00-00

Unavailable

11

PLATE, PRESSURE 1

(3V3-16351-00-00)

Unavailable

12

SPRING COMPRESSION132163330000

90501-20125-00

$8.49

13

SCREW, SPECL SHAPE

(90149-05147-00)

Unavailable

14

OIL SEAL (3V3)

93101-45091-00

Unavailable

15

SPACER 3

(3V3-16183-00-00)

Unavailable

16

SPACER 1

(3V3-16181-00-00)

Unavailable

17

O-RING (256)

93210-15151-00

Unavailable

18

WASHER, LOCK (21T)

90215-12211-00

Unavailable

19

NUT, SPEC''L SHAPE

(90179-12296-00)

Unavailable

20

OIL SEAL, SO-TYPE

93104-05065-00

Unavailable

21

ROD, PUSH 2

1W1-16357-00-00

Unavailable

22

BALL

93503-16003-00

Unavailable

23

ROD, PUSH 1

(3V3-16356-00-00)

Unavailable

24

PLATE, PUSH

(3V3-16358-00-00)

Unavailable

25

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

26

WASHER, SPRING

92995-06100-00

Unavailable

27

NUT, HEXAGON

95380-06600-00

Unavailable

28

PUSH LEVER ASSEMBLY

(3V3-16380-00-00)

Unavailable

29

SPRING, TORSION (1W1)

90508-20345-00

Unavailable

30

WASHER PLATE 150251530000

90201-14217-00

Unavailable

31

OIL SEAL (14X25X5-2H7)

93104-14059-00

Unavailable

32

SCREW, SPEC''L SHAPE

90149-12140-00

Unavailable

33

GASKET (3JD1)

90430-12207-00

Unavailable
