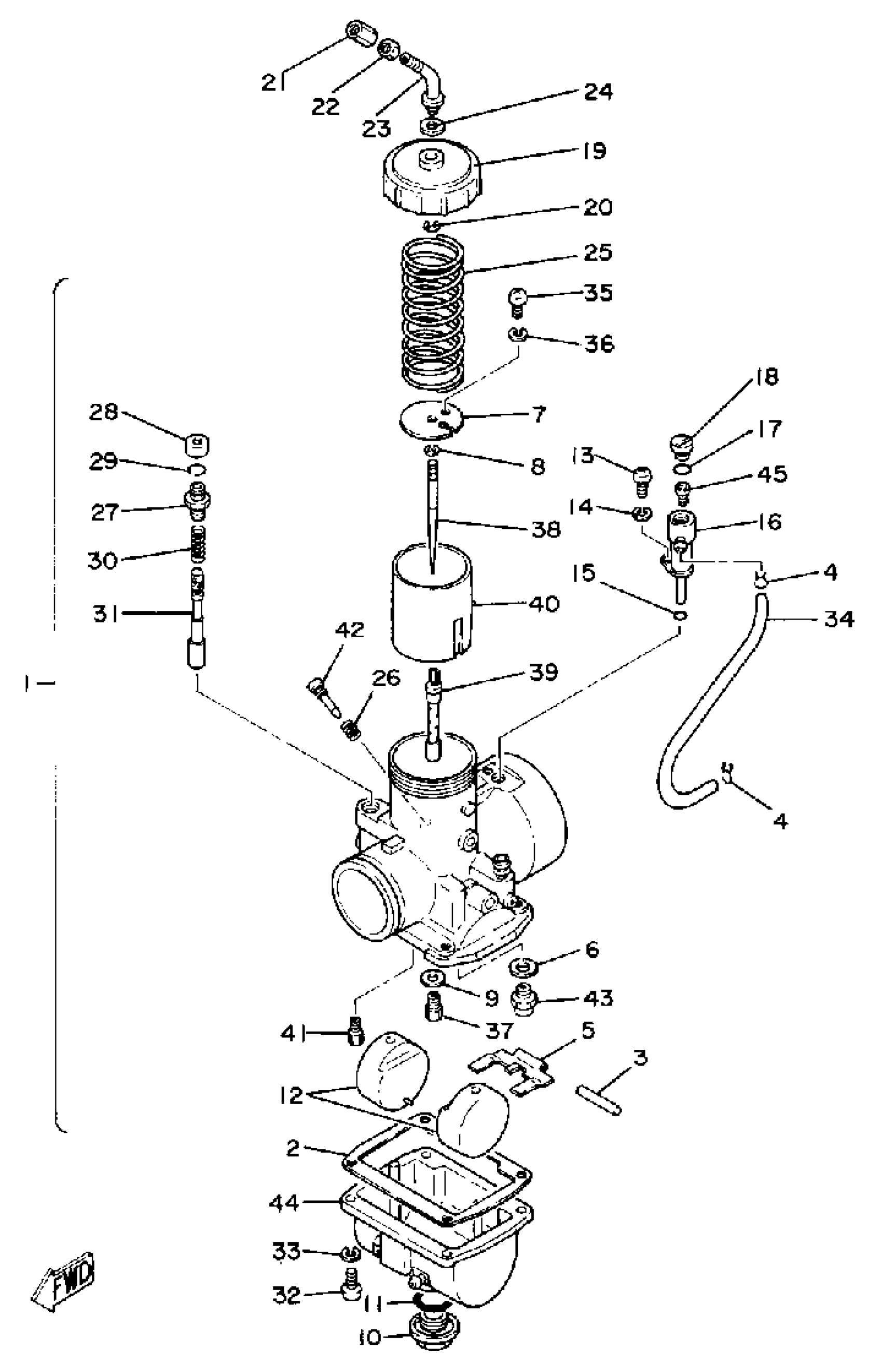

Yamaha TZ125G (TZ125G) 1980 CARBURETOR Diagram

#

Description
Price

1

CARBURETOR ASSEMBLY 1

(3V3-14101-00-00)

Unavailable

2

GASKET, FLOAT CHAMBER

483-14184-00-00

$22.99

3

PIN, FLOAT

537-14186-00-00

$7.99

4

CLIP, PIPE

8A7-14139-00-00

$8.99

5

ARM, FLOAT

(239-14187-00-00)

Unavailable

6

WASHER,VALVE SEAT

239-14195-00-00

Unavailable

7

. SEAT, SPRING

3V3-14136-00-00

Unavailable

8

CLIP

3FA-14137-00-00

$7.99

9

WASHER,MAIN JET

137-14153-00-00

$7.99

10

PLUG, SCREW

500-14115-00-00

$29.99

11

O-RING (541)

558-14147-00-00

$9.99

12

. FLOAT

310-14185-00-00

Unavailable

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

O-RING

214-14147-00-00

$7.99

16

. HOLDER, NOZZLE

1X2-14244-00-00

Unavailable

17

O-RING

36Y-14147-00-00

Unavailable

18

. PLUG, SCREW

3G2-14115-00-00

Unavailable

19

TOP, MIXING CHAMBER

(409-14158-00-00)

Unavailable

20

CLIP

363-14137-00-00

Unavailable

21

CABLE ADJUST SCREW SET

17L-14106-00-00

Unavailable

22

NUT, WIRE ADJUSTING

127-14161-00-00

Unavailable

23

. GUIDE, CABLE

363-14155-00-00

Unavailable

24

GASKET

363-14198-00-00

Unavailable

25

. SPRING, THROTTLE VALVE

363-14131-00-00

Unavailable

26

SPRING, AIR ADJUSTING

127-14134-00-00

Unavailable

27

CAP, PLUNGER

152-14174-00-00

Unavailable

28

. COVER, PLUNGER CAP

637-14173-00-00

Unavailable

29

CLIP, PLUNGER

353-14138-00-00

Unavailable

30

SPRING, PLUNGER

156-14135-00-00

Unavailable

31

PLUNGER, STARTER

(1G8-14171-00-00)

Unavailable

32

SCREW, PAN HEAD(6B0)

97885-05016-00

Unavailable

33

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

34

. HOSE

3V3-14987-00-00

Unavailable

35

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

36

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

37

JET, MAIN #260

137-14143-52-00

Unavailable

37

JET, MAIN #270

137-14143-54-A1

Unavailable

37

JET, MAIN #280

137-14143-56-A0

Unavailable

37

JET, MAIN #290

137-14143-58-A1

Unavailable

37

JET, MAIN #300

137-14143-60-A0

Unavailable

37

JET, MAIN #320

137-14143-64-00

Unavailable

37

JET, MAIN #330

137-14143-66-A1

Unavailable

37

JET,MAIN #340

137-14143-68-00

Unavailable

37

JET,MAIN #350

137-14143-70-00

Unavailable

37

JET,MAIN #360

137-14143-72-00

Unavailable

37

UNAVAILABLE IN PRICE BOOK (#310)

137-14343-62-00

Unavailable

38

. NEEDLE

239-14116-22-00

Unavailable

39

NOZZLE, MAIN

(239-14141-30-00)

Unavailable

40

VALVE, THROTTLE 1

(3V3-14112-20-00)

Unavailable

41

. JET, PILOT #60

193-14142-60-00

Unavailable

42

AIR SCREW SET

23X-14104-00-00

Unavailable

43

NEEDLE VALVE SET

24X-14107-33-00

Unavailable

44

BODY, FLOAT CHMBR 1

(3V3-14181-16-00)

Unavailable

45

. JET, POWER (#50)

3G2-14231-10-00

Unavailable

45

JET, MAIN (# 55)

3G2-14231-11-00

Unavailable

45

JET, MAIN (# 60)

3G2-14231-12-00

Unavailable

45

JET, MAIN (# 65)

3G2-14231-13-00

Unavailable

45

JET, MAIN (# 70)

3G2-14231-14-00

Unavailable
