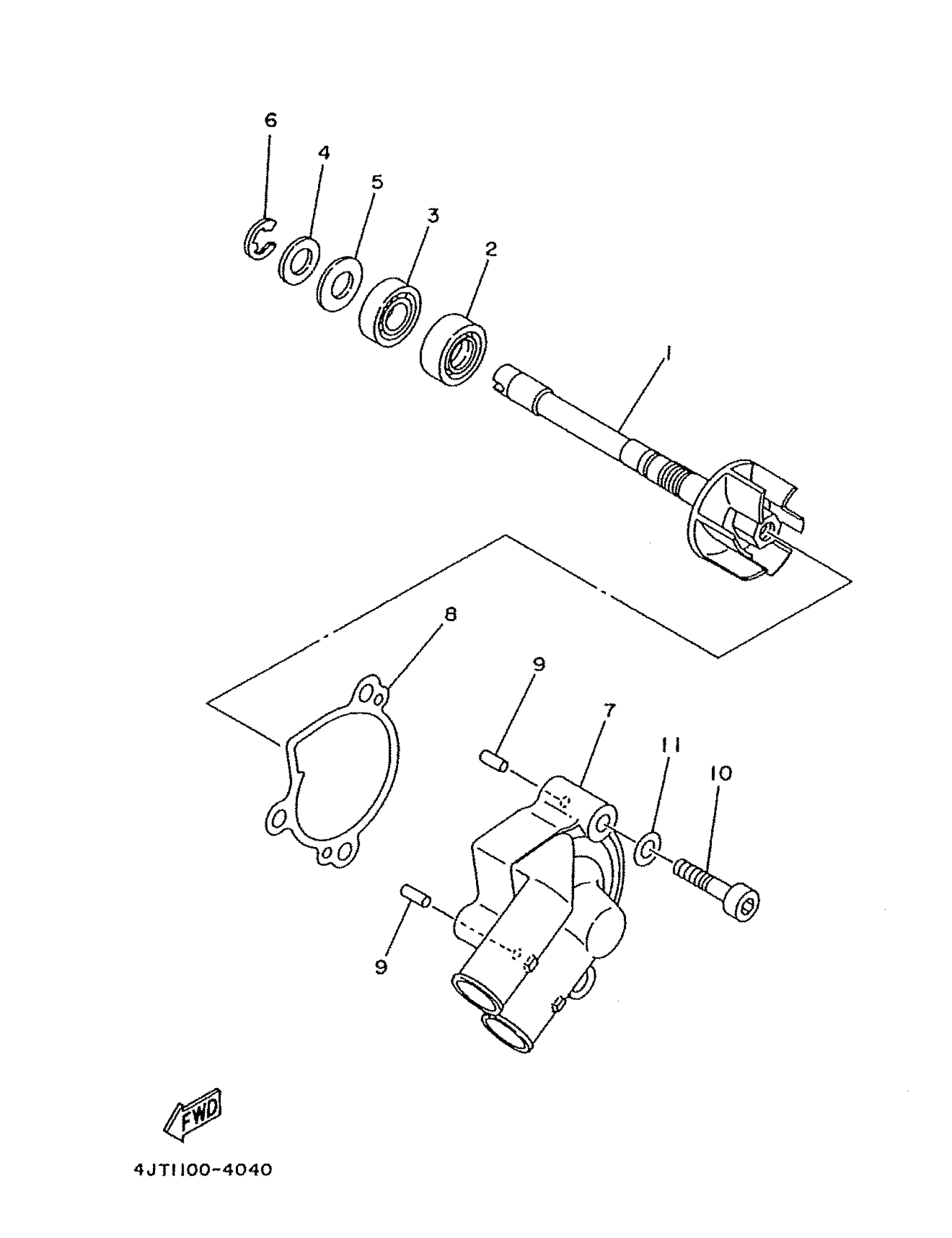

Yamaha TZ125 (TZ125) 4JT6 1999 WATER PUMP Diagram

#

Description
Price

1

IMPELLER SHAFT ASSY

4JT-12450-00-00

Unavailable

2

OIL SEAL (4V2)

93103-12119-00

Unavailable

3

BEARING(4JT)

93306-90105-00

$37.30

4

WASHER, PLATE(3YL)

90201-114P2-00

$3.32

5

WASHER, PLATE

90201-112U0-00

$3.76

6

CIRCLIP(24H)

99009-11400-00

$5.75

7

COVER, HOUSING

4JT-12422-00-00

Unavailable

8

GASKET, HOUSING COVER 2

4JT-12428-00-00

Unavailable

9

PIN,DOWEL (603)

93604-10011-00

$4.89

10

BOLT,SOCKET

91317-06035-00

$3.27

11

GASKET (4V2)

90430-06166-00

$3.22
