Description

Price

1

BRG, TAPERED ROLLER (409)

93332-00001-00

$58.99

2

BEARING(4ES)

93332-00079-00

$69.99

3

NUT(3XP)

90179-25615-00

$26.99

4

COVER, BALL RACE 1

1J7-23415-00-00

$6.99

5

NUT 1

1RK-22251-00-00

$31.99

6

WASHER, PLATE (8L8)

90201-225A4-00

$9.49

7

FENDER, INNER

4JT-21552-00-00

Unavailable

8

SCREW, BINDING

98907-06010-00

$1.65

9

HANDLEBAR SHIMMY DAMPER ASSY

4JT-23490-10-00

Unavailable

10

BOLT, BUTTON

92017-08025-00

$8.49

11

WASHER, PLATE(J40)

90201-08455-00

$4.82

12

CLIP(4BP)

90468-16192-00

$9.49

13

PIN, CLEVIS (2A6)

91701-08038-00

$4.14

14

STAY, DAMPER

4JT-23495-00-00

Unavailable

15

BOLT,SOCKET

91317-06025-00

$5.60

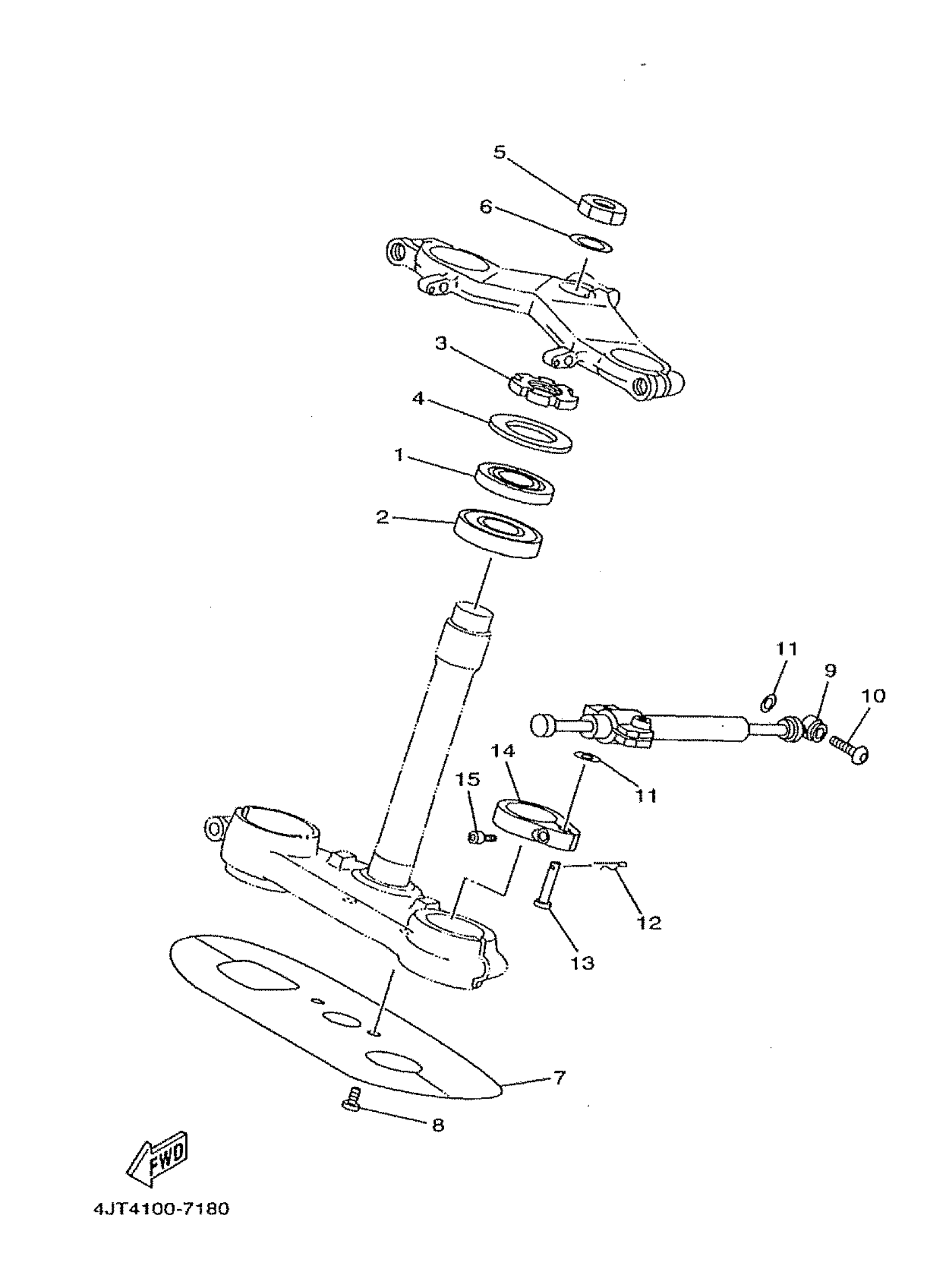

Yamaha TZ125 (TZ125) 4JT6 1999 STEERING Diagram

BRG, TAPERED ROLLER (409)

BEARING(4ES)

NUT(3XP)

COVER, BALL RACE 1

NUT 1

WASHER, PLATE (8L8)

FENDER, INNER

SCREW, BINDING

HANDLEBAR SHIMMY DAMPER ASSY

BOLT, BUTTON

WASHER, PLATE(J40)

CLIP(4BP)

PIN, CLEVIS (2A6)

STAY, DAMPER

BOLT,SOCKET
