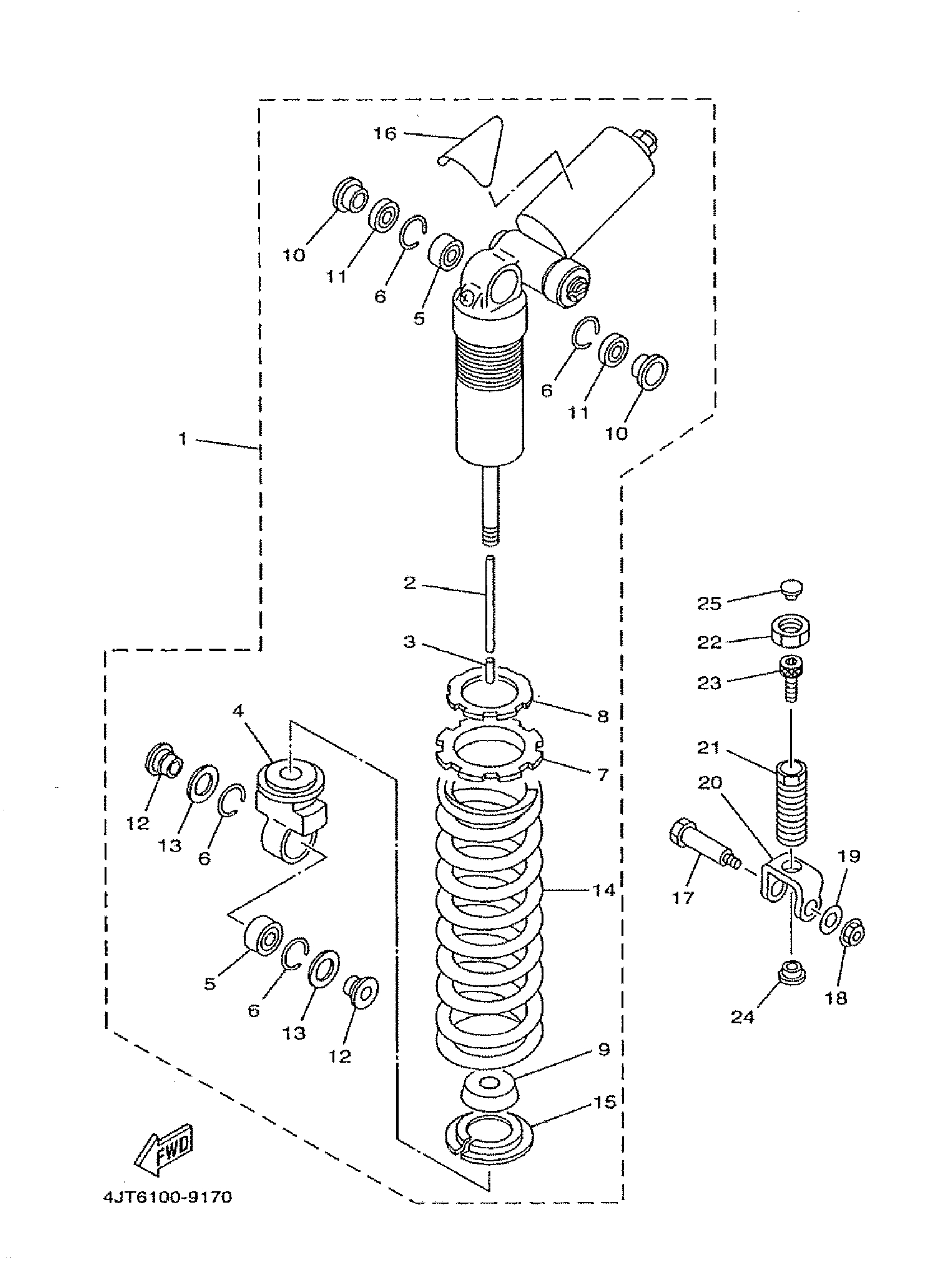

Yamaha TZ125 (TZ125) 4JT6 1999 REAR SUSPENSION Diagram

#

Description
Price

1

SHOCK ABSORBER ASSY, REAR

4JT-22210-73-00

Unavailable

2

ROD, PUSH

4DP-22489-00-00

Unavailable

3

. PIN, DOWEL

93605-20204-00

Unavailable

4

BRACKET, UPPER

4JT-22219-10-00

Unavailable

5

BEARING(4JT)

93399-999T4-00

Unavailable

6

CIRCLIP (23X)

93440-30113-00

$1.70

7

SEAT, SPRING LOWER

1KH-22223-00-00

Unavailable

8

RING, COVER

1RK-22215-00-00

$24.99

9

BUMP, STOP

3AK-22493-00-00

$21.99

10

COLLAR, DISTANCE

3YL-22253-00-00

Unavailable

11

COVER

23X-22211-00-00

$11.99

12

COLLAR, DISTANCE

4JT-22253-41-00

Unavailable

13

COVER

4DP-22211-00-00

Unavailable

14

SPRING

4JT-22212-41-00

Unavailable

15

GUIDE, SPRING 1

3P6-22214-10-00

$17.49

16

. LABEL, WARNING

4AA-22259-00-00

Unavailable

17

BOLT

90101-10709-00

Unavailable

18

NUT, SELF-LOCKING(JN5)

95607-10200-00

Unavailable

19

WASHER, PLATE(55K)

90201-127J6-00

Unavailable

20

BRACKET, UPPER

4JT-22219-00-00

Unavailable

21

ADJUSTER

4JT-22239-00-00

Unavailable

22

NUT 1

1RK-22251-00-00

Unavailable

23

BOLT

91317-10016-00

Unavailable

24

NUT

3AK-22252-00-00

Unavailable

25

GROMMET (420)

90480-14153-00

Unavailable
