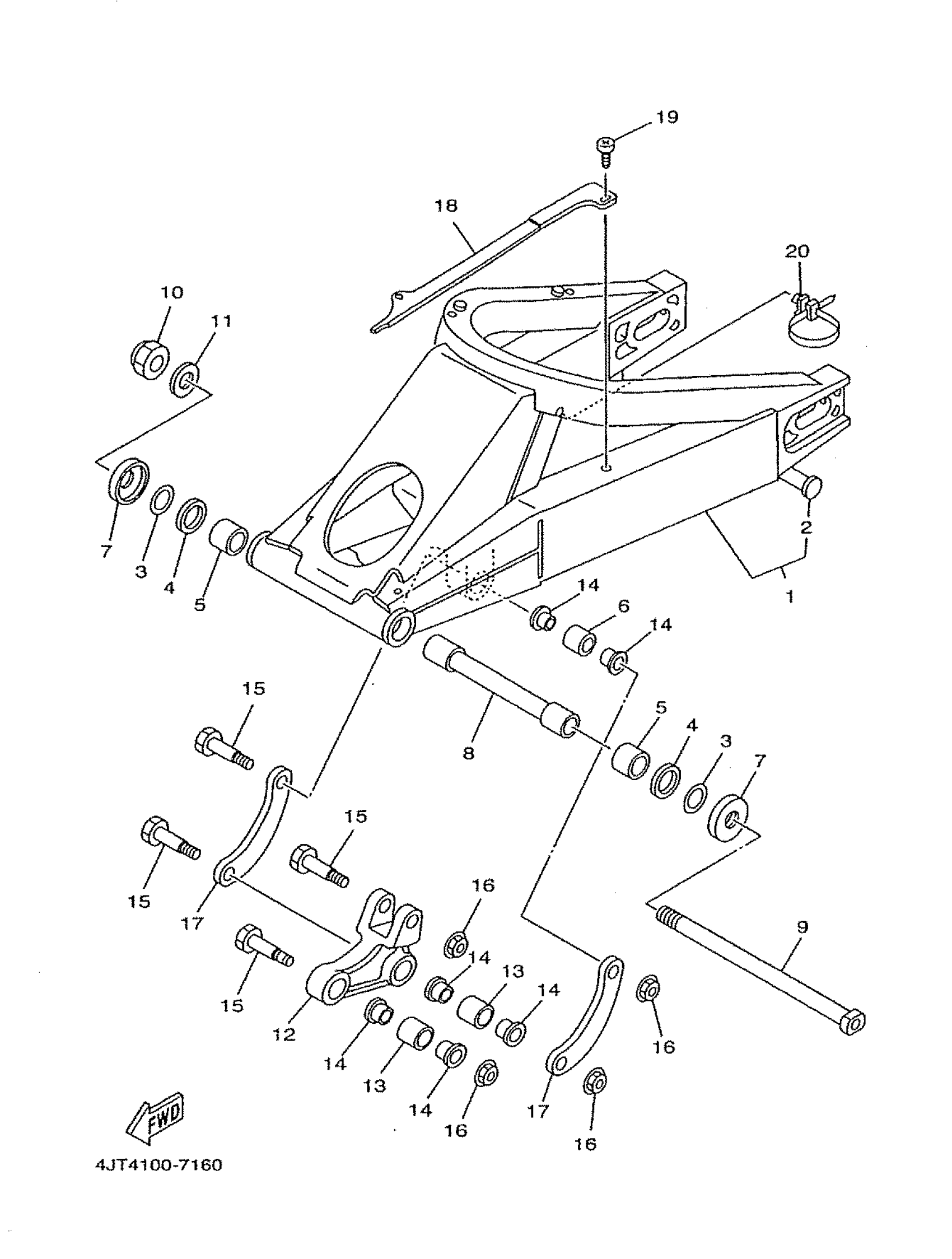

Yamaha TZ125 (TZ125) 4JT6 1999 REAR ARM Diagram
#
Description
Price
1
REAR ARM COMP.
4JT-22110-30-00
Unavailable
2
. HOOK
4JT-2216F-10-00
Unavailable
3
SHIM (0.3T)
156-22127-00-00
Unavailable
6
BEARING(4DP)
93320-21507-00
Unavailable
8
BUSH
4JT-22184-00-00
Unavailable
9
SHAFT, PIVOT
1LX-22141-00-00
Unavailable
11
WASHER
92907-16200-00
Unavailable
12
ARM, RELAY
4JT-2217A-10-00
Unavailable
13
BEARING(4DP)
93320-21507-00
Unavailable
14
COLLAR(4DP)
90387-124Y8-00
Unavailable
15
BOLT
90101-10709-00
Unavailable
16
NUT, SELF-LOCKING(JN5)
95607-10200-00
Unavailable
17
ROD, CONNECTING 1
4JT-2217F-10-00
Unavailable
18
SEAL, GUARD
4JT-22151-00-00
Unavailable
19
SCREW, TRUSS TAP.
97707-50012-00
Unavailable
20
CLAMP(2TV)
90464-10112-00
Unavailable
