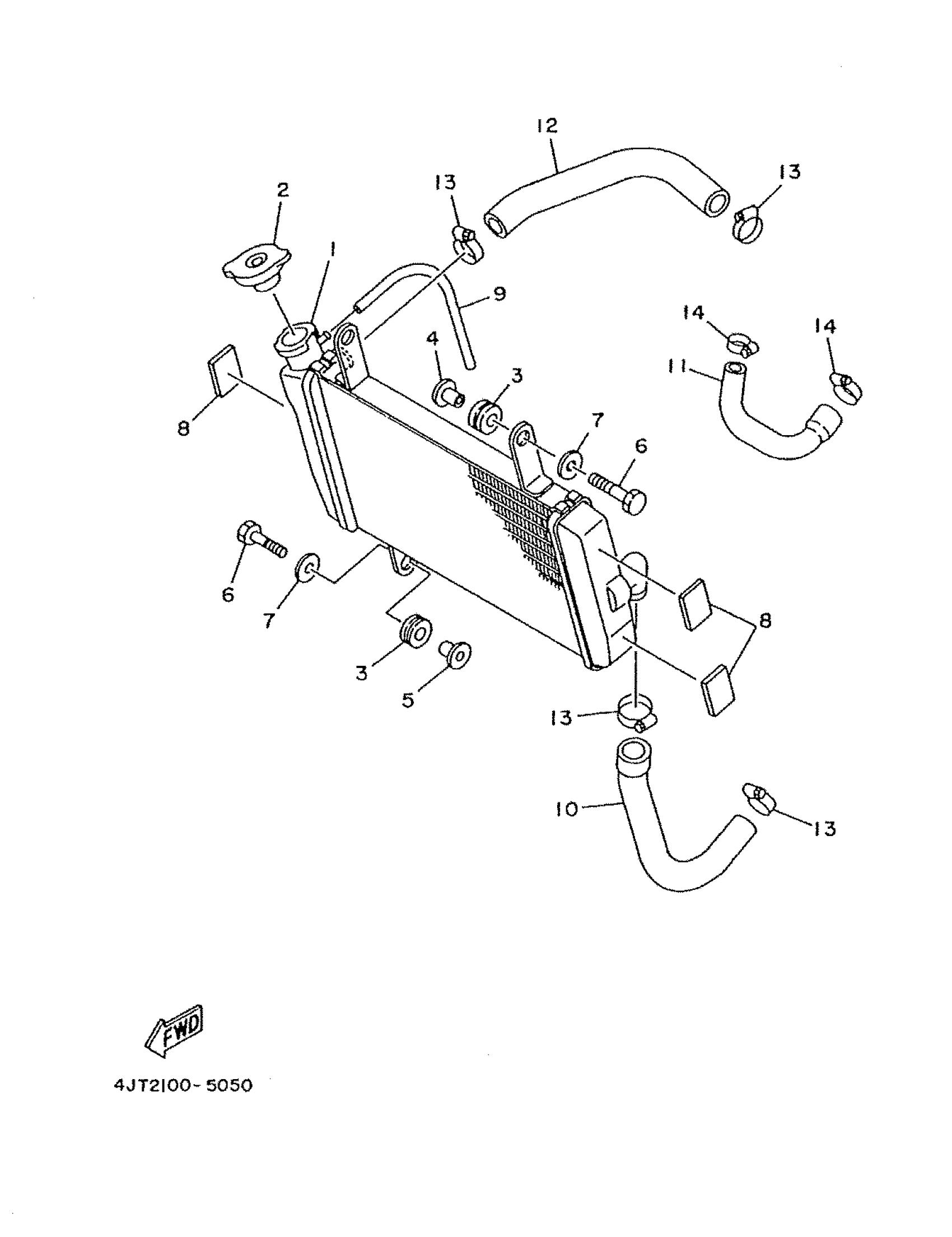

Yamaha TZ125 (TZ125) 4JT6 1999 RADIATOR HOSE Diagram

#

Description
Price

1

RADIATOR ASSY

4JT-12461-10-00

Unavailable

2

CAP, RADIATOR

4FL-12462-00-00

$62.99

3

GROMMET (29L)

90480-15363-00

$8.49

4

COLLAR

90387-06166-00

$12.49

5

COLLAR

90387-06158-00

$8.49

6

BOLT, SMALL FLANGE

95027-06030-00

$3.98

7

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

8

DAMPER

5H0-8235Y-M0-00

$6.99

9

HOSE (L420)

90445-092K1-00

$12.49

10

PIPE 2

4JT-12482-00-00

Unavailable

11

PIPE 3

4JT-12483-00-00

Unavailable

12

PIPE 4

4JT-12484-00-00

Unavailable

13

CLAMP

90460-20190-00

Unavailable

14

HOSE CLAMP ASSY(4JT)

90450-28073-00

$12.49
