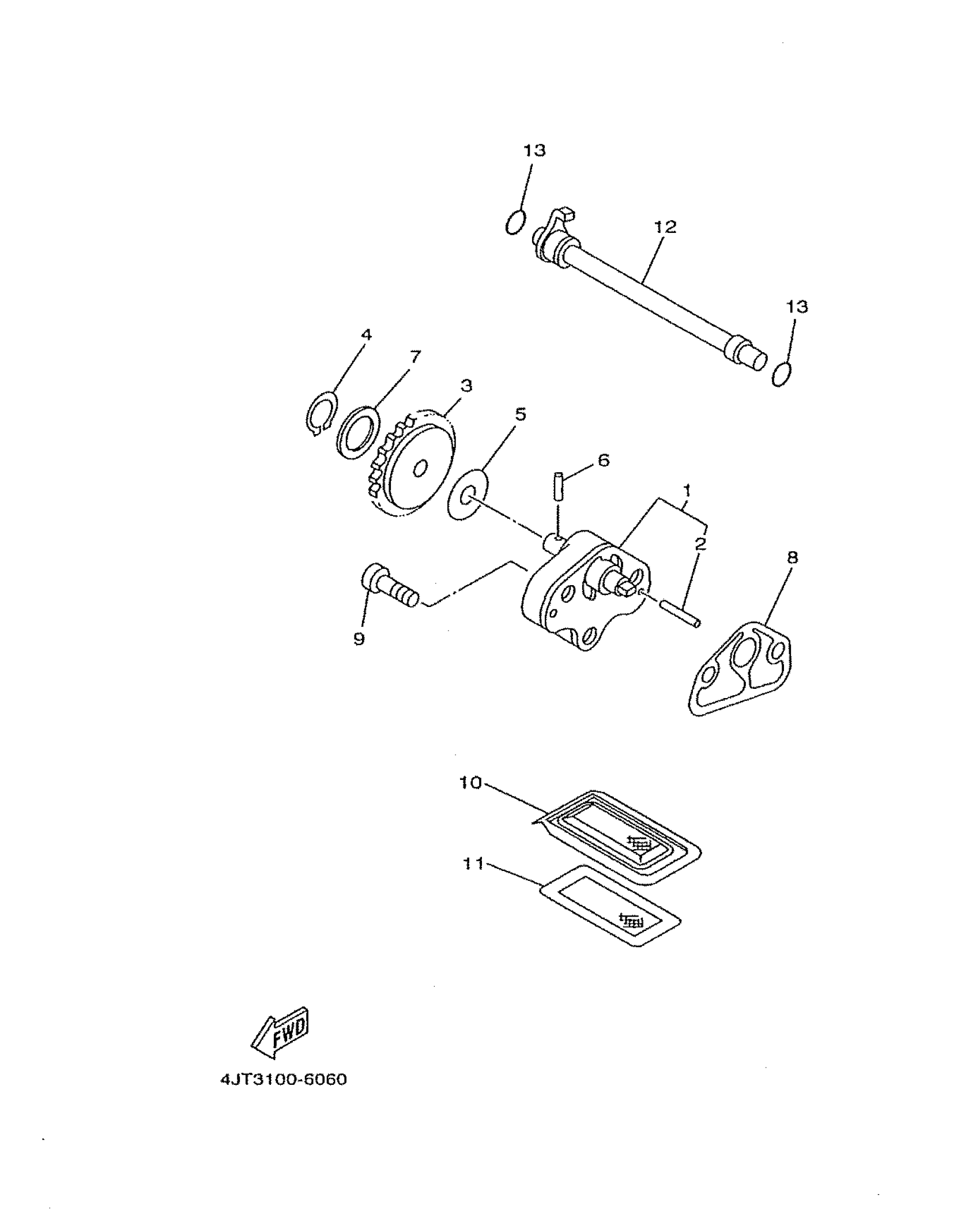

Yamaha TZ125 (TZ125) 4JT6 1999 OIL PUMP Diagram

#

Description
Price

1

OIL PUMP ASSY

4JT-13300-01-00

Unavailable

2

PIN, DOWEL

93603-07073-00

$5.45

3

GEAR, PUMP DRIVEN

4JT-13325-00-00

Unavailable

4

CIRCLIP(10Y)

99009-12400-00

$2.87

5

WASHER, PLATE

90201-070J2-00

Unavailable

6

PIN, DOWEL

93602-12247-00

Unavailable

7

WASHER, PLATE (4N0)

90201-126A7-00

$5.86

8

GASKET, PUMP COVER

22F-13329-01-00

$6.79

9

SCREW, FLAT FILLISTER

90155-06007-00

$0.41

10

STRAINER, OIL

3XV-13411-00-00

Unavailable

11

STRAINER 2

3XV-13421-00-00

Unavailable

12

PIPE, DELIVERY 1

4JT-13161-00-00

Unavailable

13

O-RING (26H)

93210-06632-00

$6.22
