Description

Price

1

CAST WHEEL, FRONT

4JT-25168-01-UA

Unavailable

2

BEARING(8AB)

93306-00444-00

$41.99

3

SPACER, BEARING

4JT-25117-00-00

Unavailable

4

FLANGE, SPACER 2

5Y9-25316-00-00

Unavailable

5

TIRE (90/70-R17 KR149)

94109-1710J-00

Unavailable

6

VALVE, RIM (31A)

93900-00031-00

$16.99

7

BALANCER, WHEEL

5MT-25398-00-00

$17.49

7

BALANCER, WHEEL

5MT-25398-10-00

$17.49

7

BALANCER, WHEEL

5MT-25398-20-00

Unavailable

8

AXLE, WHEEL

4JT-25181-00-00

Unavailable

9

COLLAR, WHEEL

4JT-25183-00-00

Unavailable

10

WASHER

92990-14600-00

Unavailable

11

NUT, U(4JT)

95617-14100-00

Unavailable

12

FRONT FENDER COMP.

4JT-21510-10-00

Unavailable

13

BOLT, FLANGE(4DU)

95027-06014-00

$8.49

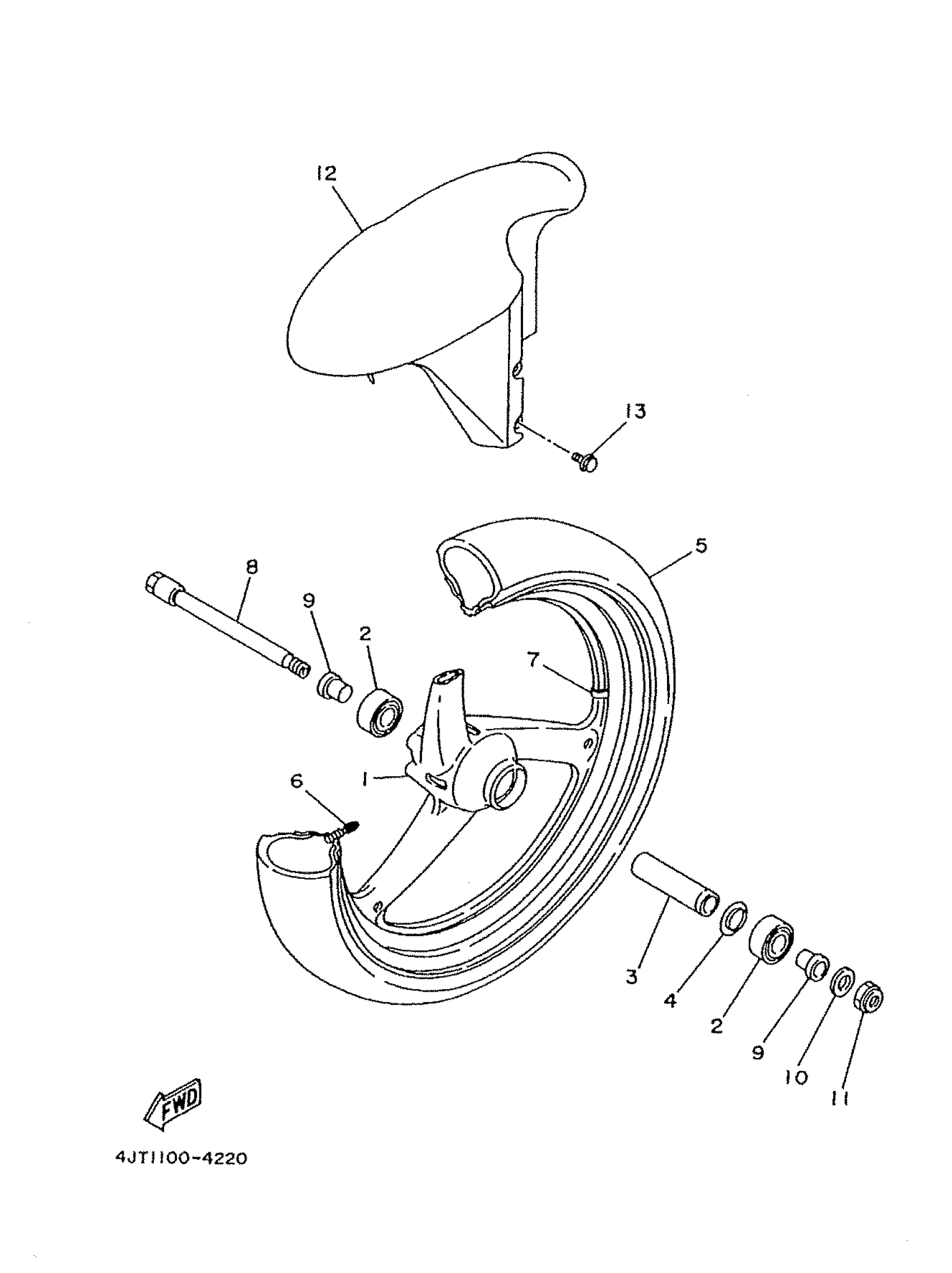

Yamaha TZ125 (TZ125) 4JT6 1999 FRONT WHEEL Diagram

CAST WHEEL, FRONT

BEARING(8AB)

SPACER, BEARING

FLANGE, SPACER 2

TIRE (90/70-R17 KR149)

VALVE, RIM (31A)

BALANCER, WHEEL

BALANCER, WHEEL

BALANCER, WHEEL

AXLE, WHEEL

COLLAR, WHEEL

WASHER

NUT, U(4JT)

FRONT FENDER COMP.

BOLT, FLANGE(4DU)
