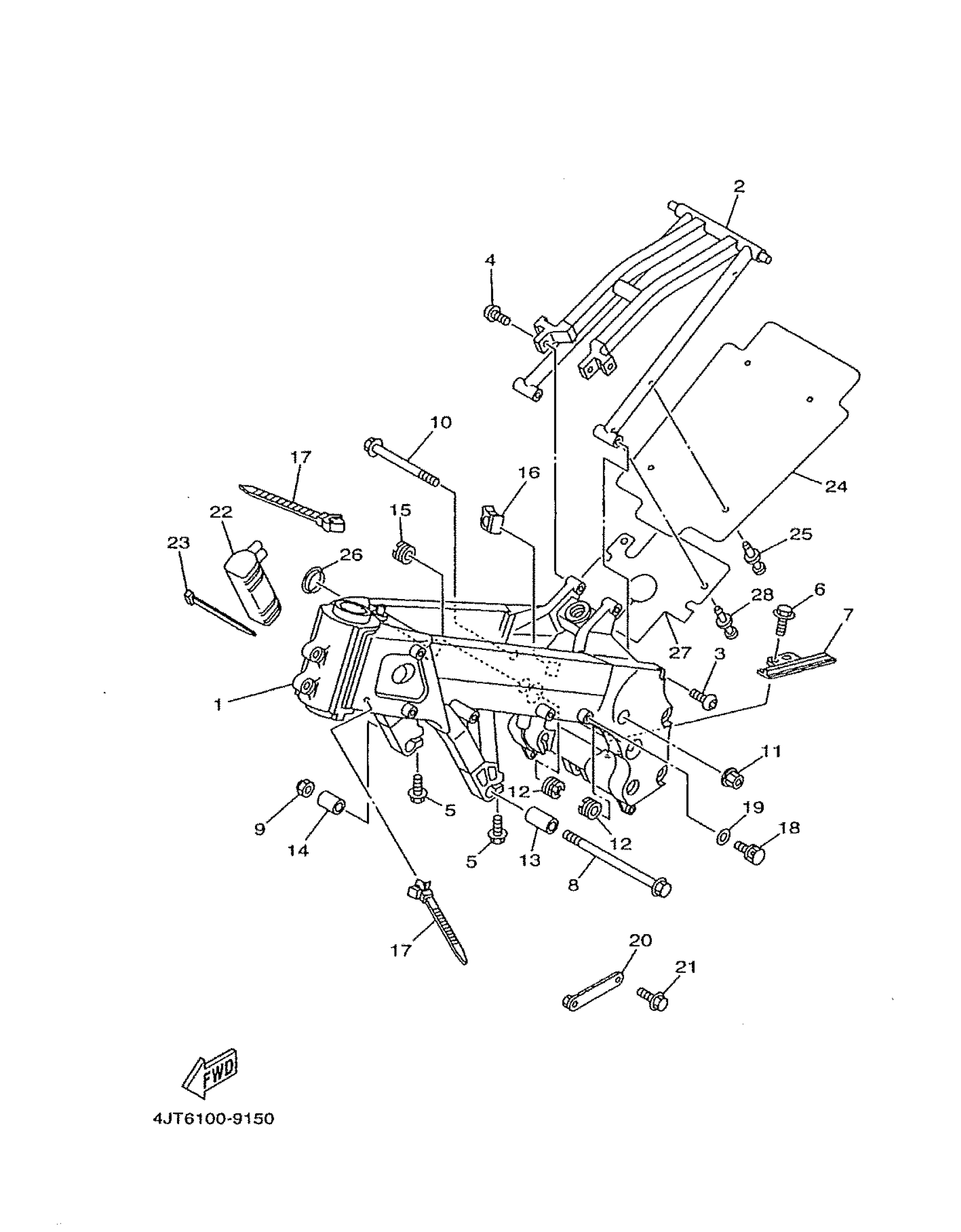

Yamaha TZ125 (TZ125) 4JT6 1999 FRAME Diagram
#
Description
Price
1
FRAME COMP.
4JT-21110-31-00
Unavailable
2
REAR FRAME COMP.
4JT-21190-11-00
Unavailable
5
BOLT(3AK)
90109-067E6-00
Unavailable
7
SEAL, GUARD
4TW-22151-00-00
Unavailable
8
BOLT, WASHER BASED
90105-10726-00
Unavailable
11
NUT
90179-10696-00
Unavailable
12
BOLT, ENGINE ADJUSTING
4JT-21495-10-00
Unavailable
13
SLEEVE, 1
4JT-21117-00-00
Unavailable
14
SLEEVE, 2
4JT-21118-00-00
Unavailable
15
BOLT, ENGINE ADJUSTING
4JT-21495-00-00
Unavailable
16
CLAMP(3YL)
90464-25160-00
Unavailable
17
CLAMP(2TV)
90464-10112-00
Unavailable
18
PLUG, WATER CHECK (383)
90338-06041-00
Unavailable
19
GASKET (4V2)
90430-06166-00
Unavailable
20
STAY
4JT-2117A-00-00
Unavailable
21
BOLT, WASHER BASED(JA9)
90105-06696-00
Unavailable
22
TANK, OIL
3YL-21751-00-00
Unavailable
23
CLAMP(MF1)
90464-15152-00
Unavailable
24
GUARD, MUD
4JT-21629-11-00
Unavailable
25
RIVET(52W)
90269-05049-00
Unavailable
26
PROTECTOR
4JT-2117G-00-00
Unavailable
27
GUARD, FLAP
4JT-21642-20-00
Unavailable
28
RIVET(52W)
90269-05049-00
Unavailable
