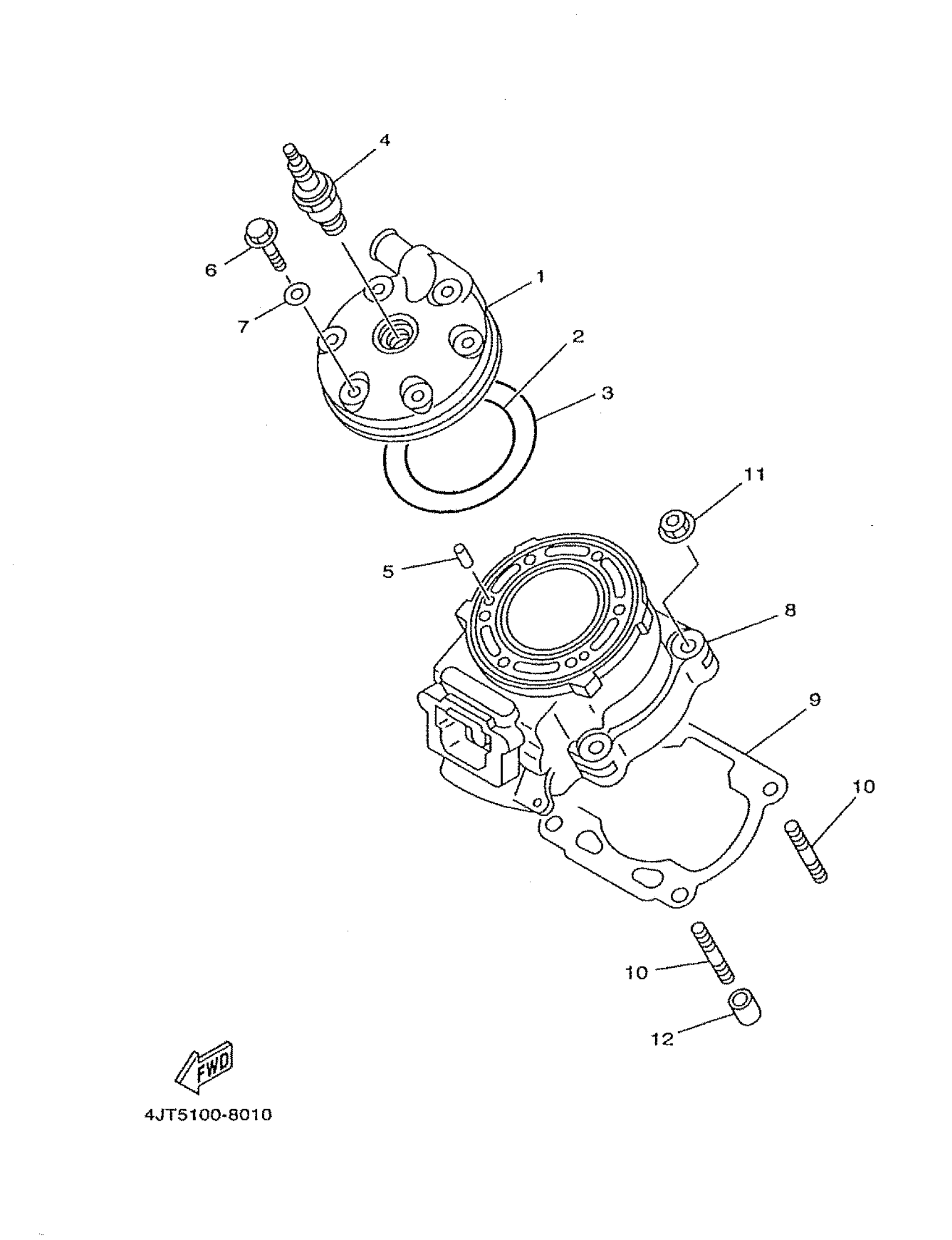

Yamaha TZ125 (TZ125) 4JT6 1999 CYLINDER HEAD Diagram

#

Description
Price

1

HEAD, CYLINDER 1

4JT-11111-30-00

Unavailable

2

O-RING (4U8)

93210-63442-00

$5.39

3

O-RING(85G)

93210-88696-00

$11.48

4

PLUG, SPARK (R6385-105P)

94702-00373-00

Unavailable

5

PIN, DOWEL (278)

93604-08071-00

$5.75

6

BOLT, WASHER BASED

90105-063A0-00

$2.21

7

GASKET (4V2)

90430-06166-00

$3.22

8

CYLINDER 1

4JT-11311-20-00

Unavailable

9

GASKET, CYLINDER

4JT-11351-02-00

$18.76

9

GASKET, CYLINDER

4JT-11351-12-00

$18.76

9

GASKET, CYLINDER (0.6T)

4JT-11351-22-00

Unavailable

10

BOLT, STUD (24X)

90116-08409-00

$3.76

11

NUT, FLANGE(JN5)

95707-08500-00

$1.40

12

PIN, DOWEL(3VD)

99530-10114-00

$2.13
