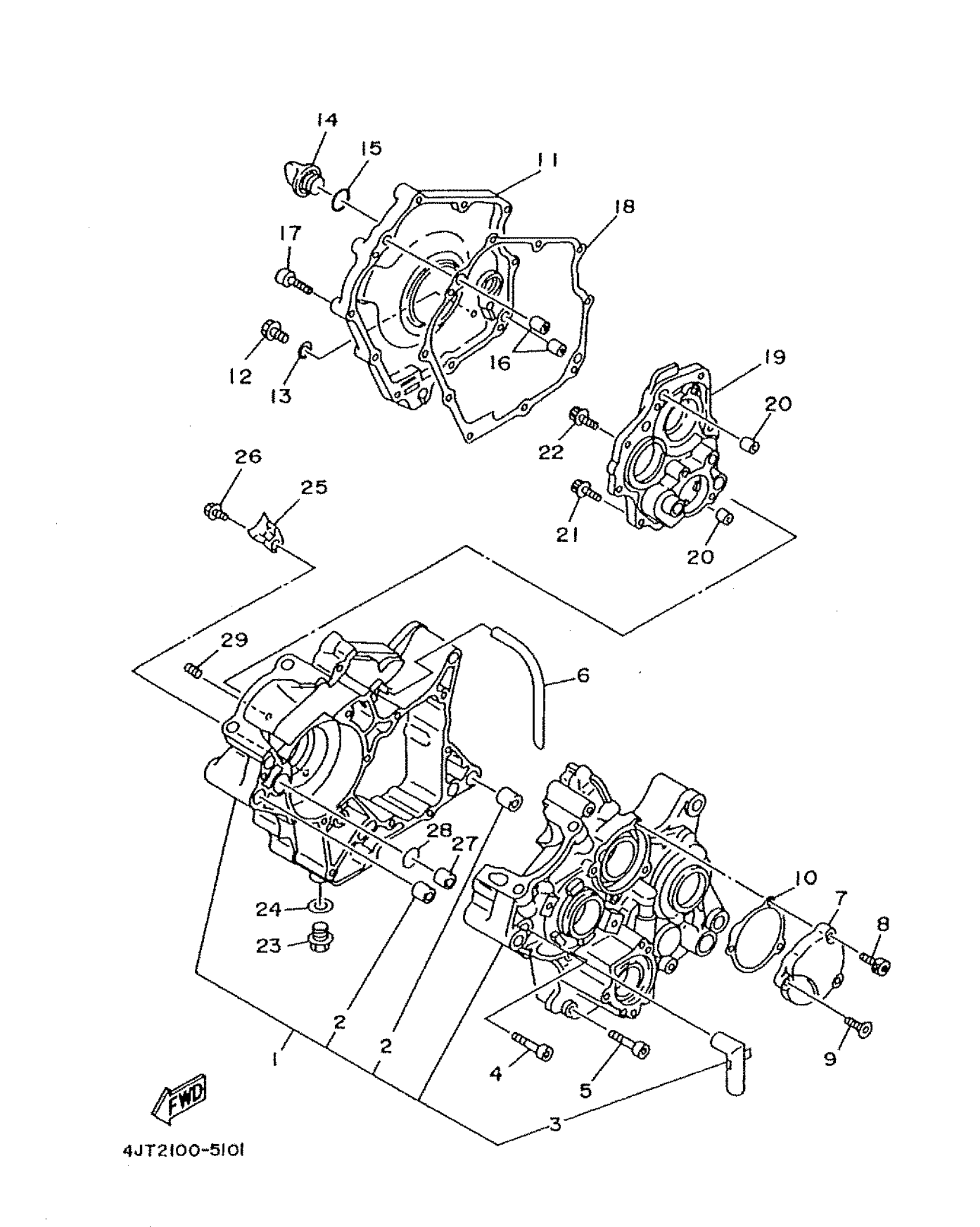

Yamaha TZ125 (TZ125) 4JT6 1999 CRANKCASE Diagram

#

Description
Price

1

CRANKCASE ASSEMBLY

4JT-15100-03-00

Unavailable

2

PIN, DOWEL(4JT)

99590-14016-00

$4.24

3

. JOINT 1

4JT-12469-01-00

Unavailable

4

BOLT,SOCKET

91317-06060-00

$3.76

5

BOLT,SOCKET

91317-06045-00

$4.99

6

HOSE

90445-092J9-00

Unavailable

7

COVER, CRANKCASE 1

4JT-15411-00-00

Unavailable

8

BOLT,SOCKET

91317-06020-00

Unavailable

9

SCREW, FLATHEAD (2H7)

90149-06126-00

$9.49

10

GASKET, CRANKCASE COVER 1

4JT-15451-10-00

Unavailable

11

COVER, CRANKCASE 2

4JT-15421-02-00

Unavailable

12

PLUG, WATER CHECK (383)

90338-06041-00

Unavailable

13

GASKET (4V2)

90430-06166-00

$3.76

14

PLUG, OIL

4A0-15363-00-00

Unavailable

15

O-RING

93210-21190-00

$7.49

16

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

17

BOLT, HEXAGON SOCKET HEAD(1VJ)

90110-06138-00

Unavailable

18

GASKET, CRANKCASE COVER 2

4JT-15461-00-00

Unavailable

19

CRANKCASE 3

4JT-15131-01-00

Unavailable

20

PIN, DOWEL(3VD)

99530-10114-00

Unavailable

21

BOLT(3YL)

90109-065F8-00

Unavailable

22

BOLT(3AK)

90109-067E6-00

Unavailable

23

PLUG, STRAIGHT SCREW

90340-12144-00

Unavailable

24

GASKET(2GH)

90430-12202-00

Unavailable

25

HOLDER

3R3-15128-01-00

Unavailable

26

BOLT, WASHER BASED(4JT)

90105-08729-00

Unavailable

27

PIN, DOWEL(4JT)

99590-14016-00

$4.24

28

. O-RING

93210-14515-00

Unavailable

29

BOLT, SET(4JT)

90113-08056-00

Unavailable
