1974 Yamaha TY80 (TY80A) Transmission Diagram

← All diagrams

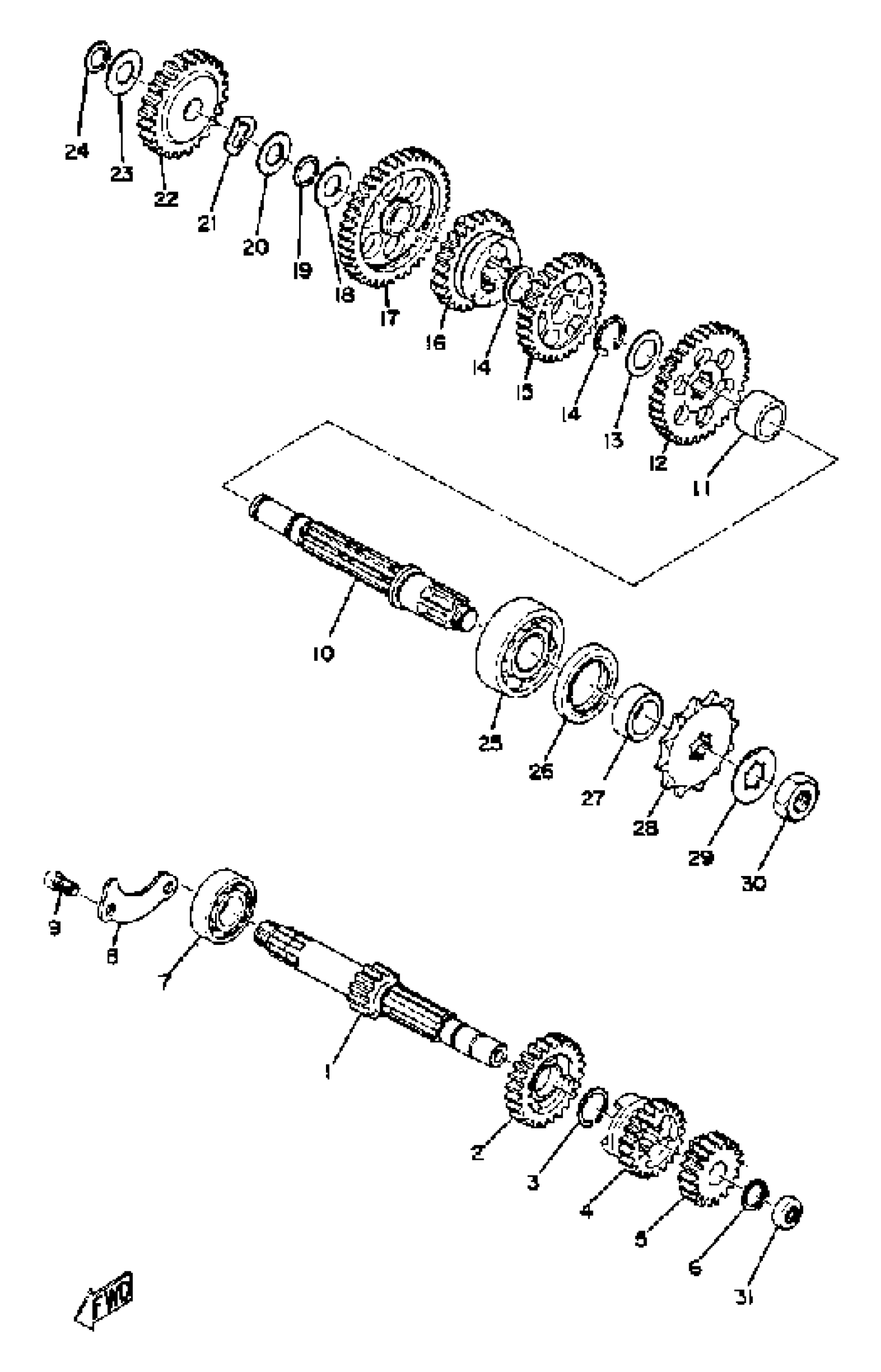

Find the part on the Transmission diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TY80 (TY80A) Transmission Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. AXLE, MAIN

353-17411-01-00

1
Out of stock

2

. GEAR, 4TH PINION

353-17141-12-00

1
Out of stock

3

CIRCLIP (4V0)

93440-16089-00

1
Out of stock

4

. GEAR, 3RD PINION

353-17131-10-00

1
Out of stock

5

. GEAR, 2ND PINION

353-17121-11-00

1
Out of stock

6

CIRCLIP(13M)

99009-13400-00

1

$5.66

In stock

7

1

$31.64

In stock

8

PLATE, COVER

353-17471-00-00

1
Out of stock

9

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

10

AXLE, DRIVE

598-17421-00-00

1
Out of stock

11

COLLAR

90387-16126-00

1
Out of stock

12

GEAR, 2ND WHEEL

353-17221-00-00

1
Out of stock

13

SHIM, (1.0T)

52G-17968-00-10

1
Out of stock

14

CIRCLIP (4V0)

93440-16089-00

1
Out of stock

15

GEAR, 3RD WHEEL

353-17231-00-00

1
Out of stock

16

GEAR, 4TH WHEEL

353-17241-00-00

1
Out of stock

17

GEAR, 1ST WHEEL

353-17211-01-00

1
Out of stock

18

SHIM

257-17219-00-00

1
Out of stock

19

CIRCLIP(10Y)

99009-12400-00

—

$3.08

In stock

20

UNAVAILABLE IN PRICE BOOK

(201-15653-00-)

1
Out of stock

20

WASHER, PLATE

90201-13013-00

—

$6.29

In stock

21

WASHER WAVE 137156430000

90206-15021-00

—

$6.86

In stock

22

GEAR, KICK IDLE

353-15651-00-00

1
Out of stock

23

WASHER (692)

90201-12M34-00

1

$3.47

In stock

24

CIRCLIP(13M)

99009-13400-00

1

$5.66

In stock

25

BRG,R-B 6303 47MM 115G NK

93306-30302-00

—

$39.88

In stock

26

OIL SEAL (25X40X5-101)

93102-25017-00

—

$4.20

In stock

27

COLLAR

90387-17137-00

1
Out of stock

28

—

$14.29

In stock

28

SPROCKET,DRIVE 12T(2571746121)

93811-12009-00

—
Out of stock

28

SPROCKET, DRIVE

93811-13019-00

1
Out of stock

28

—

$13.85

In stock

29

WASHER LOCK 283174640000

90215-13026-00

—

$5.74

In stock

30

NUT LOCK (RD50)

90179-12181-00

—

$6.28

In stock

31

OIL SEAL(1JY)

93102-04382-00

—
Out of stock
