Description

Price

1

RACE, BALL 1

B6E-23411-00-00

$8.49

2

BALL

93501-04011-00

$8.49

3

RACE, BALL 2

B6E-23412-00-00

$13.49

4

RACE, BALL 2

BP2-23412-00-00

$7.49

5

BALL

93503-16003-00

$2.72

6

RACE, BALL 1

BP2-23411-00-00

$11.49

7

COVER, BALL RACE

122-23416-00-00

$7.99

8

NUT (122-23453-00)

90179-25051-00

$33.99

9

UNAVAILABLE IN PRICE BOOK

451-23451-01-35

Unavailable

10

WASHER (1YJ)

90209-10160-00

$7.49

11

BOLT 1222345100

90105-10006-00

$11.49

12

NUT(3BM)

95314-10600-00

$2.39

13

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

14

958-69527-00 WASHER, PLAIN

92990-10200-00

$3.72

15

HOLDER, HANDLE UNDER

462-23442-00-98

Unavailable

16

HOLDER, HANDLE UPPER

462-23441-01-00

Unavailable

17

WASHER, SPRING

92995-06100-00

Unavailable

18

BOLT(3RV)

97014-06035-00

Unavailable

19

SEAL, DUST

164-23462-00-00

Unavailable

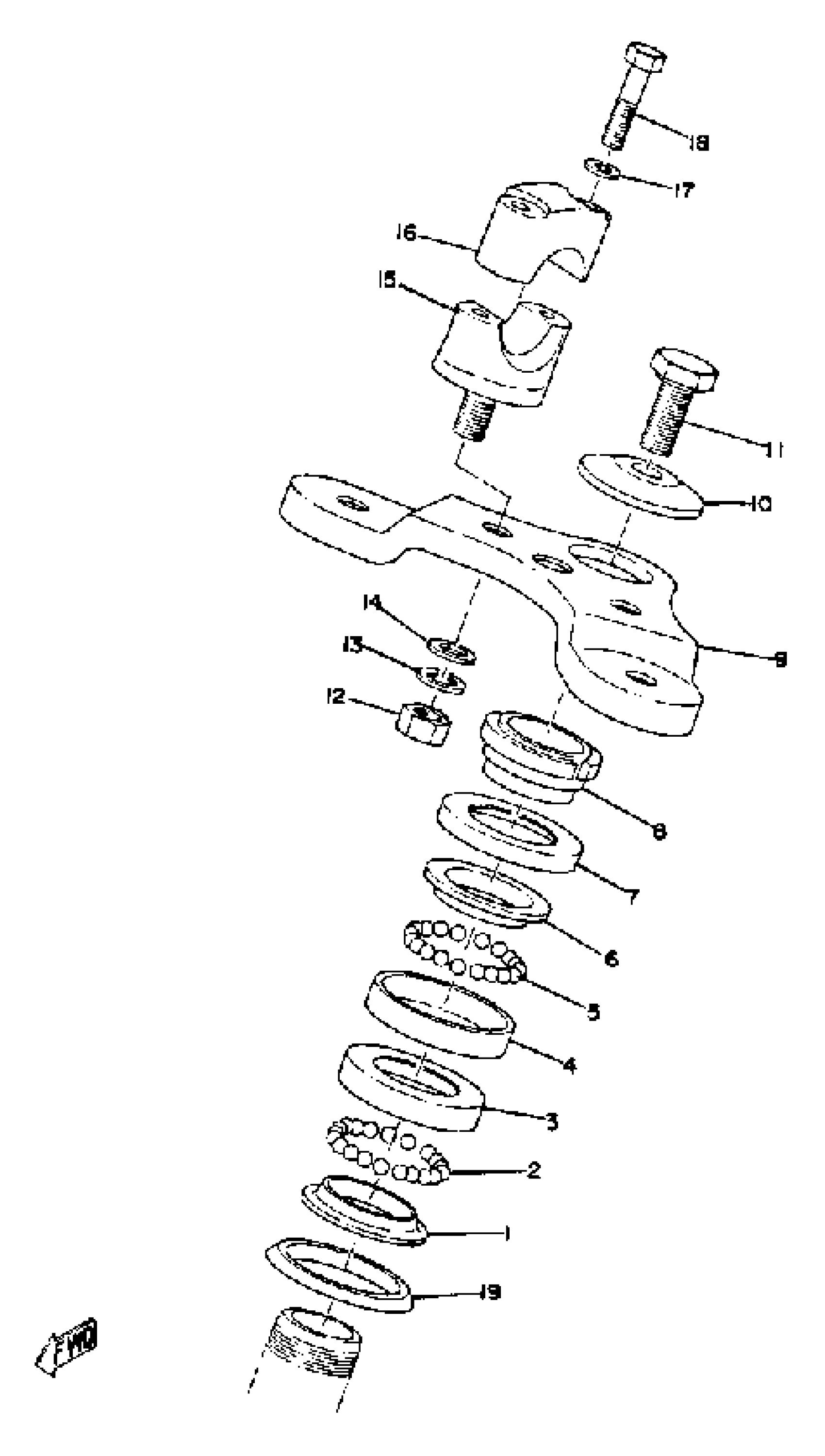

Yamaha TY80A (TY80) 1974 STEERING Diagram

RACE, BALL 1

BALL

RACE, BALL 2

RACE, BALL 2

BALL

RACE, BALL 1

COVER, BALL RACE

NUT (122-23453-00)

UNAVAILABLE IN PRICE BOOK

WASHER (1YJ)

BOLT 1222345100

NUT(3BM)

YBS67-10 WASHER, SPRING

958-69527-00 WASHER, PLAIN

HOLDER, HANDLE UNDER

HOLDER, HANDLE UPPER

WASHER, SPRING

BOLT(3RV)

SEAL, DUST
