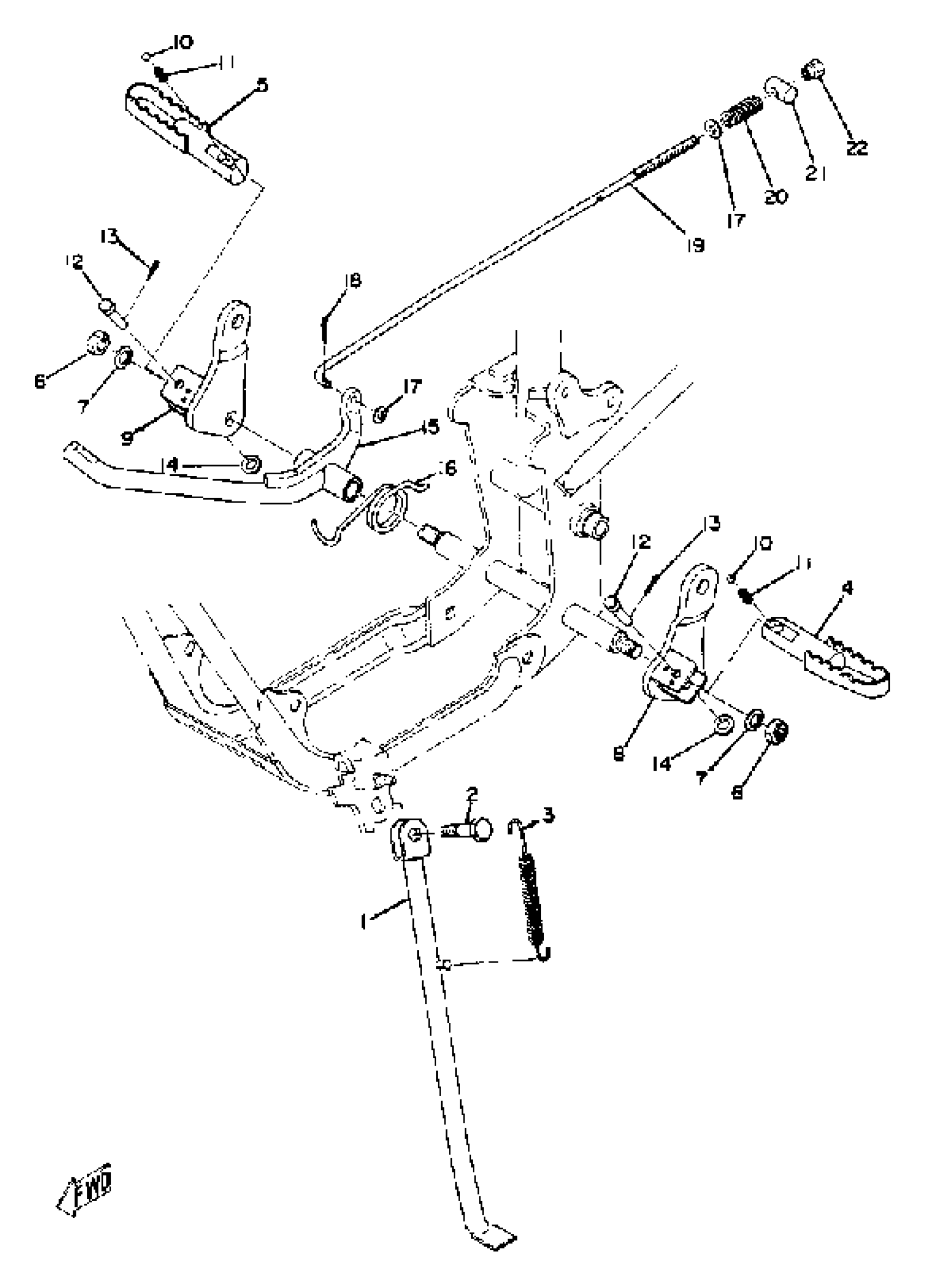

Yamaha TY80A (TY80) 1974 STAND-FOOTREST-BRAKE PEDAL Diagram

#

Description
Price

1

STAND, SIDE

451-27311-01-35

Unavailable

2

BOLT

90109-06404-00

Unavailable

3

SPRING TENSION 146273160000

90506-29052-00

$11.49

4

FOOTREST 1

451-27411-01-35

Unavailable

5

FOOTREST 2

451-27421-01-35

Unavailable

6

NUT(3BM)

95314-10600-00

$2.39

7

YBS67-10 WASHER, SPRING

92990-10100-00

$7.49

8

BRACKET, FOOTREST 1

(451-27412-00-35)

Unavailable

9

BRACKET, FOOTREST 2

451-27422-01-35

Unavailable

10

BALL (12R)

93507-32031-00

$4.73

11

SPRING COMPRESSION278156220000

90501-12081-00

$8.49

12

PIN, CLEVIS

91702-06028-00

$7.49

13

PIN, COTTER

91490-16020-00

Unavailable

14

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

15

PEDAL, BRAKE

(451-27211-01-35)

Unavailable

16

SPRING 1832721600

90508-32056-00

Unavailable

17

YBS66-6 WASHER, PLAIN

92990-06200-00

$3.78

18

PIN, COTTER

91490-20025-00

Unavailable

19

ROD, BRAKE

451-27231-00-00

Unavailable

20

SPRING, (180-27236-00)

90501-10245-00

Unavailable

21

PIN 1562723700

90249-12008-00

Unavailable

22

NUT (25K)

90179-06411-00

Unavailable
