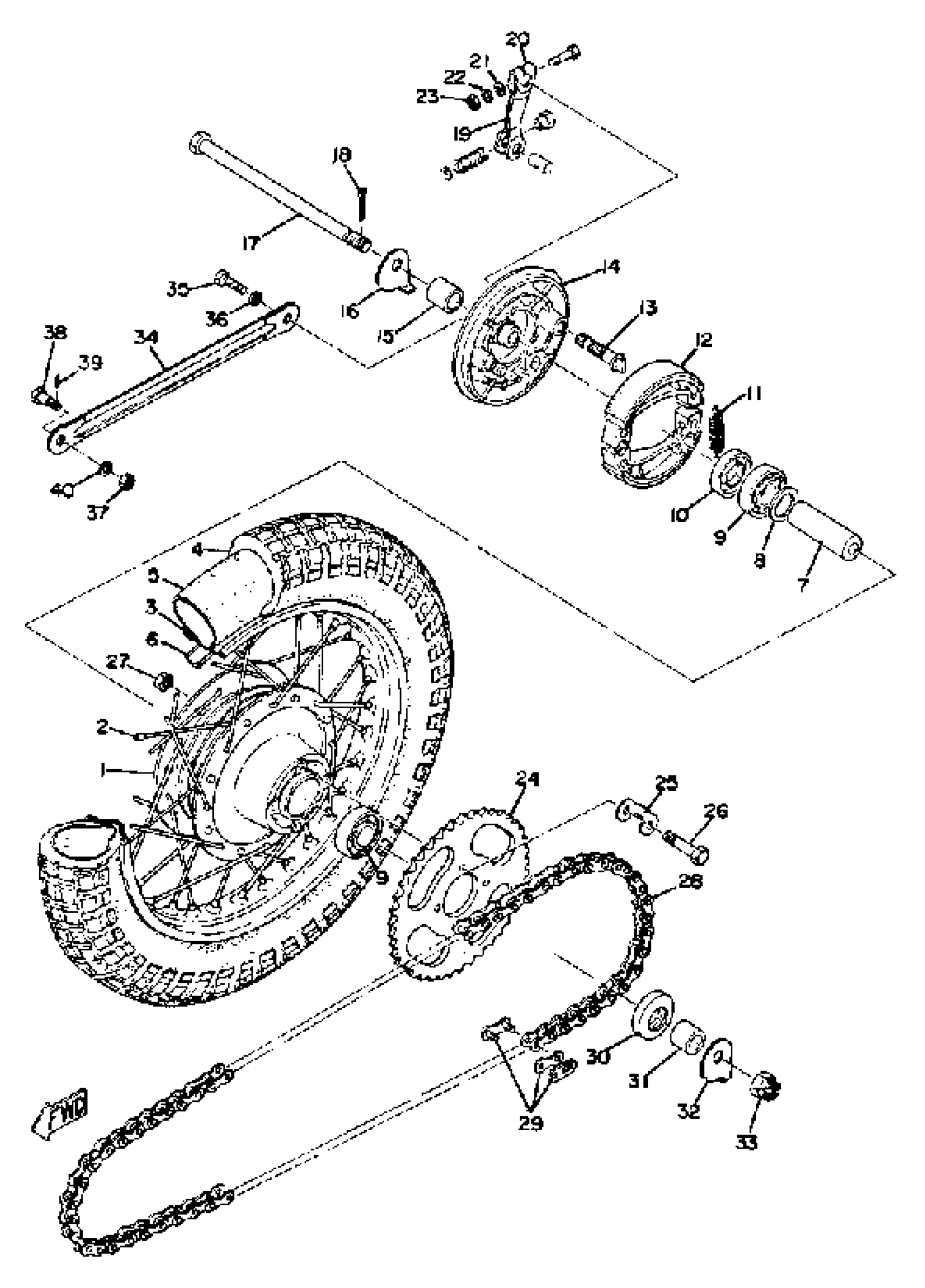

Yamaha TY80A (TY80) 1974 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

(288-25311-00-00)

Unavailable

2

SPOKE SET, REAR

367-25304-00-00

Unavailable

2

SPOKE SET, INNER 2

(367-25396-90-00)

Unavailable

2

SPOKE SET, OUTER 2

367-25397-90-00

Unavailable

3

RIM 1.40X14

94414-14077-00

Unavailable

4

300X14 IRC TRIAL

(94130-14328-00)

Unavailable

5

TUBE (80-90/100-14 TR4)(4ES)

94208-14285-00

$25.99

6

BAND, RIM (1K8)

94327-14076-00

$10.49

7

SPACER

90560-12139-00

Unavailable

8

FLANGE, SPACER

109-25315-00-00

$7.99

9

BRG.

93306-30101-00

$36.99

10

OIL SEAL(3TU)

93106-20033-00

$13.49

11

SPRING, TENSION (566).

90506-16150-00

$9.49

12

BRAKE SHOE KIT

4KN-W253E-11-00

$25.99

13

CAM SHAFT

122-25351-02-00

Unavailable

14

PLATE, BRAKE SHOE

(451-25321-00-00)

Unavailable

15

COLLAR 102253830000

90387-12412-00

Unavailable

16

PULLER, CHAIN 2

451-25389-01-00

Unavailable

17

AXLE, WHEEL

367-25381-01-00

Unavailable

18

PIN, COTTER

91490-30030-00

Unavailable

19

LEVER, CAMSHAFT

451-25355-00-00

Unavailable

20

BOLT, HEXAGON

97017-06025-00

Unavailable

21

YBS66-6 WASHER, PLAIN

92990-06200-00

Unavailable

22

WASHER, SPRING

92995-06100-00

Unavailable

23

NUT, HEXAGON

95380-06600-00

Unavailable

24

SPROCKET,DRIVN 39T

288-25439-10-00

Unavailable

24

SPROCKET, DRIVEN (41T)

5J1-25441-20-00

Unavailable

25

WASHER

2AL-25412-00-00

Unavailable

26

BOLT 109254110000

90109-08319-00

Unavailable

27

NUT(6L2)

95333-08600-00

Unavailable

28

420-106L

94580-52106-00

Unavailable

29

JOINT, CHAIN (29A)

94680-52001-00

Unavailable

30

OIL SEAL, SO-TYPE

93104-18006-00

Unavailable

31

COLLAR (40E)

90387-120F9-00

Unavailable

32

PULLER, CHAIN 1

451-25388-01-00

Unavailable

33

NUT CASTLE(481)

90171-12005-00

Unavailable

34

BAR, TENSION

451-25371-01-00

Unavailable

35

BOLT(6TD)

97017-10025-00

Unavailable

36

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

37

. NUT

95380-08700-00

Unavailable

38

BOLT (183-25378-00)

90109-08368-00

Unavailable

39

PIN, COTTER

91490-20025-00

Unavailable

40

YBS67-8 WASHER, SPRING

92990-08100-00

Unavailable
