1974 Yamaha TY80 (TY80A) OIL Pump Diagram

← All diagrams

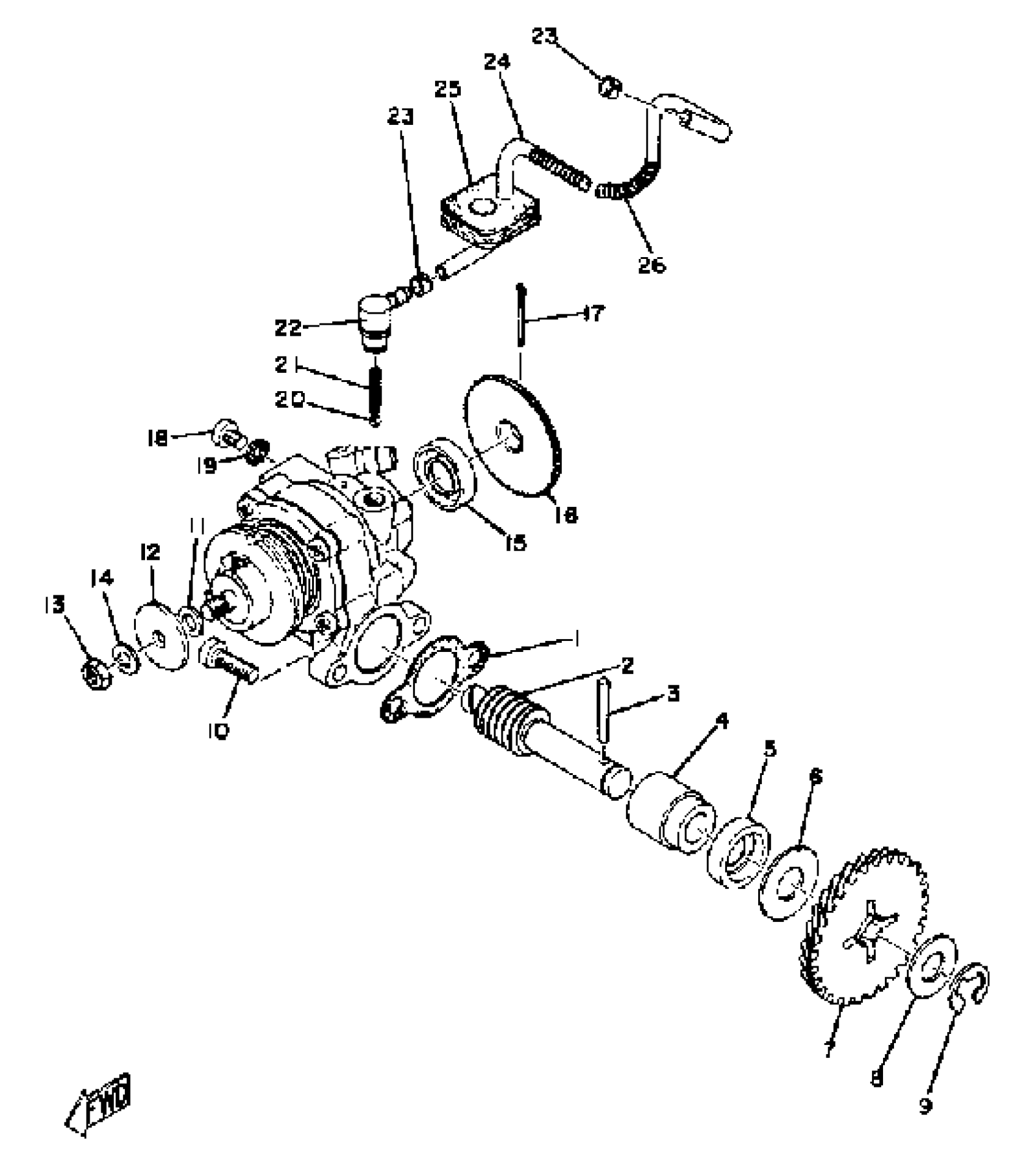

Find the part on the OIL Pump diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TY80 (TY80A) OIL Pump Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

OIL PUMP ASSEMBLY

367-13101-00-00

1
Out of stock

1

GASKET, PUMP CASE

126-13116-01-00

1
Out of stock

2

SHAFT, WORM

257-13175-00-00

1
Out of stock

3

PIN,DOWEL (137)

93603-22028-00

1
Out of stock

4

METAL, WORM SHAFT OUTER

137-13176-00-00

—
Out of stock

5

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

6

WASHER, PLATE(3GM)

90201-106M5-00

1

$6.92

In stock

7

GEAR, PUMP DRIVE

353-13178-00-00

1
Out of stock

8

WASHER, PLATE

(90201-10129-00)

1
Out of stock

9

. CIRCLIP, PLUNGER

93440-08001-00

1
Out of stock

10

SCREW, PAN HEAD(6B0)

97885-05016-00

1

$3.96

In stock

11

SHIM,PLUNGER

137-13137-00-10

1

$6.43

In stock

12

PLATE, ADJUSTING

137-13138-01-00

—

$12.17

In stock

13

NUT, HEXAGON (663)

95380-05600-00

1

$6.17

In stock

14

YBS67-5 WASHER, SPRING

92990-05100-00

1
Out of stock

15

OIL SEAL (J10)

93101-10090-00

1

$6.17

In stock

16

PLATE, STARTER

(353-13128-00-00)

1
Out of stock

17

. PIN, COTTER

91401-12018-00

1
Out of stock

18

SCREW, BIND

98980-04008-00

1

$3.26

In stock

19

GASKET 137131870000

90430-04004-00

—
Out of stock

20

BALL

93505-32002-00

—

$2.22

In stock

21

SPRING, CHECK BALL (451)

90501-02217-00

—

$5.62

In stock

22

NOZZLE

353-13552-01-00

—
Out of stock

23

CLIP (214-13164-00)

90468-02033-00

—
Out of stock

24

HOSE (L700)

90445-05M07-00

1
Out of stock

25

HOLDER, OIL PIPE

248-13174-00-00

—
Out of stock

26

SPRING, COMPRESSION

90501-06025-00

1
Out of stock
