1974 Yamaha TY80 (TY80A) Crankcase Cover Diagram

← All diagrams

Find the part on the Crankcase Cover diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

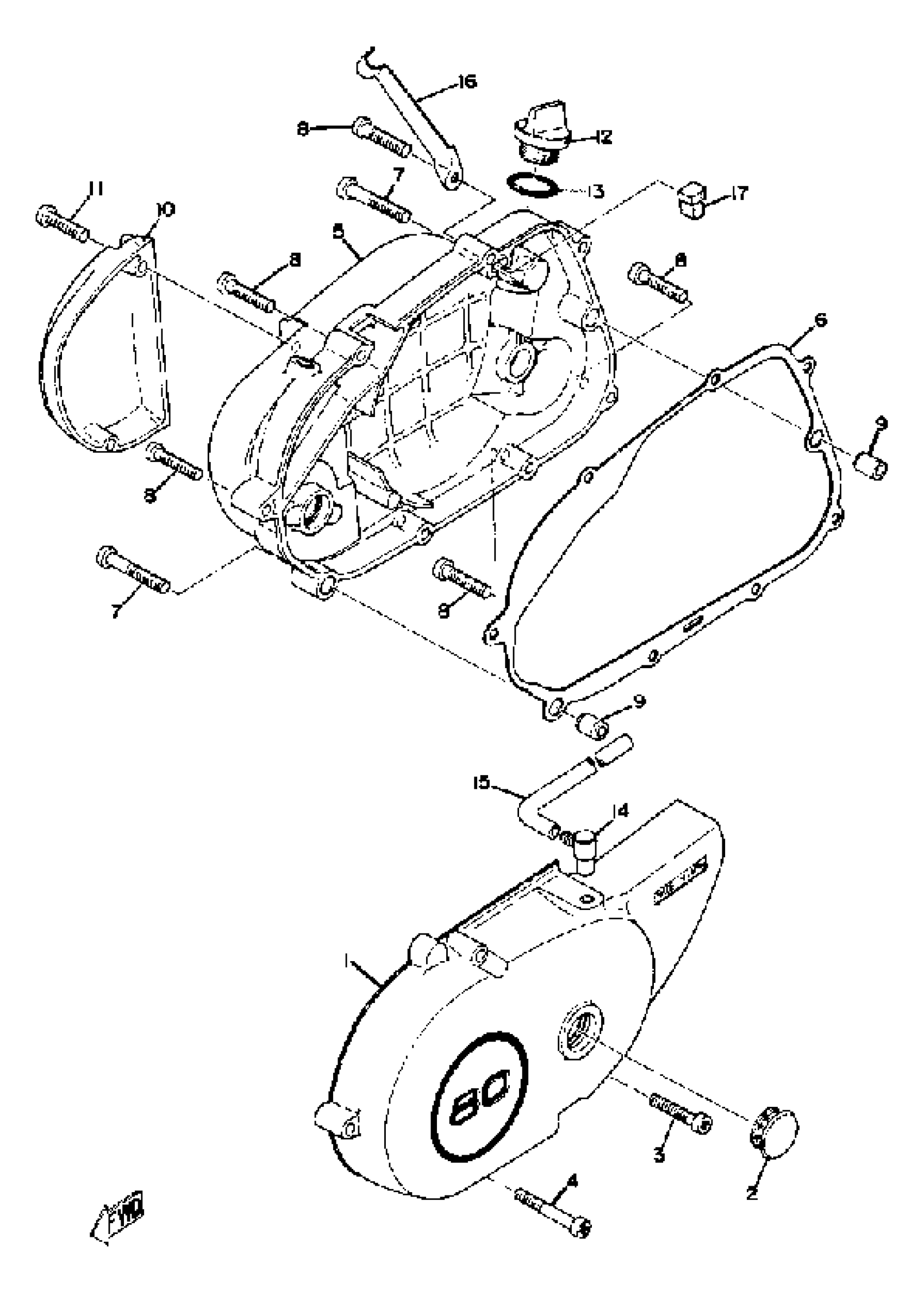

1974 Yamaha TY80 (TY80A) Crankcase Cover Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

COVER, CRANKCASE L

451-15411-00-00

1
Out of stock

2

COVER, CAP

441-15417-01-00

1
Out of stock

3

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

4

SCREW PAN HEAD

98580-06545-00

1

$5.78

In stock

5

COVER, CRANKCASE R

353-15421-00-00

1
Out of stock

6

GASKET, CRANKCASE COVER 1

3MT-15451-00-00

1
Out of stock

7

SCREW PAN HEAD

98580-06040-00

1

$6.17

In stock

8

SCREW, PAN HEAD(6E0)

97885-06030-00

1

$4.62

In stock

9

PIN, DOWEL(3VD)

99530-10114-00

1

$2.23

In stock

10

COVER, OIL PUMP

353-15416-00-00

1
Out of stock

11

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

12

PLUG, OIL

3Y1-15363-10-00

1

$17.02

In stock

13

O-RING

93210-21190-00

1

$5.59

In stock

14

BREATHER

583-15371-00-00

1
Out of stock

15

HOSE

(90446-07009-00)

1
Out of stock

16

HOLDER, OIL PIPE

(451-13174-00-00)

1
Out of stock

17

SCRAPER, OIL

353-15437-02-00

1
Out of stock
Crankshaft - Piston →
