1974 Yamaha TY80 (TY80A) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

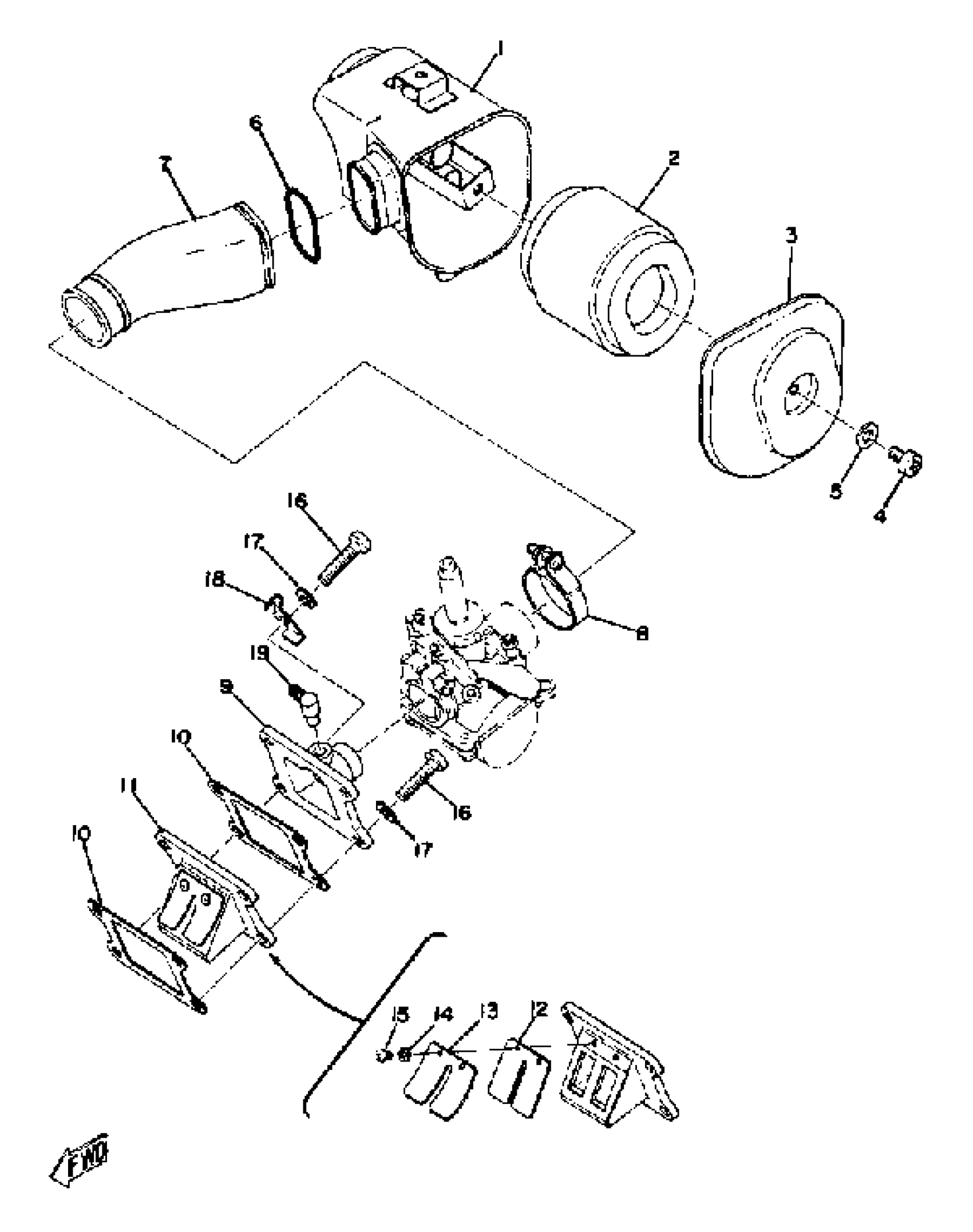

1974 Yamaha TY80 (TY80A) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

CASE, AIR CLEANER 1

(451-14411-00-00)

1
Out of stock

2

ELEMENT, AIR CLNR

451-14451-00-00

1
Out of stock

3

CAP, CLEANER CASE 1

(451-14412-00-00)

1
Out of stock

4

SCREW PAN HEAD

98580-06010-00

1

$6.17

In stock

5

YBS66-6 WASHER, PLAIN

92990-06200-00

1

$0.78

In stock

6

BAND 3671445501

90506-06075-00

1

$7.05

In stock

7

JOINT, AIR CLNR 1

451-14453-01-00

1
Out of stock

8

CLAMP,HOSE

90460-33013-00

1
Out of stock

9

JOINT, CARBURETOR

(451-13565-00-00)

1
Out of stock

10

GASKET, VALVE SEAT

3MT-13621-00-00

1

$7.51

In stock

11

REED VALVE ASSEMBLY

353-13610-01-00

1
Out of stock

12

VALVE, REED

314-13613-01-00

—

$32.53

In stock

13

. STOPPER, REED VALVE

10X-13616-00-00

1
Out of stock

14

WASHER, SPRING

92990-03100-00

1

$6.17

In stock

15

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

16

SCREW, PAN HEAD (76T)

98517-06025-00

—

$3.12

In stock

16

SCREW PAN HEAD

98580-06020-00

—

$5.10

In stock

17

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

18

HOLDER

(367-15378-00-00)

1
Out of stock

19

NOZZLE

3XV-13741-00-00

1
Out of stock
