1974 Yamaha TY80 (TY80A) Carburetor Diagram

← All diagrams

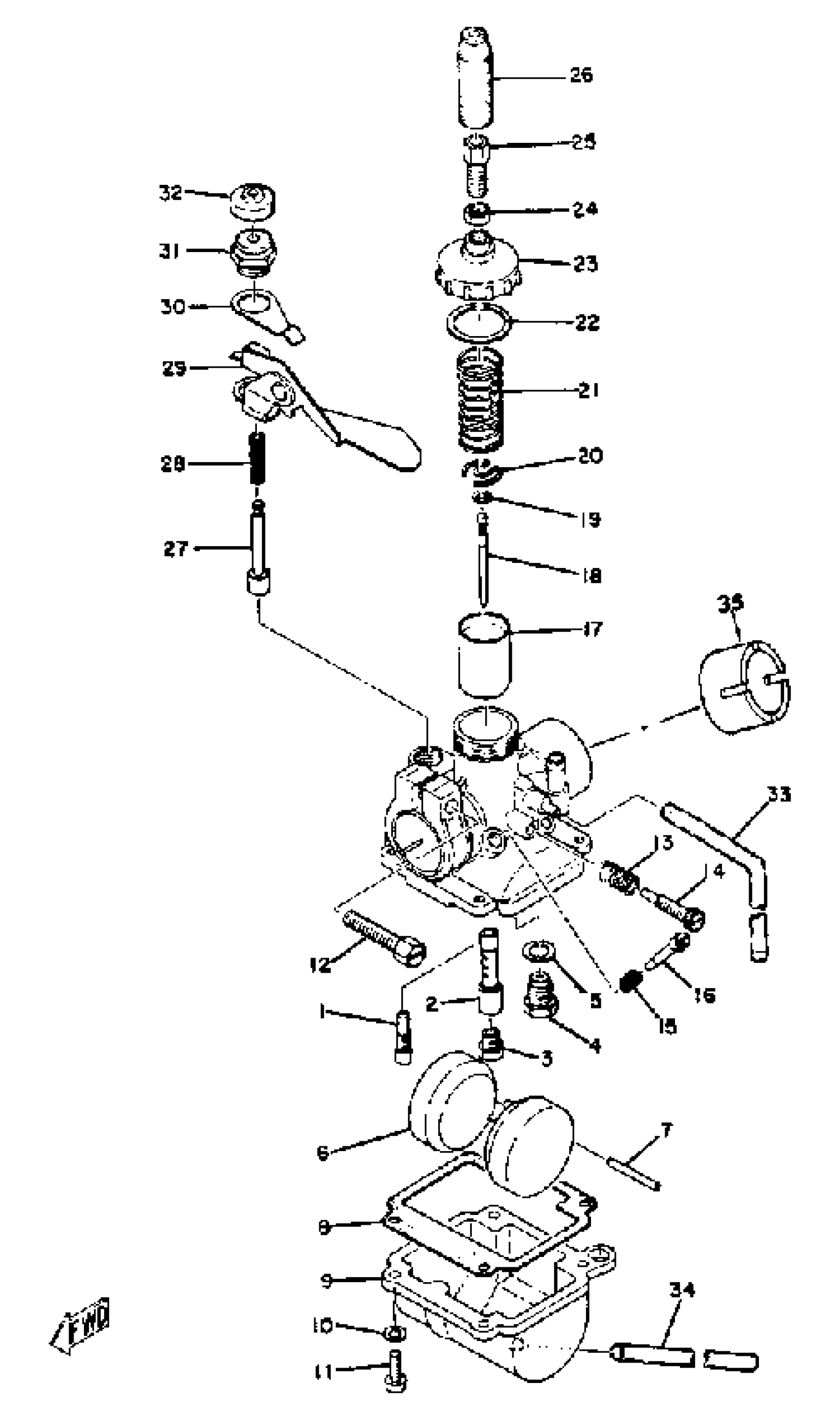

Find the part on the Carburetor diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1974 Yamaha TY80 (TY80A) Carburetor Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

. JET, PILOT #34

367-14342-17-00

1
Out of stock

1

CARBURETOR ASSEMBLY 1

451-14301-60-00

1
Out of stock

2

. NOZZLE, MAIN

288-14341-03-00

1
Out of stock

3

JET, MAIN #84

288-14343-42-00

1
Out of stock

3

. JET, MAIN #86

288-14343-43-00

1
Out of stock

3

. JET, MAIN #88 (#88)

288-14343-44-00

1
Out of stock

4

VALVE SEAT ASSY

367-14390-14-00

1

$34.91

In stock

5

WASHER, VALVE SEAT

367-14195-00-00

1

$5.52

In stock

6

FLOAT

367-14385-00-00

—
Out of stock

7

PIN, FLOAT

367-14386-00-00

1

$5.32

In stock

8

GASKET, FLOAT CHAMBER

4U1-14384-00-00

1

$6.75

In stock

9

. BODY, FLOAT CHAMBER (367-14381-00-00)

367-14381-25-00

1
Out of stock

10

YBS67-4 WASHER, SPRING

92990-04100-00

1

$0.60

In stock

11

SCREW, PAN HEAD (E56)

98580-04010-00

1

$6.17

In stock

12

SCREW, PAN HEAD (76T)

98517-06025-00

1

$3.12

In stock

13

. SPRING, PILOT ADJUSTING

646-14212-00-00

1

$10.75

In stock

14

SCREW, PILOT ADJUSTING

646-14211-02-00

—

$5.65

In stock

15

. SPRING, AIR ADJUST

367-14337-00-00

1
Out of stock

16

. SCREW, AIR ADJUSTING

396-14323-00-00

1
Out of stock

17

. VALVE, THROTTLE 1

367-14312-10-00

1
Out of stock

18

NEEDLE

29J-1490J-00-00

1
Out of stock

19

. CLIP

288-14137-00-00

1
Out of stock

20

. SEAT, SPRING (367-14136-00)

367-14136-02-00

1
Out of stock

21

. SPRING, THRTL VALVE

367-14331-00-00

1
Out of stock

22

. GASKET

367-14126-00-00

1
Out of stock

23

. CAP, MIXING CHAMBER

367-14168-00-00

1
Out of stock

24

NUT, CABLE ADJUSTING

85L-14161-00-00

1
Out of stock

25

. SCREW, CABLE ADJUSTING

288-14124-00-00

1
Out of stock

26

. CAP

367-14169-00-00

1
Out of stock

27

PLUNGER,STARTER

29J-1410A-00-00

1
Out of stock

28

. SPRING, PLUNGER

367-14335-00-00

1
Out of stock

29

. LEVER, STARTER

367-14375-01-00

1
Out of stock

30

. STOPPER

367-14377-00-00

1
Out of stock

31

PLUNGER,STARTER

29J-1410A-00-00

1
Out of stock

32

COVER, PLUNGER CAP

(367-14373-00-00)

1
Out of stock

33

PIPE 1

(367-14348-00-00)

1
Out of stock

34

PIPE, OVER FLOW

367-14396-00-00

—

$8.49

In stock

35

GASKET, INSULATING

367-14156-00-00

1
Out of stock
