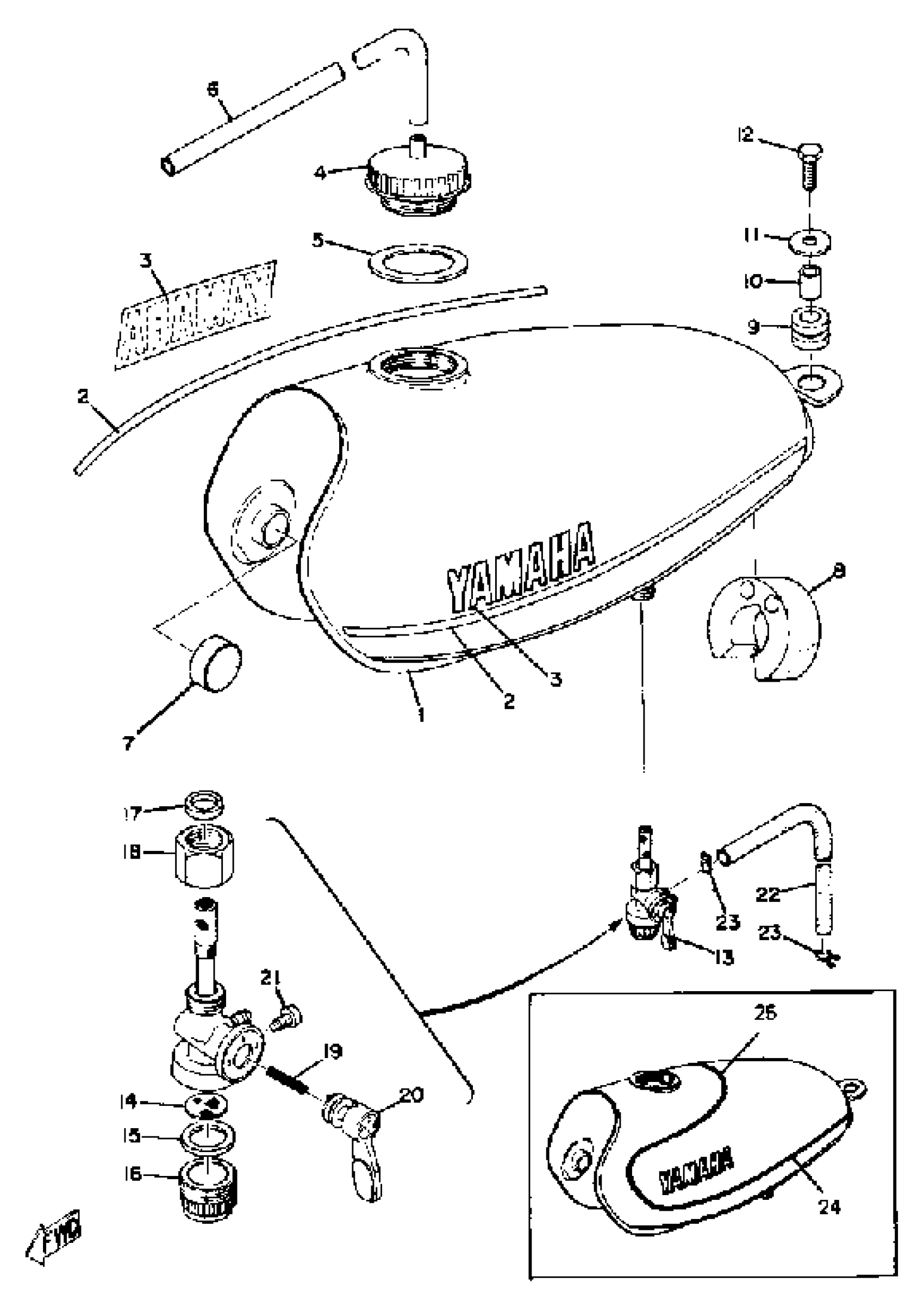

Yamaha TY80A (TY80) 1974 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK

(451-24110-00-01)

Unavailable

1

FUEL TANK

(451-24110-00-02)

Unavailable

2

GRAPHIC, FUEL TNK 1

(451-24244-00-00)

Unavailable

3

EMBLEM 1

(451-24161-00-00)

Unavailable

4

BODY, CAP

322-24611-02-00

$57.99

5

GASKET (322-24612-00)

90430-37052-00

Unavailable

6

HOSE (L420)

90445-092K1-00

$12.49

7

DAMPER, LOCATING(1)

122-24181-00-00

$7.99

8

DAMPER, LOCATING 2

(451-24182-00-00)

Unavailable

9

GROMMET 839774310000

90480-14023-00

$7.49

10

COLLAR (J10)

90387-06026-00

$8.49

11

WASHER, PLATE

90201-06380-00

$0.60

12

BOLT, HEXAGON

97017-06025-00

$4.24

13

FUEL COCK ASSY

367-24500-04-00

Unavailable

14

NET, FILTER 2

(451-24515-00-00)

Unavailable

15

GASKET

102-24522-02-00

Unavailable

16

CUP, FILTER

(451-24521-00-00)

Unavailable

17

GASKET

(451-24532-00-00)

Unavailable

18

. NUT

122-24531-00-00

Unavailable

19

SPRING, COMPRESSION

(90501-07029-00)

Unavailable

20

. LEVER, COCK

122-24524-00-00

Unavailable

21

SCREW, LVR FITTING

(127-24535-00-00)

Unavailable

22

PIPE, FUEL 1

(451-24311-00-00)

Unavailable

23

CLIP 101235600

90467-08003-00

Unavailable

24

GRAPHIC, FUEL TNK 1

(451-24244-10-00)

Unavailable

25

GRAPHIC, FUEL TNK 2

(451-24245-10-00)

Unavailable
