1974 Yamaha TY80 (TY80A) Front Wheel Diagram

← All diagrams

Find the part on the Front Wheel diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

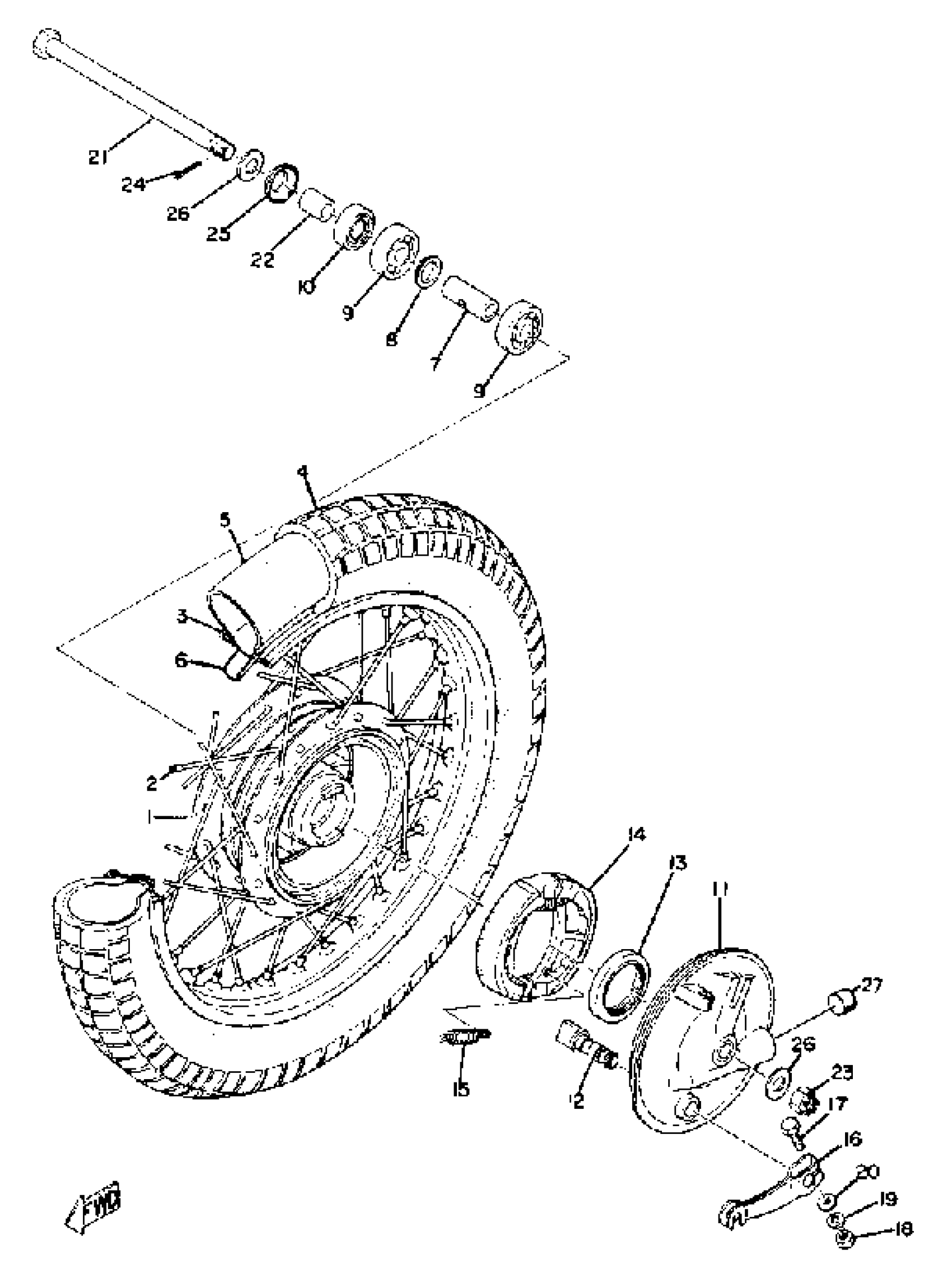

1974 Yamaha TY80 (TY80A) Front Wheel Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

HUB, FRONT

(451-25111-00-00)

1
Out of stock

2

SPOKE SET, FRONT

(451-25104-01-00)

1
Out of stock

3

RIM 1.40X16

(94414-16117-00)

1
Out of stock

4

250X16 IRC TRIALS

(94125-16327-00)

1
Out of stock

5

TUBE 250X16

94225-16048-00

1
Out of stock

6

BAND, RIM

94330-16058-00

1

$18.18

In stock

7

SPACER 451251170000

90560-10103-00

1

$15.43

In stock

8

FLANGE, SPACER 2

2E9-25116-00-00

1

$6.38

In stock

9

BEARING (3R0)

93306-20009-00

1

$38.79

In stock

10

OIL SEAL (17X30X8.5-451)

93106-17006-00

1

$9.89

In stock

11

PLATE, BRAKE SHOE

(451-25121-01-00)

1
Out of stock

12

CAMSHAFT

1YT-25351-00-00

1
Out of stock

13

OIL SEAL

93106-40001-00

1

$10.15

In stock

14

BRAKESHOE SET-2PCS

451-W2535-00-00

1
Out of stock

15

1

$7.51

In stock

16

LEVER, CAM SHAFT

451-25155-00-00

—

$32.20

In stock

17

BOLT, HEXAGON

97017-06025-00

—

$2.98

In stock

18

NUT, HEXAGON

95380-06600-00

1

$4.13

In stock

19

WASHER, SPRING

92995-06100-00

1

$2.99

In stock

20

YBS66-6 WASHER, PLAIN

92990-06200-00

—

$0.78

In stock

21

AXLE, WHEEL

(451-25181-01-00)

1
Out of stock

22

COLLAR

(90387-10282-00)

1
Out of stock

23

NUT 3532518200

90171-10004-00

—

$5.32

In stock

24

PIN, COTTER

91490-20025-00

—

$1.31

In stock

25

COVER, HUB DUST

451-25118-00-00

—

$15.83

In stock

26

WASHER, PLATE(3BM)

90201-105R9-00

—
Out of stock

27

ABSORBER 1

(341-11161-00-00)

1
Out of stock
