1974 Yamaha TY80 (TY80A) Front Fork Diagram

← All diagrams

Find the part on the Front Fork diagram for your 1974 Yamaha TY80 (TY80A), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

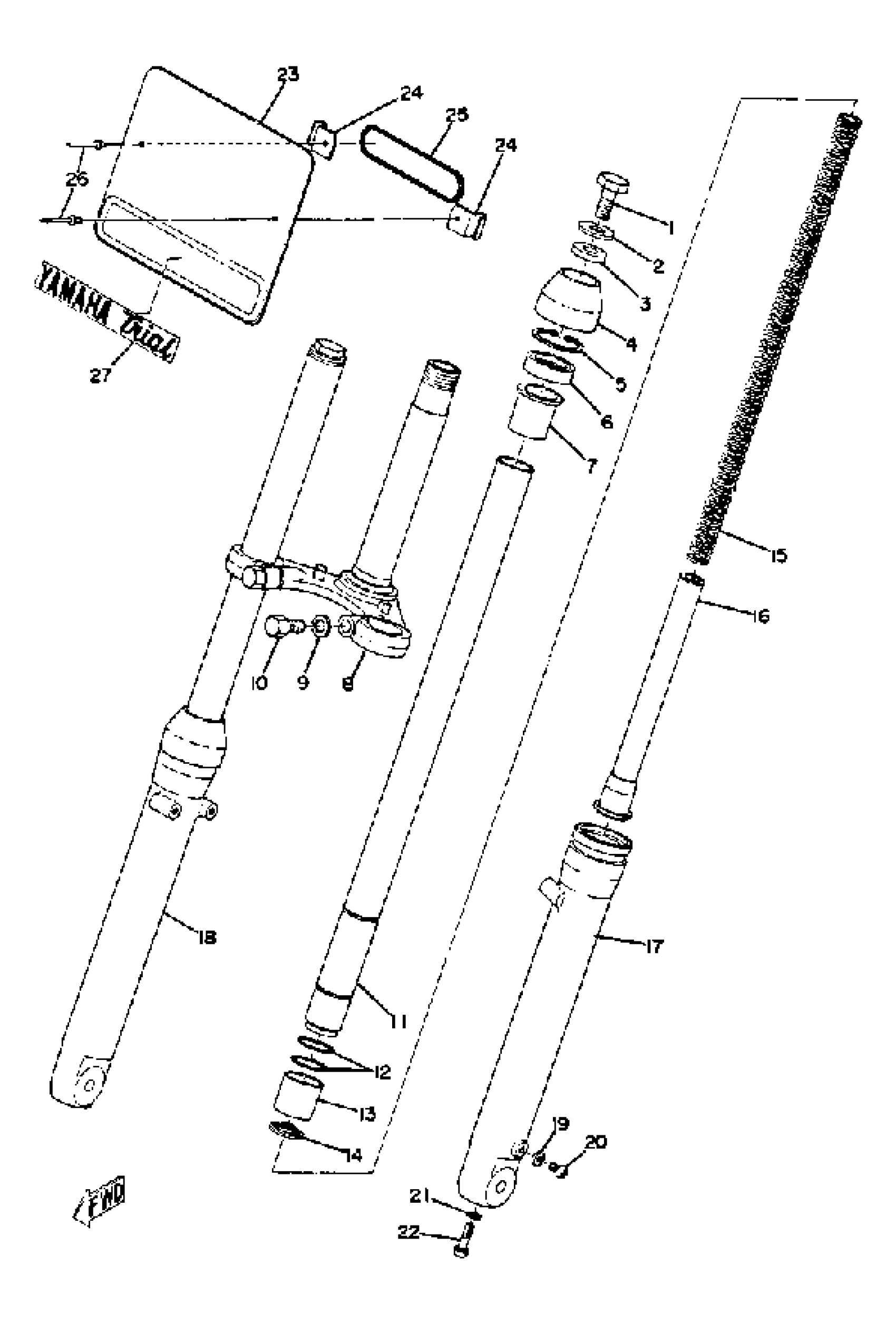

1974 Yamaha TY80 (TY80A) Front Fork Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRONT FORK ASSEMBLY

(451-23101-01-35)

1
Out of stock

1

BOLT, CAP

(451-23111-01-00)

1
Out of stock

2

WASHER, CAP

(451-23112-01-00)

1
Out of stock

3

GASKET

(451-23114-01-00)

1
Out of stock

4

SEAL, DUST

(451-23144-01-00)

1
Out of stock

5

CLIP, OIL SEAL

(451-23156-01-00)

1
Out of stock

6

. OIL SEAL

451-23145-01-00

1
Out of stock

7

METAL, SLIDE 1

(451-23125-01-00)

1
Out of stock

8

UNDER BRACKET

(451-23340-01-35)

1
Out of stock

9

YBS67-10 WASHER, SPRING

92990-10100-00

1

$2.43

In stock

10

BOLT 1

(451-23346-01-00)

1
Out of stock

11

TUBE, INNER 1

(451-23124-01-00)

1
Out of stock

12

RING, PISTON FRTFRK

(451-23157-01-00)

1
Out of stock

13

PISTON, FRONT FORK

(451-23171-01-00)

1
Out of stock

14

CIRCLIP

(451-23183-01-00)

1
Out of stock

15

SPRING, FRONT FORK

(451-23141-01-00)

1
Out of stock

16

CYLINDER, FRTFRK

(451-23170-01-00)

1
Out of stock

17

TUBE, OUTER 1

(451-23126-01-00)

1
Out of stock

18

TUBE, OUTER 2

(451-23136-01-00)

1
Out of stock

19

GASKET, DRAIN PLUG

(451-23129-01-00)

1
Out of stock

20

SCREW, PAN HEAD(6A3)

97885-06008-00

1

$1.07

In stock

21

GASKET, DRAIN PLUG

(451-23129-01-00)

1
Out of stock

22

SCREW, PAN HEAD(6B0)

97885-06025-00

1

$4.62

In stock

23

PLATE, NUMBER

451-23485-00-00

1
Out of stock

24

STAY, PLATE

(451-23487-00-00)

1
Out of stock

25

O-RING (802)

93210-99103-00

—
Out of stock

26

RIVET, BLIND

(90267-32016-00)

1
Out of stock

27

EMBLEM 7

451-21787-00-00

1
Out of stock
