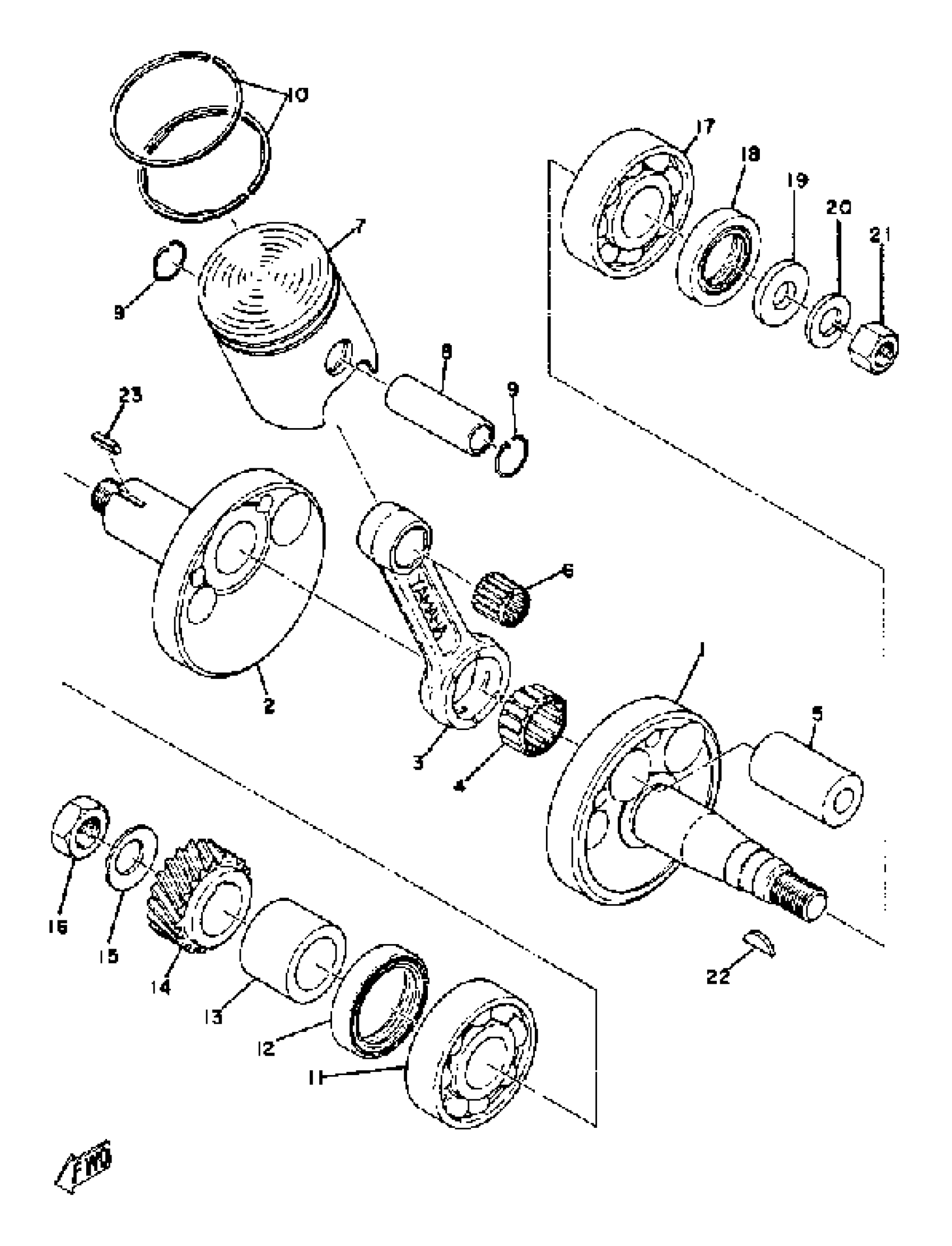

Yamaha TY80A (TY80) 1974 CRANKSHAFT - PISTON Diagram

#

Description
Price

1

CRANKSHAFT ASSEMBLY

1K9-11400-00-00

Unavailable

1

CRANK 1

(367-11412-00-00)

Unavailable

2

CRANK 2

(367-11422-00-00)

Unavailable

2

PISTON (STD) 0.96MM

367-11631-11-96

Unavailable

2

PISTON (1ST O/S)

367-11635-11-00

Unavailable

2

PISTON (STD) 2ND O/S

367-11636-11-00

Unavailable

3

ROD, CONNECTING

3R1-11651-01-00

$125.99

4

BEARING, CYLINDRICAL(3TU)

93310-418C4-00

$48.99

5

PIN, CRANK 1

257-11681-10-00

$29.99

6

BRG,CYL-CAL ROLLER 5G TM

93310-11268-00

$35.99

7

PISTON (1ST O/S)

367-11635-11-00

Unavailable

8

PIN, PISTON

527-11633-00-00

$17.49

9

CIRCLIP 132116340000

93450-13022-00

$8.49

10

PISTON RING SET (STD)

367-11610-00-00

$63.99

10

PISTON RINGSET 1ST

367-11610-10-00

Unavailable

10

PISTON RING SET (2NDO/S)

367-11610-20-00

Unavailable

11

BEARING(1GJ)

93306-20458-00

Unavailable

12

OIL SEAL (28X40X8-132)

93103-28011-00

Unavailable

13

COLLAR (4Y2)

90387-205E9-00

Unavailable

14

GEAR, PRI DRIVE

353-16111-01-00

Unavailable

15

WASHER, CONICAL SPRING 12,2 X

90208-12800-00

Unavailable

16

NUT(1EE)

90179-12659-00

Unavailable

17

BEARING(1GJ)

93306-20458-00

Unavailable

18

OIL SEAL (20X35X7-136)

93102-20009-00

Unavailable

19

WASHER (492)

90201-12535-00

Unavailable

20

YBS67-12 WASHER,SPRING

92990-12100-00

Unavailable

21

NUT, HEXAGON 98801-12200

90170-12175-00

Unavailable

22

KEY WOODRUFF 146115450000

90280-03017-00

Unavailable

23

KEY, STRAIGHT 3531154600

90282-05005-00

Unavailable
