1986 Yamaha Trial (TY350S) Stand - Footrest Diagram

← All diagrams

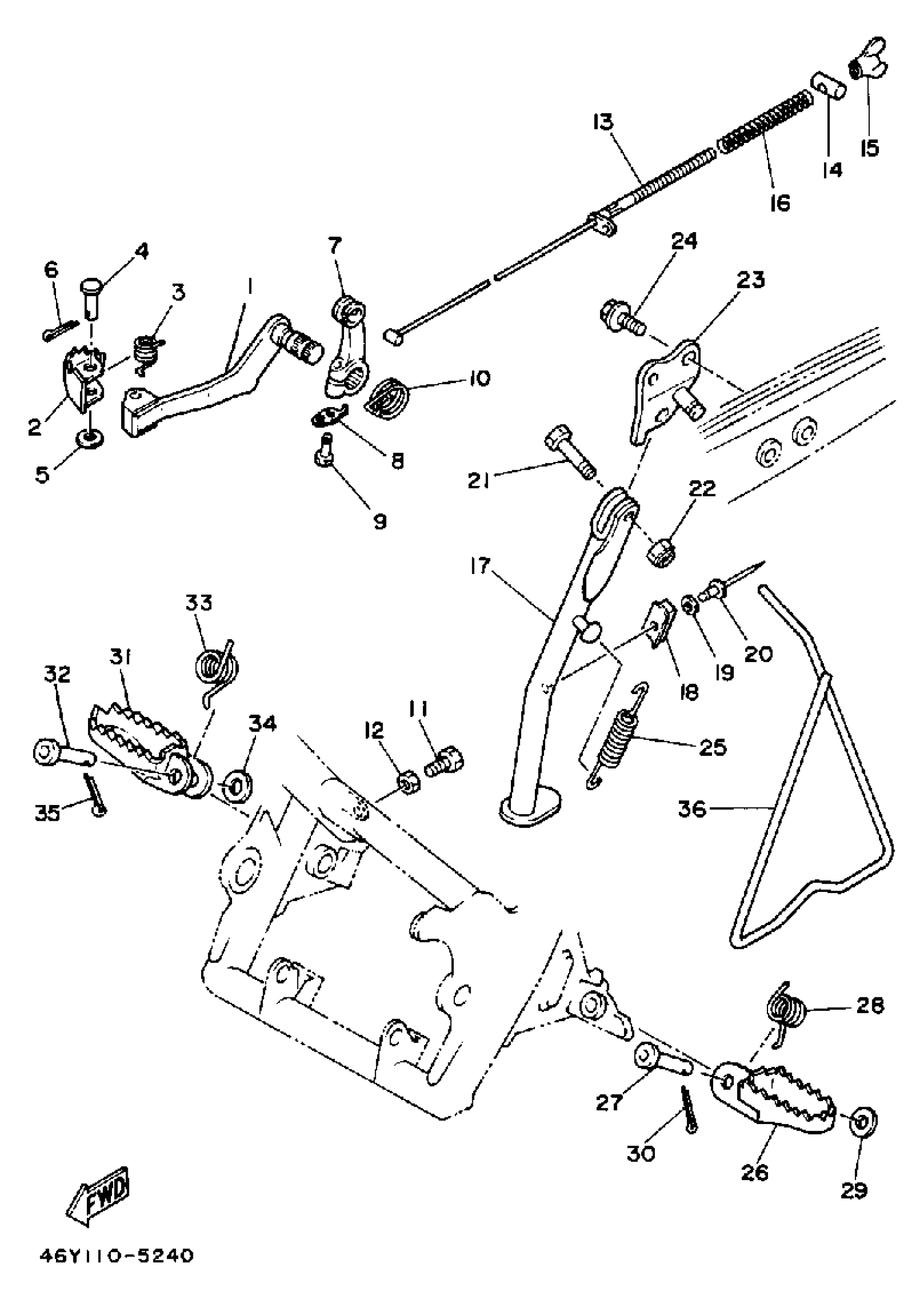

Find the part on the Stand - Footrest diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Trial (TY350S) Stand - Footrest Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

PEDAL, BRAKE

44J-27211-00-00

1
Out of stock

2

PEDAL, BRAKE

3R8-27242-00-00

1
Out of stock

3

SPRING, TORSION

90508-14429-00

1
Out of stock

4

PIN, CLEVIS

91702-06028-00

1
Out of stock

5

WASHER, PLATE (4H7)

90201-061A5-00

1
Out of stock

6

PIN, COTTER

91490-20025-00

1
Out of stock

7

LEVER, BRAKE PEDAL

53Y-27252-00-00

1
Out of stock

8

HOOK

(53Y-27254-00-00)

1
Out of stock

9

BOLT, HEXAGON (462)

90101-06291-00

1
Out of stock

10

SPRING, TORSION 46Y

90508-23636-00

1
Out of stock

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

1
Out of stock

12

NUT(650)

95380-06700-00

1
Out of stock

13

CABLE, BRAKE

38V-26351-00-00

1
Out of stock

14

PIN 1562723700

90249-12008-00

1
Out of stock

15

NUT, WING (1K5)

90175-06013-00

1
Out of stock

16

SPRING, COMPRESS46Y

90501-090A7-00

1
Out of stock

17

STAND, SIDE

38V-27311-20-35

1
Out of stock

18

DAMPER, RUBBER 1

34K-21485-00-00

1
Out of stock

19

WASHER, PLATE(26H)

90201-044H9-00

—
Out of stock

20

RIVET,BLIND

90267-40080-00

1
Out of stock

21

BOLT 1092537300

90109-08063-00

—
Out of stock

22

NUT

90185-08055-00

—
Out of stock

23

BRACKET, SIDE STAND

38V-27321-00-00

1
Out of stock

24

BOLT, WASHER BASED

90105-08287-00

1
Out of stock

25

SPRING TENSION 150273160000

90506-25047-00

—
Out of stock

26

FOOTREST 1

38V-27411-00-00

1
Out of stock

27

PIN, CLEVIS (23X)

90240-10101-00

—
Out of stock

28

SPRING, TORSION 46Y

90508-20634-00

1
Out of stock

29

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

30

PIN, COTTER

91490-25020-00

—
Out of stock

31

FOOTREST 2

38V-27421-00-00

1
Out of stock

32

PIN, CLEVIS (23X)

90240-10101-00

—
Out of stock

33

SPRING, TORSION 46Y

90508-20635-00

1
Out of stock

34

WASHER, PLAIN(735)

90201-10119-00

—
Out of stock

35

PIN, COTTER

91490-25020-00

—
Out of stock

36

STAND, SIDE

(38V-27311-11-00)

1
Out of stock
