1986 Yamaha Trial (TY350S) Frame Diagram

← All diagrams

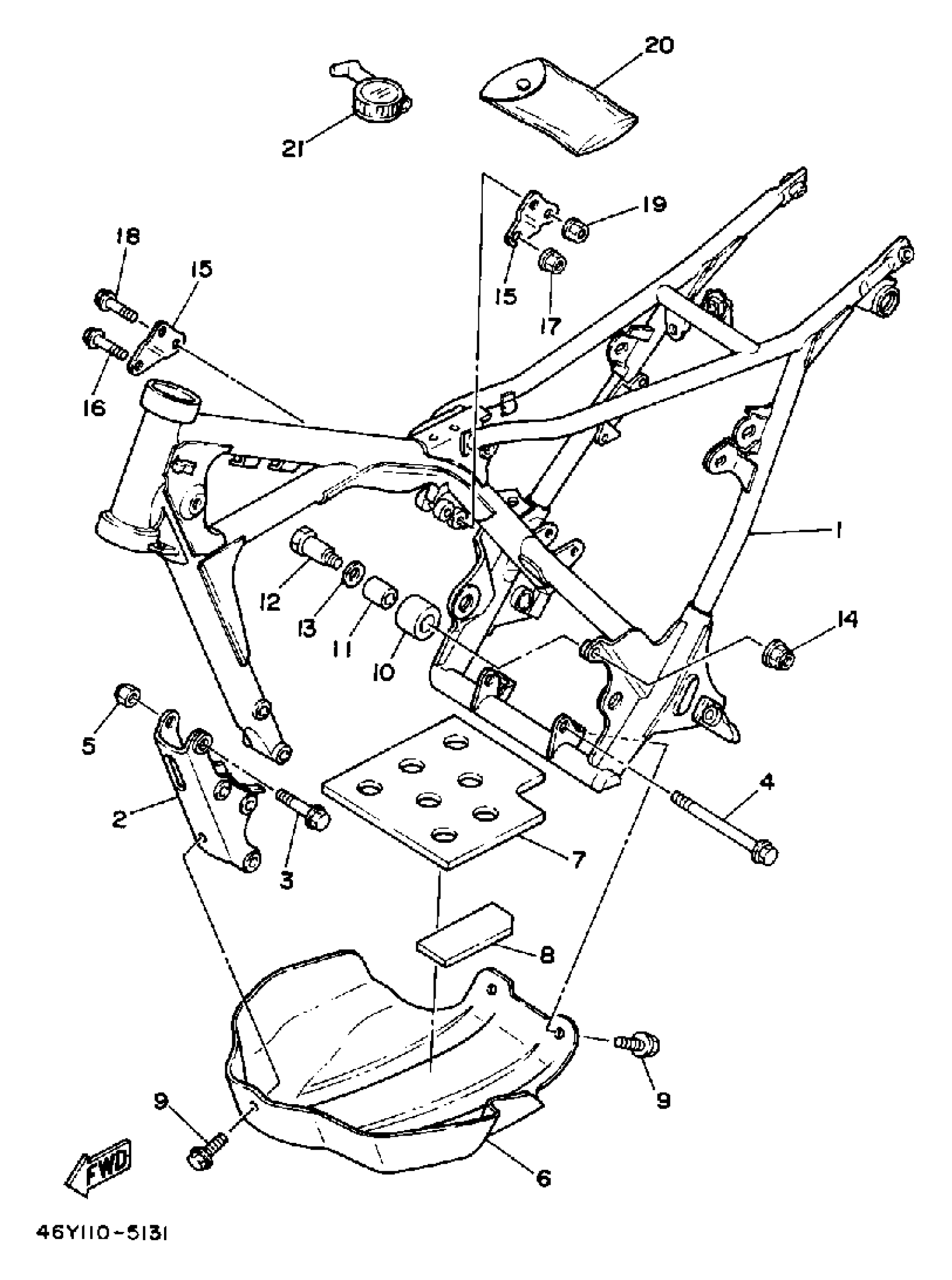

Find the part on the Frame diagram for your 1986 Yamaha Trial (TY350S), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

1986 Yamaha Trial (TY350S) Frame Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

FRAME

(1VY-21110-00-FH)

1
Out of stock

2

STAY, ENGINE 3

(38V-21316-00-FH)

1
Out of stock

3

BOLT, FLANGE

95814-08065-00

1

$3.54

In stock

4

BOLT, FLANGE(4EM)

95817-08120-00

1

$3.83

In stock

5

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

6

PROTECTOR, ENGINE

4AJ-21471-00-00

1
Out of stock

7

DAMPER, RUBBER 1

(38V-21485-01-00)

1
Out of stock

8

DAMPER 2

38V-21486-00-00

1
Out of stock

9

BOLT, FLANGE(JN5)

95817-08016-00

1

$4.12

In stock

10

TENSIONER

5X6-22178-00-00

1
Out of stock

11

BUSH

4V4-22184-00-00

1

$3.57

In stock

12

BOLT (23X)

90109-08705-00

1

$12.78

In stock

13

WASHER, PLATE

90201-13013-00

1

$6.29

In stock

14

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

15

STAY, ENGINE 2

(53Y-21315-01-00)

1
Out of stock

16

BOLT, FLANGE

95817-08055-00

—

$2.82

In stock

17

NUT, SELF-LOCKING

90185-08169-00

1

$7.09

In stock

18

BOLT, FLANGE

95817-06050-00

—
Out of stock

19

NUT (21W)

90179-06403-00

1
Out of stock

20

TOOL KIT

4ML-28100-00-00

1
Out of stock

21

GAUGE, AIR

(38V-2811A-00-00)

1
Out of stock
