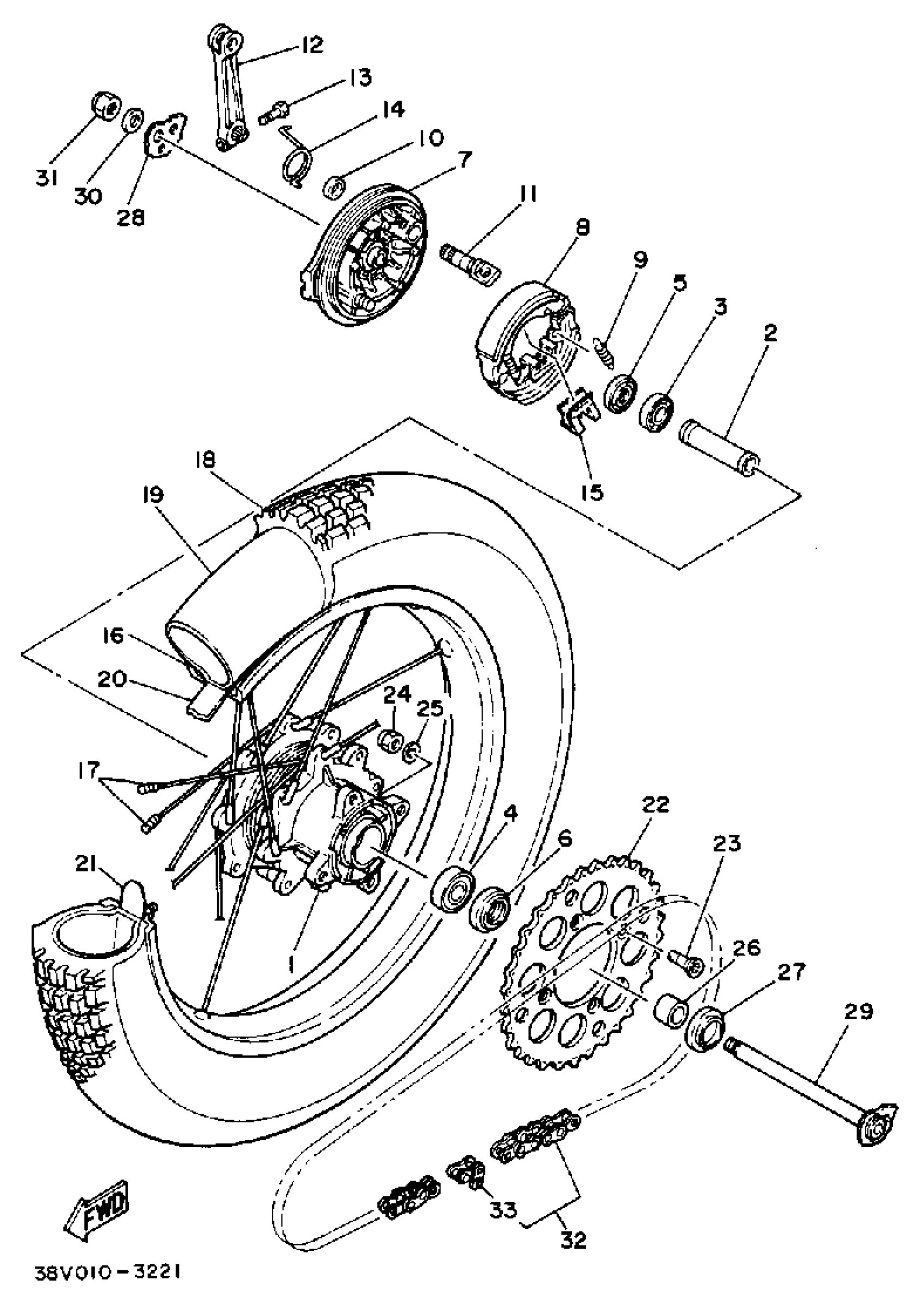

Yamaha TY350S (TRIAL) 1986 REAR WHEEL Diagram

#

Description
Price

1

HUB, REAR

38V-25311-02-98

Unavailable

2

SPACER

90560-15314-00

Unavailable

3

BRG,R-B 6202Z 35MM 48G NT

93306-20204-00

$22.99

4

BEARING

93306-30212-00

$40.99

5

OIL SEAL (22X35X5)

93104-22018-00

$11.49

6

SEAL,OIL

93106-26005-00

$7.20

7

PLATE, BRAKE SHOE

38V-25321-02-98

Unavailable

8

BRAKESHOE SET

22F-W2534-00-00

Unavailable

9

SPRING, TENSION (566).

90506-16150-00

$9.49

10

OIL SEAL (2K8)

93109-14021-00

$13.49

11

CAMSHAFT

4GL-25351-00-00

$68.99

12

. LEVER, CAMSHAFT (168-25355-00)

4V5-25355-00-00

Unavailable

13

BOLT, HEXAGON (462)

90101-06291-00

$8.49

14

SPRING, TORSION 46Y

90508-26637-00

Unavailable

15

CLIP, SHOE

38V-2514H-00-00

Unavailable

16

RIM 2.10-18 46Y

(94421-18377-00)

Unavailable

17

SPOKE SET, REAR

38V-25304-00-00

Unavailable

18

400-18 MICH. TRLS.

94140-186E0-00

Unavailable

19

TUBE (5A8)

94212-18188-00

Unavailable

20

BAND, RIM (2J4)

94340-18086-00

Unavailable

21

SPACER,BEAD

1T1-25394-01-00

Unavailable

22

SPROCKET, DRIVN 35T

38V-25435-00-00

Unavailable

22

SPROCKET,DRIVN 42T

38V-25442-01-00

Unavailable

23

BOLT(3RB)

90109-081G1-00

Unavailable

24

NUT, U

95617-08100-00

Unavailable

25

WASHER, PLATE(3XP)

90201-086P8-00

Unavailable

26

COLLAR 46Y

90387-150K4-00

Unavailable

27

COVER, DUST

401-25367-00-00

Unavailable

28

PULLER, CHAIN 1

38V-25388-00-00

Unavailable

29

AXLE, WHEEL

38V-25381-00-00

Unavailable

30

WASHER PLATE (3L6)

90201-14740-00

Unavailable

31

NUT, SELF-LOCKING (1J7)

90185-14070-00

Unavailable

32

CHAIN (1LW)

(94585-20092-00)

Unavailable

33

JOINT, CHAIN

94681-68001-00

Unavailable
