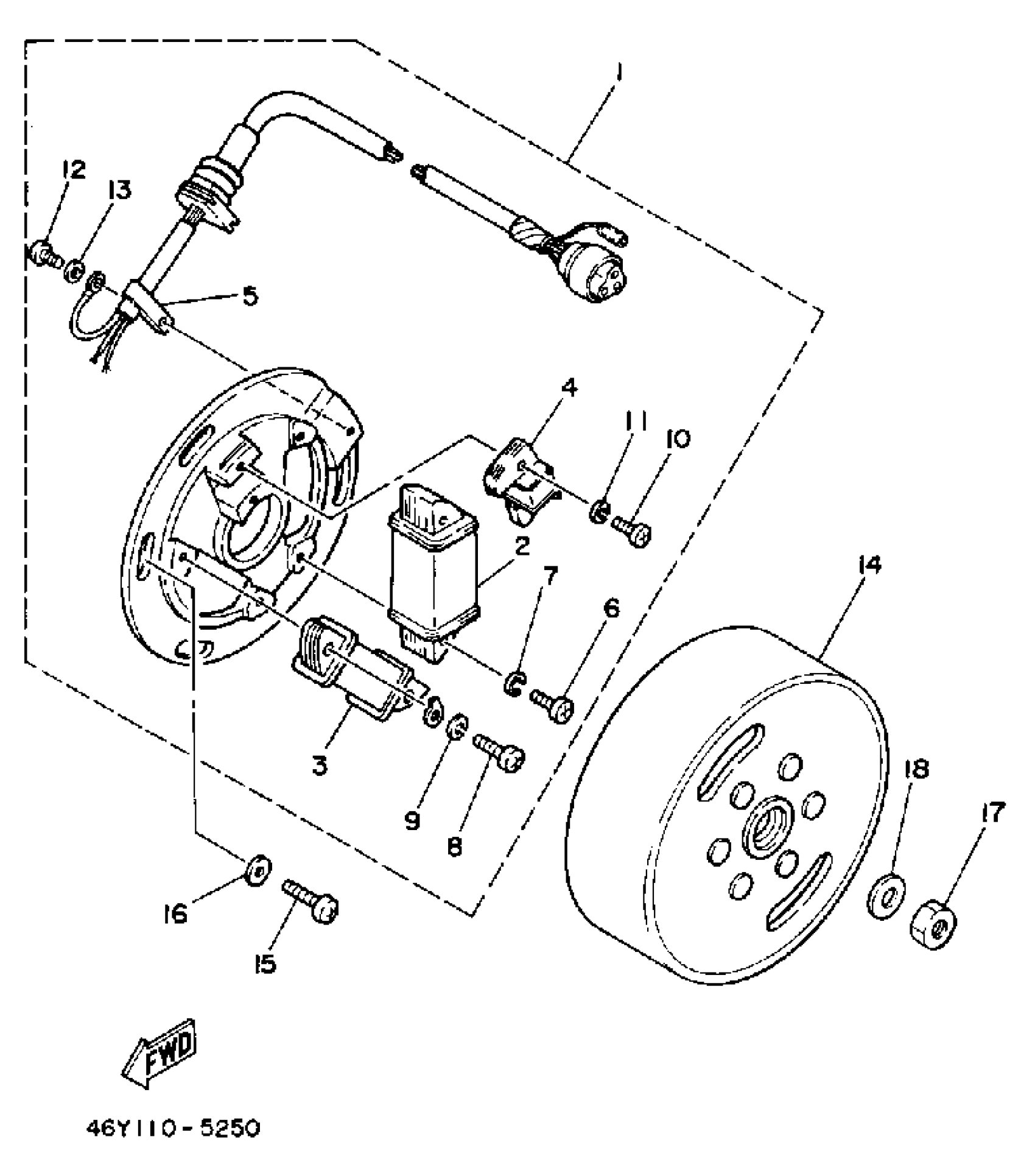

Yamaha TY350S (TRIAL) 1986 GENERATOR Diagram

#

Description
Price

1

ROTOR ASSEMBLY

46Y-85550-20-00

Unavailable

2

. COIL SOURCE 2

2X9-85512-20-00

Unavailable

3

COIL, LIGHTING 1

(1W5-85513-20-00)

Unavailable

4

. COIL, PULSER

2X9-85580-20-00

Unavailable

5

CLAMP, READ

445-81328-20-00

Unavailable

6

SCREW, PAN HEAD(4MY)

98507-05018-00

$3.28

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

SCREW, PANHEAD (A93)

98580-05525-00

$2.00

9

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

10

SCREW, PAN HEAD(GA5)

98580-04014-00

$4.51

11

WASHER, PLAIN (646)

92990-04600-00

$5.99

12

SCREW, PAN HEAD(3XP)

98517-04006-00

Unavailable

13

WASHER, PLAIN (646)

92990-04600-00

$5.99

14

ROTOR ASSEMBLY

46Y-85550-20-00

Unavailable

15

SCREW, PAN

98507-06014-00

$8.49

16

WASHER, PLATE (4H7)

90201-061A5-00

Unavailable

17

NUT(55K)

90170-12347-00

Unavailable

18

WASHER, PLATE (583)

90201-12593-00

Unavailable
