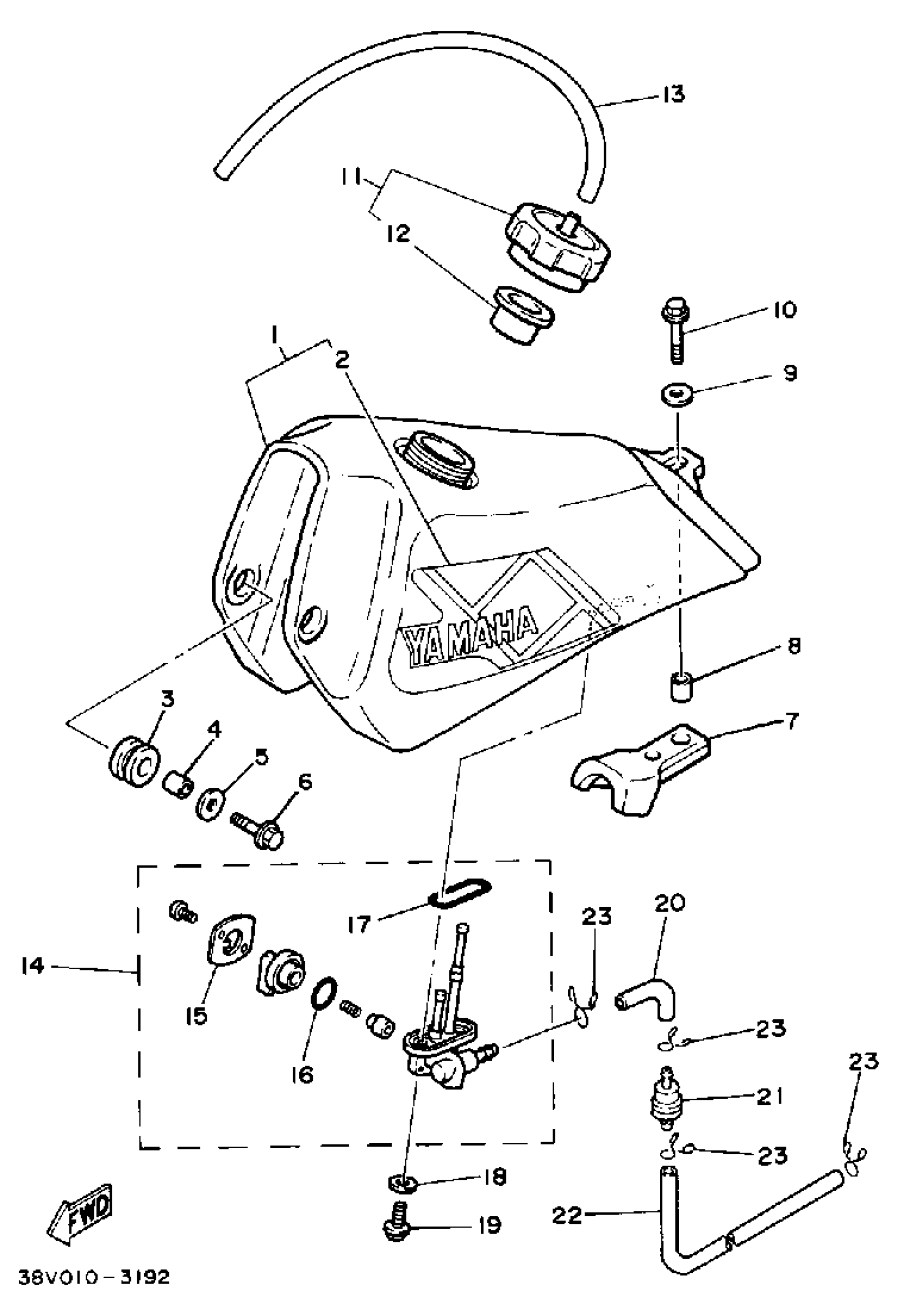

Yamaha TY350S (TRIAL) 1986 FUEL TANK Diagram

FUEL TANK COMP (38VC-24110-00-00)

38V-24110-02-01

Unavailable

. GRAPHIC SET

38V-24250-01-00

Unavailable

GROMMET (4V1)

90480-18290-00

$8.49

COLLAR (1T2)

90387-07598-00

$5.60

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

BOLT, FLANGE

95822-06025-00

$1.75

DAMPER, LOCATING 1

(38V-24181-00-00)

Unavailable

SPACER

90560-07007-00

$9.49

WASHER, PLATE

90201-06020-00

$9.49

BOLT, FLANGE

95822-06025-00

$1.75

CAP ASSEMBLY

38V-24610-00-00

Unavailable

GASKET, CAP

(38V-24612-00-00)

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

FUEL COCK ASSY 1

55X-24500-02-00

$42.99

. PLATE, LVR FITTING

4V5-24525-00-00

Unavailable

O-RING

4X8-24534-00-00

Unavailable

O-RING

4X8-24512-00-00

Unavailable

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

SCREW 256241430000

90149-06011-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

FILTER ASSY

4N0-24560-00-00

Unavailable

HOSE (L420)

90445-092K1-00

$12.49

CLIP 101235600

90467-08003-00

Unavailable
