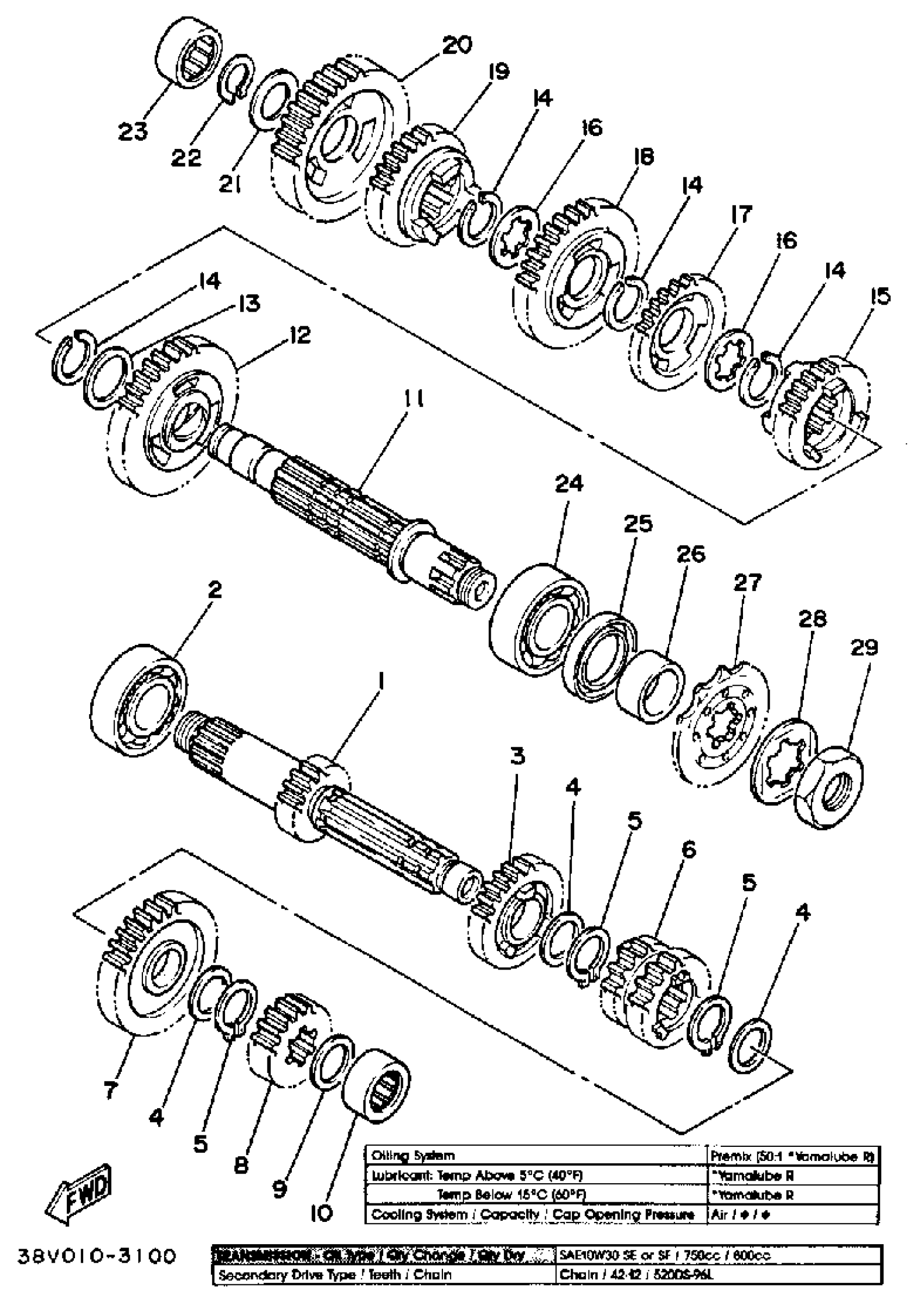

Yamaha TY350N (TRIAL) 1985 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(38V-17411-00-00)

Unavailable

2

BEARING (23X)

93300-20501-00

$70.99

3

GEAR, 5TH PINION

(38V-17151-00-00)

Unavailable

4

WASHER, PLATE (537)

90201-22555-00

$8.49

5

CIRCLIP (537)

93410-22039-00

$8.49

6

GEAR, 3RD PINION

(38V-17131-00-00)

Unavailable

7

GEAR, 6TH PINION

(38V-17161-00-00)

Unavailable

8

GEAR, 2ND PINION

(38V-17121-00-00)

Unavailable

9

WASHER, PLATE (30X)

90201-177G4-00

$9.49

10

BRG,CYL-CAL ROLLER 41.5G KY

93311-41734-00

$73.99

11

AXLE, DRIVE

1RX-17421-00-00

Unavailable

12

GEAR, 2ND WHEEL

38V-17221-00-00

Unavailable

13

WASHER, PLATE(59W)

90201-253K0-00

$8.49

14

CIRCLIP (4L0)

93440-25084-00

$5.60

15

GEAR, 6TH WHEEL

(38V-17261-00-00)

Unavailable

16

WASHER 434172160000

90209-22082-00

Unavailable

17

GEAR, 4TH WHEEL

38V-17241-00-00

Unavailable

18

GEAR, 3RD WHEEL

(38V-17231-00-00)

Unavailable

19

GEAR, 5TH WHEEL

(38V-17251-00-00)

Unavailable

20

GEAR, 1ST WHEEL

(38V-17211-00-00)

Unavailable

21

WASHER PLATE 168171160000

90201-20278-00

Unavailable

22

CIRCLIP (525)

93410-20038-00

Unavailable

23

BEARING (2X7)

93311-62035-00

Unavailable

24

BEARING (23X)

93300-20501-00

$70.99

25

OIL SEAL (697)

93102-32M07-00

Unavailable

26

COLLAR

90387-250K3-00

Unavailable

27

SPROCKET, DRIVE 11T

93834-11008-00

Unavailable

27

SPROCKET,DRIVE 12T(38V1746120)

93834-12016-00

Unavailable

27

SPROCKET, DRIVE (13T)(4RF)

93834-13206-00

Unavailable

28

WASHER, LOCK (23X)

90215-21239-00

Unavailable

29

NUT (2K7)

90179-20255-00

Unavailable
