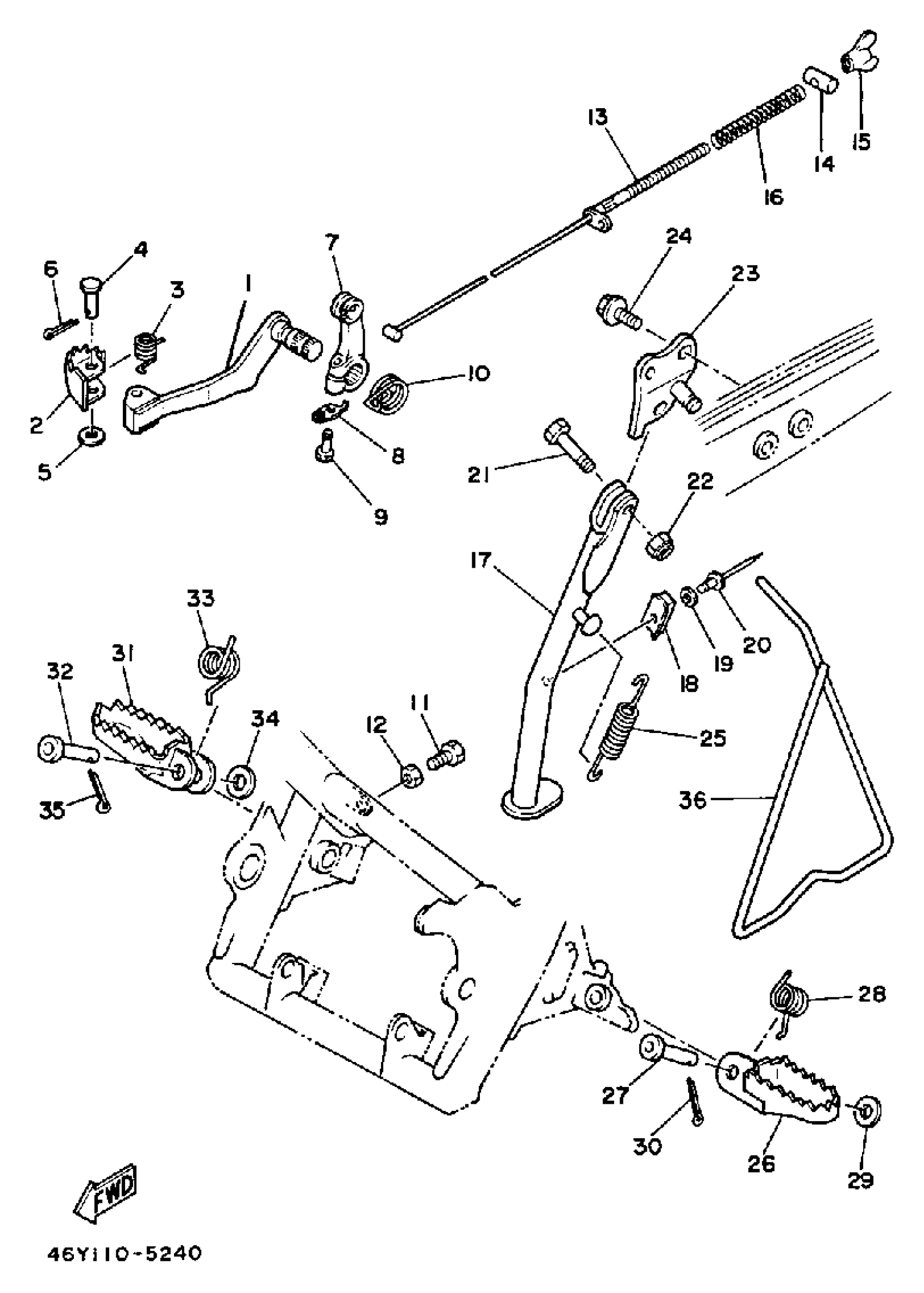

Yamaha TY350N (TRIAL) 1985 STAND - FOOTREST Diagram

#

Description
Price

1

PEDAL, BRAKE

44J-27211-00-00

Unavailable

2

PEDAL, BRAKE

3R8-27242-00-00

Unavailable

3

SPRING, TORSION

90508-14429-00

Unavailable

4

PIN, CLEVIS

91702-06028-00

$7.49

5

WASHER, PLATE (4H7)

90201-061A5-00

$7.49

6

PIN, COTTER

91490-20025-00

$1.99

7

LEVER, BRAKE PEDAL

53Y-27252-00-00

Unavailable

8

HOOK

(53Y-27254-00-00)

Unavailable

9

BOLT, HEXAGON (462)

90101-06291-00

$8.49

10

SPRING, TORSION 46Y

90508-23636-00

Unavailable

11

BOLT, HEXAGON DEEP RECESS

97D95-06016-00

$2.76

12

NUT(650)

95380-06700-00

$8.49

13

CABLE, BRAKE

38V-26351-00-00

Unavailable

14

PIN 1562723700

90249-12008-00

$8.49

15

NUT, WING (1K5)

90175-06013-00

$4.88

16

SPRING, COMPRESS46Y

90501-090A7-00

Unavailable

17

STAND, SIDE

38V-27311-20-35

Unavailable

18

DAMPER, RUBBER 1

34K-21485-00-00

Unavailable

19

WASHER, PLATE(26H)

90201-044H9-00

Unavailable

20

RIVET,BLIND

90267-40080-00

Unavailable

21

BOLT 1092537300

90109-08063-00

Unavailable

22

NUT

90185-08055-00

Unavailable

23

BRACKET, SIDE STAND

38V-27321-00-00

Unavailable

24

BOLT, WASHER BASED

90105-08287-00

Unavailable

25

SPRING TENSION 150273160000

90506-25047-00

Unavailable

26

FOOTREST 1

38V-27411-00-00

Unavailable

27

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

28

SPRING, TORSION 46Y

90508-20634-00

Unavailable

29

WASHER, PLAIN(735)

90201-10119-00

Unavailable

30

PIN, COTTER

91490-25020-00

Unavailable

31

FOOTREST 2

38V-27421-00-00

Unavailable

32

PIN, CLEVIS (23X)

90240-10101-00

Unavailable

33

SPRING, TORSION 46Y

90508-20635-00

Unavailable

34

WASHER, PLAIN(735)

90201-10119-00

Unavailable

35

PIN, COTTER

91490-25020-00

Unavailable

36

STAND, SIDE

(38V-27311-11-00)

Unavailable
