1985 Yamaha Trial (TY350N) Intake Diagram

← All diagrams

Find the part on the Intake diagram for your 1985 Yamaha Trial (TY350N), then match its number to the list below. Each line shows the OEM part number, price per piece and stock status. Click a number on the drawing to jump straight to its line. If a part shows up more than once in the assembly, order as many as you need.

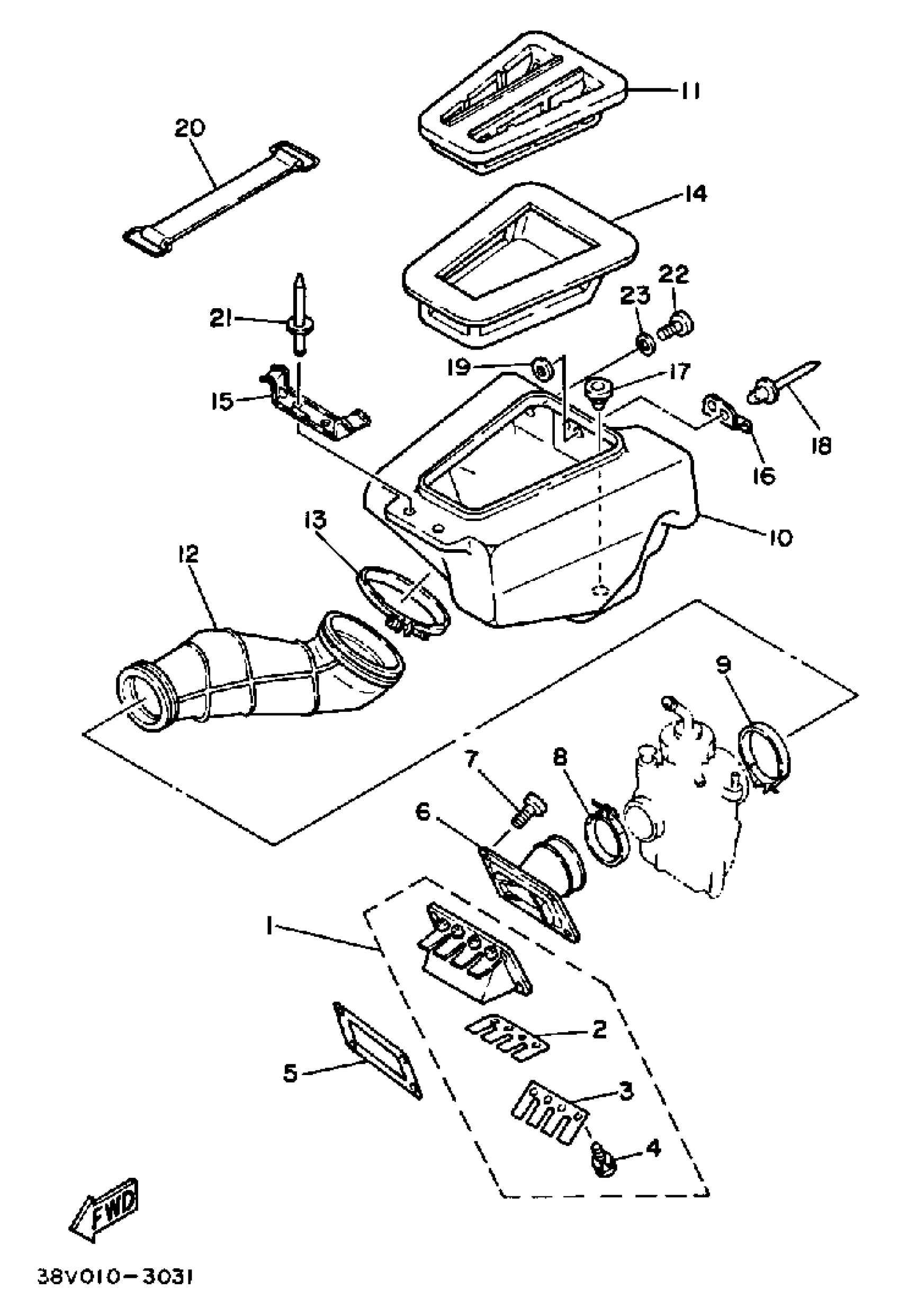

1985 Yamaha Trial (TY350N) Intake Diagram

#

Description
Qty in Assembly
Price
Status
Order Qty

1

REED VALVE ASSY

46Y-13610-00-00

1
Out of stock

2

REED, VALVE

8AT-13613-00-00

1

$28.12

In stock

3

STOPPER, REED VALVE

(46Y-13616-00-00)

1
Out of stock

4

SCREW, PAN HEAD (J10)

98580-03008-00

1

$2.23

In stock

5

GASKET, MANIFOLD

8Y7-13556-01-00

1

$6.92

In stock

6

JOINT, CARBURETOR

38V-13565-00-00

1
Out of stock

7

BOLT,SOCKET

91317-06020-00

—

$2.11

In stock

8

CLAMP, HOSE (5H0)

90460-43179-00

1

$16.69

In stock

9

CLAMP HOSE 278144550000

90460-49058-00

1
Out of stock

10

CASE, AIR CLEANER 1

38V-14411-00-00

1
Out of stock

11

CAP, CLEAN CASE 1

38V-14412-00-00

1
Out of stock

12

JOINT,AIR CLEAN 1

38V-14453-00-00

1
Out of stock

13

CLAMP, HOSE

90460-01186-00

1
Out of stock

14

ELEMENT, AIR CLEANER

38V-14451-01-00

1
Out of stock

15

STAY 1

(38V-14493-00-00)

1
Out of stock

16

HOOK

26A-14436-00-00

1
Out of stock

17

GROMMET

(90480-09211-00)

1
Out of stock

18

RIVET, BLIND

90267-40029-00

—

$6.68

In stock

19

YBS66-4 WASHER, PLAIN

92990-04200-00

—

$1.10

In stock

20

BAND, BATTERY

133-82131-00-00

—

$21.78

In stock

21

RIVET, BLIND 46Y

(90267-40043-00)

1
Out of stock

22

SCREW, PAN HEAD(62J)

97885-06012-00

1

$2.90

In stock

23

WASHER, SPRING

92995-06100-00

1

$2.99

In stock
