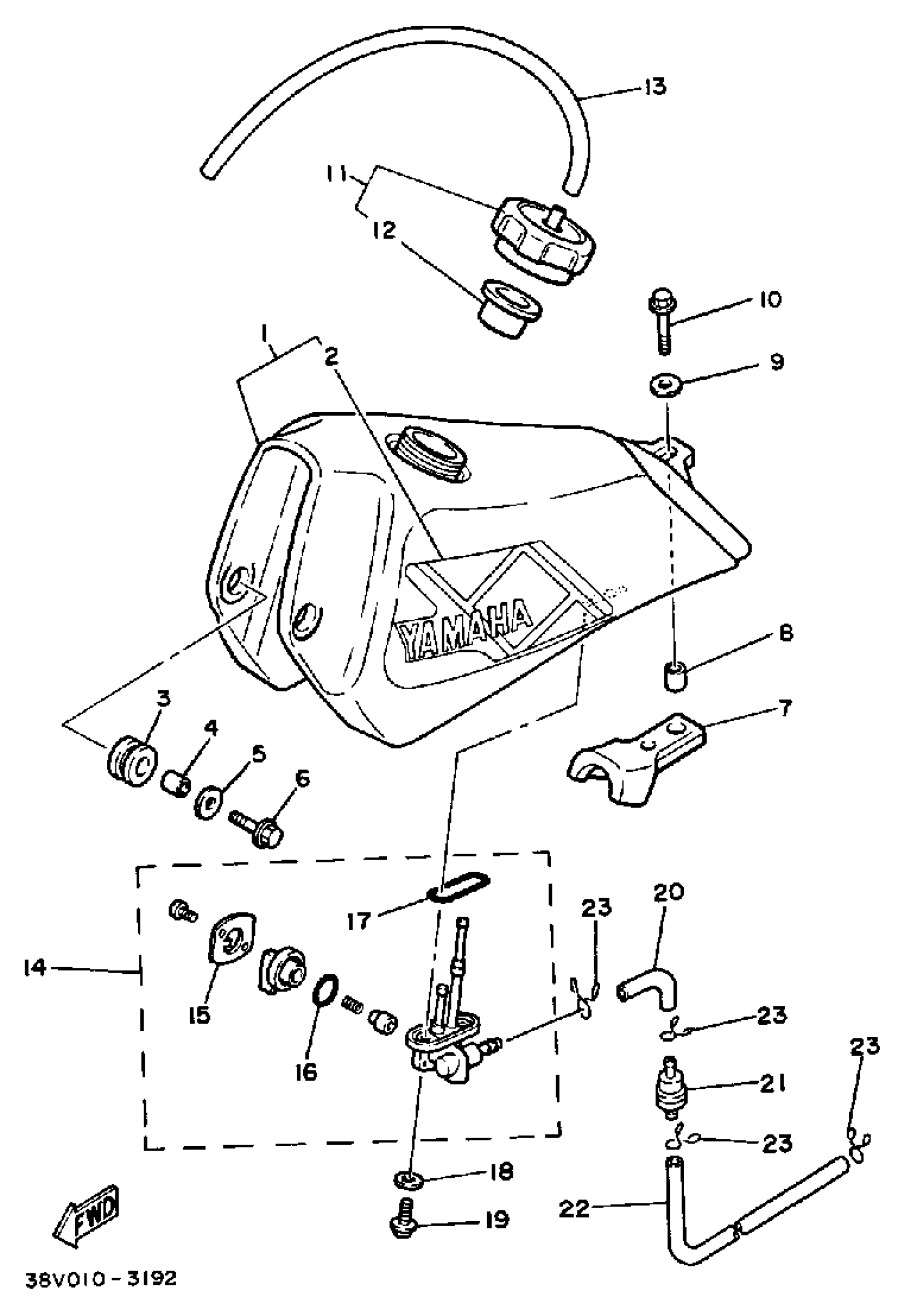

Yamaha TY350N (TRIAL) 1985 FUEL TANK Diagram

#

Description
Price

1

FUEL TANK COMP (38VC-24110-00-00)

38V-24110-02-01

Unavailable

2

. GRAPHIC SET

38V-24250-01-00

Unavailable

3

GROMMET (4V1)

90480-18290-00

$8.49

4

COLLAR (1T2)

90387-07598-00

$5.60

5

WASHER, PLATE (583 REAR FENDER

90201-06571-00

$9.49

6

BOLT, FLANGE

95822-06025-00

$1.75

7

UNAVAILABLE IN PRICE BOOK

38V-14181-00-00

Unavailable

8

SPACER

90560-07007-00

$9.49

9

WASHER, PLATE

90201-06020-00

$9.49

10

BOLT, FLANGE

95822-06025-00

$1.75

11

CAP ASSEMBLY

38V-24610-00-00

Unavailable

12

GASKET, CAP

(38V-24612-00-00)

Unavailable

13

HOSE (L420)

90445-092K1-00

$12.49

14

FUEL COCK ASSY 1

55X-24500-02-00

$42.99

15

. PLATE, LVR FITTING

4V5-24525-00-00

Unavailable

16

O-RING

4X8-24534-00-00

Unavailable

17

O-RING

4X8-24512-00-00

Unavailable

18

WASHER, PLATE(3MB)

90202-05187-00

Unavailable

19

SCREW 256241430000

90149-06011-00

Unavailable

20

HOSE (L420)

90445-092K1-00

$12.49

21

FILTER ASSY

4N0-24560-00-00

Unavailable

22

HOSE (L420)

90445-092K1-00

$12.49

23

CLIP 101235600

90467-08003-00

Unavailable
