Description

Price

1

PISTON STD

46Y-11631-00-X0

Unavailable

2

PISTON RINGSET STD

46Y-11601-00-00

Unavailable

3

PIN, PISTON

275-11633-00-00

$35.99

4

CLIP 6041163400

93450-20026-00

$8.49

5

BEARING,CON-ROD SMALLEND(2X5)

93310-418E9-00

$48.99

6

CRANKSHAFT ASSEMBLY

38V-11400-00-00

Unavailable

7

CRANK 1

(38V-11412-00-00)

Unavailable

8

CRANK 2

(38V-11422-00-00)

Unavailable

9

PIN, CRANK

3R8-11681-00-00

$46.99

10

. ROD, CONNECTING

24Y-11651-01-00

Unavailable

11

BEARING, CYLINDRICAL(4JW)

93310-425P2-00

Unavailable

12

WASHER 275116850000

90209-25085-00

$12.49

13

BEARING (5X5)

93306-20627-00

$75.99

14

OIL SEAL(38V)

93103-30150-00

$22.99

15

KEY, WOODRUFF

90280-05001-00

$12.49

16

BEARING (5X5)

93306-20627-00

$75.99

17

OIL SEAL (434)

93103-40091-00

Unavailable

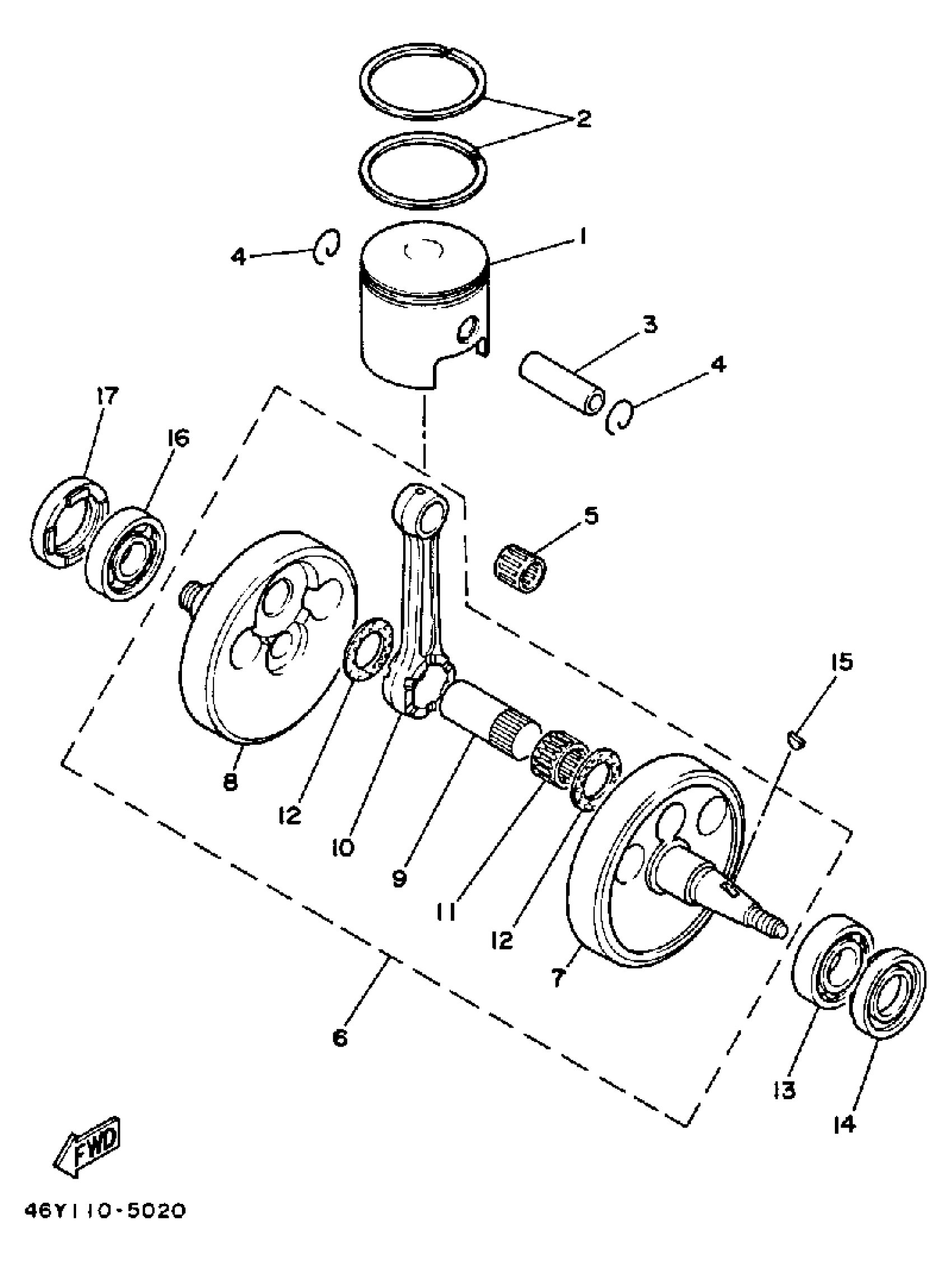

Yamaha TY350N (TRIAL) 1985 CRANKSHAFT - PISTON Diagram

PISTON STD

PISTON RINGSET STD

PIN, PISTON

CLIP 6041163400

BEARING,CON-ROD SMALLEND(2X5)

CRANKSHAFT ASSEMBLY

CRANK 1

CRANK 2

PIN, CRANK

. ROD, CONNECTING

BEARING, CYLINDRICAL(4JW)

WASHER 275116850000

BEARING (5X5)

OIL SEAL(38V)

KEY, WOODRUFF

BEARING (5X5)

OIL SEAL (434)
