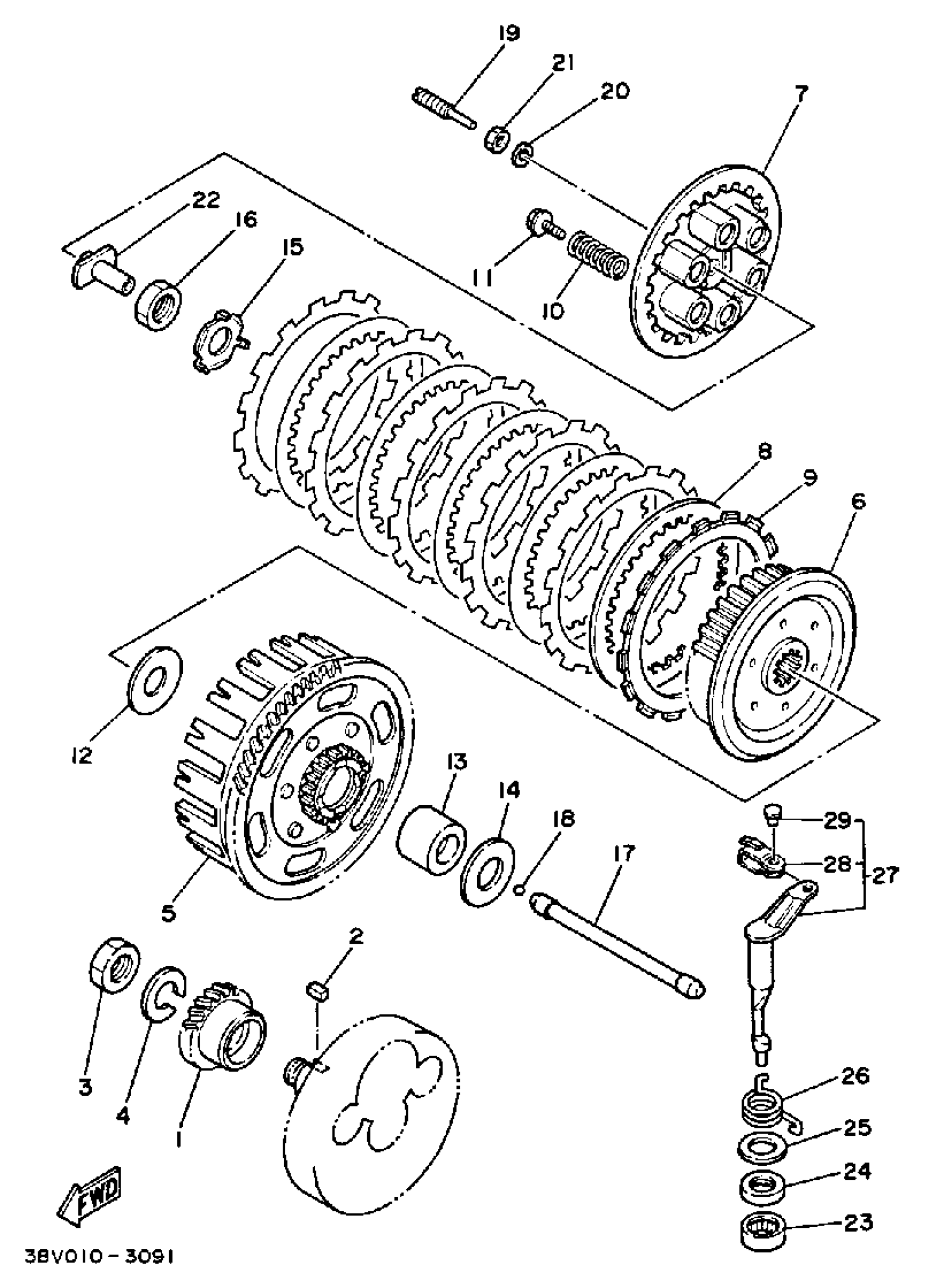

Yamaha TY350N (TRIAL) 1985 CLUTCH Diagram
#
Description
Price
1
GEAR, PRIMARY DRIVE
38V-16111-00-00
Unavailable
3
NUT
90170-18089-00
Unavailable
5
PRIMARY DRIVN GEAR
38V-16150-00-00
Unavailable
6
BOSS, CLUTCH
38V-16371-00-00
Unavailable
7
PLATE, PRESSURE 1
38V-16351-00-00
Unavailable
10
SPRING, COMPRESSION
90501-236A3-00
Unavailable
13
SPACER 1
2K7-16181-00-00
Unavailable
15
WASHER, LOCK (26J)
90215-20212-00
Unavailable
16
NUT (3R4)
90170-20255-00
Unavailable
17
ROD, PUSH 2
2K7-16357-01-00
Unavailable
18
BALL (1M1)
93515-32029-00
Unavailable
19
SCREW, SPEC''L SHAPE
90149-06123-00
Unavailable
20
WASHER, SPRING
92995-06100-00
Unavailable
21
NUT, HEXAGON
95380-06600-00
Unavailable
22
ROD, PUSH 1
23X-16356-00-00
Unavailable
23
BRG,CYL-CAL ROLLER 12G KY
93315-21721-00
Unavailable
24
OIL SEAL (15A)
93102-17263-00
Unavailable
25
WASHER PLATE 168217580000
90201-18262-00
Unavailable
26
SPRING, TORSION 46Y
90508-14664-00
Unavailable
27
PUSH LEVER ASSEMBLY
38V-16380-00-00
Unavailable
28
JOINT
214-16389-00-00
Unavailable
29
PIN (558)
90243-06016-00
Unavailable
