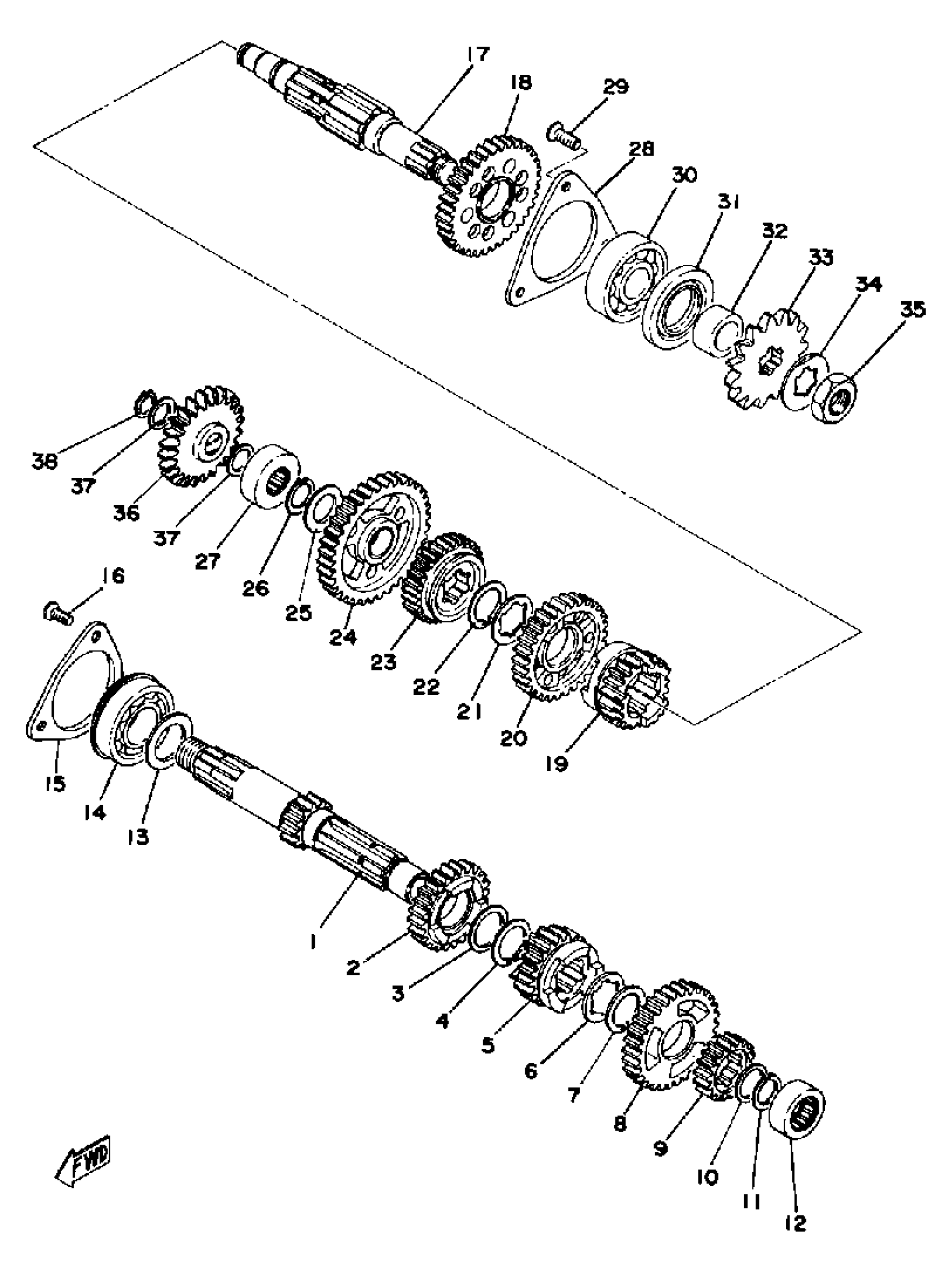

Yamaha TY250D (TY250) 1977 TRANSMISSION Diagram

#

Description
Price

1

AXLE, MAIN

(493-17411-00-00)

Unavailable

2

GEAR, 4TH PINION

(434-17141-01-00)

Unavailable

3

WASHER, PLATE(59W)

90201-253K0-00

$8.49

4

1 CIRCLIP, OUTER

93440-25027-00

Unavailable

5

GEAR, 3RD PINION

(434-17131-01-00)

Unavailable

6

WASHER 434172160000

90209-22082-00

Unavailable

7

GEAR, 5TH PINION

(434-17151-00-00)

Unavailable

7

CIRCLIP (4L0)

93440-25084-00

$5.60

9

GEAR, 2ND PINION

(434-17121-00-00)

Unavailable

10

WASHER PLATE 132172160000

90201-20266-00

$9.49

11

CIRCLIP(1EY)

99009-19400-00

$8.49

12

UNAVAILABLE IN PRICE BOOK

93111-42018-00

Unavailable

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

13

SHIM, DRIVE AXLE (0.5)

168-17428-01-05

$5.49

14

BEARING (93306-20515)

93306-20535-00

Unavailable

15

PLATE, BRNG COVER

(363-15383-00-00)

Unavailable

16

SCREW, FLAT

98707-06014-00

Unavailable

17

AXLE, DRIVE

(434-17421-00-00)

Unavailable

18

GEAR, 2ND WHEEL

(434-17221-01-00)

Unavailable

19

GEAR, 5TH WHEEL

(434-17251-01-00)

Unavailable

20

GEAR, 3RD WHEEL

(434-17231-02-00)

Unavailable

21

WASHER 434172160000

90209-22082-00

Unavailable

22

CIRCLIP (4L0)

93440-25084-00

$5.60

23

GEAR, 4TH WHEEL

(434-17241-00-00)

Unavailable

24

GEAR, 1ST WHEEL

(434-17211-00-00)

Unavailable

25

WASHER PLATE 168171160000

90201-20278-00

Unavailable

26

CIRCLIP(1EY)

99009-19400-00

$8.49

27

BEARING

93313-31709-00

Unavailable

28

PLATE, BRNG COVER

(493-15381-00-00)

Unavailable

29

SCREW, OVAL HEAD (92701-06012)

98603-06012-00

Unavailable

30

BRG,R-B 6304 52MM 150G NT

93306-30411-00

Unavailable

31

OIL SEAL (28X52X6-137)

93102-28023-00

Unavailable

32

COLLAR

(90387-20437-00)

Unavailable

33

SPROCKET, DRIVE (13T)

93822-13213-00

Unavailable

33

SPROCKET,DRIVE 14T(5N01746141)

93822-14043-00

Unavailable

33

SPROCKET,DRIVE 15T(1741746150)

93822-15065-00

Unavailable

34

WASHER, LOCK (1L8)

90215-16127-00

Unavailable

35

NUT,SPEC'L SHAPE

90179-16018-00

Unavailable

36

GEAR, KICK IDLE

(434-15651-00-00)

Unavailable

37

SHIM, MAIN AXLE (1.0)

164-17417-00-10

Unavailable

38

CIRCLIP(1AR)

99009-15400-00

Unavailable
