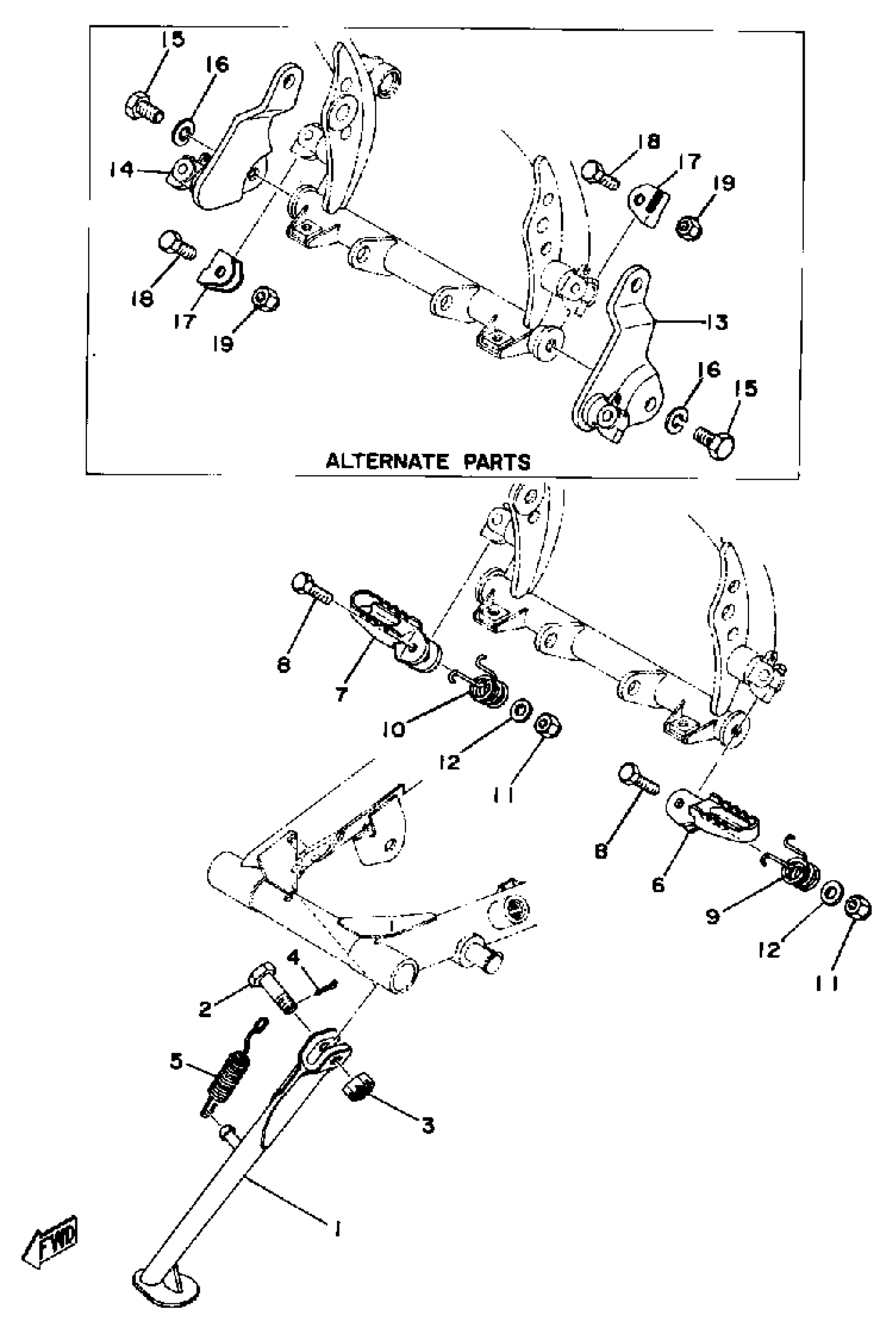

Yamaha TY250D (TY250) 1977 STAND-FOOTREST Diagram

#

Description
Price

1

STAND, SIDE

493-27311-00-35

Unavailable

2

BOLT, HEXAGON (278-2731700)

90102-10006-00

$10.49

3

NUT, CASTLE

95307-10900-00

Unavailable

4

PIN, COTTER

91490-20025-00

$1.99

5

SPRING (434)

90507-29008-00

$28.99

6

FOOTREST 1

434-27411-00-35

Unavailable

7

FOOTREST 2

434-27421-00-35

Unavailable

8

BOLT

90101-08250-00

Unavailable

9

SPRING, TORSION

90508-26138-00

Unavailable

10

SPRING, TORSION

90508-26139-00

Unavailable

11

NUT, U

95617-08100-00

$9.49

12

WASHER (8A7)

90201-08452-00

$5.60

13

BRACKET, FOOTREST 1

(493-27412-10-00)

Unavailable

14

BRACKET, FOOTREST 2

(493-27422-10-00)

Unavailable

15

BOLT

97027-10018-00

Unavailable

16

YBS67-10 WASHER, SPRING

92990-10100-00

Unavailable

17

COVER, FOOTREST

(493-27413-10-00)

Unavailable

18

BOLT, HEXAGON

97013-08030-00

Unavailable

19

NUT, U

95617-08100-00

$9.49
