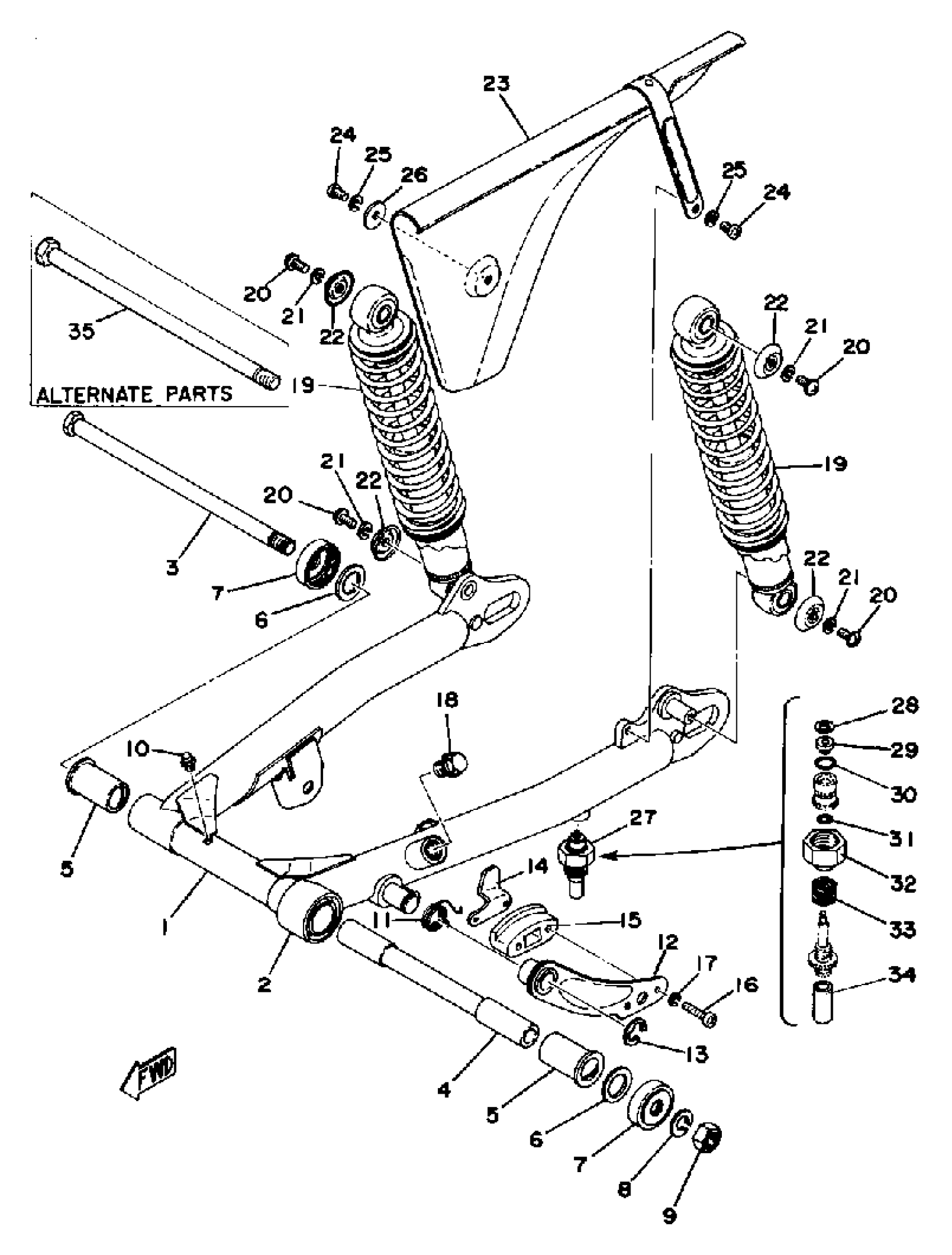

Yamaha TY250D (TY250) 1977 REAR ARM-REAR CUSHION-CHAIN CASE Diagram

#

Description
Price

1

REAR ARM

(493-22110-02-35)

Unavailable

2

SEAL, GUARD

(434-22151-00-00)

Unavailable

3

SHAFT, PIVOT

34X-22141-00-00

Unavailable

4

BUSH 2

434-22124-01-00

Unavailable

5

BUSHING (401-22123-00)

90386-18028-00

$26.99

6

SHIM

401-22127-00-00

$7.99

7

COVER, THRUST 1

401-22128-01-00

$29.99

8

YBS67-12 WASHER,SPRING

92990-12100-00

$8.49

9

NUT, HEXAGON

(90170-12132-00)

Unavailable

10

NIPPLE, GREASE

93700-06005-00

$12.49

11

SPRING, TORSION

90508-32140-00

Unavailable

12

ARM, TENSIONER

(434-22179-00-93)

Unavailable

13

CIRCLIP (137)

93430-10015-00

$9.49

14

GUARD, CHAIN

434-22153-00-00

Unavailable

15

TENSIONER (2N0-22178-00-00)

ACC-11130-00-25

Unavailable

16

SCREW, PANHEAD (A93)

98580-05525-00

Unavailable

17

YBS67-5 WASHER, SPRING

92990-05100-00

Unavailable

18

CAP

(493-21815-00-00)

Unavailable

19

SHK/ABS ASSEMBLY, REAR

(434-22210-01-00)

Unavailable

20

SCREW, BIND(J45)

98980-06012-00

Unavailable

21

WASHER, SPRING

92995-06100-00

Unavailable

22

WASHER, REAR CUSHION (434)

90207-06009-00

Unavailable

23

CASE, CHAIN

(434-22311-00-35)

Unavailable

24

SCREW PAN HEAD

98580-06010-00

Unavailable

25

WASHER, SPRING

92995-06100-00

Unavailable

26

WASHER, PLATE

90201-06380-00

Unavailable

27

CHAIN OILER ASSEMBLY

(434-22280-02-00)

Unavailable

28

NUT, SPRING

(90183-03009-00)

Unavailable

29

GASKET, VALVE

(434-22283-00-00)

Unavailable

30

O-RING

(93210-09091-00)

Unavailable

31

O-RING

93210-05098-00

Unavailable

32

NUT, OILER

(434-22281-01-00)

Unavailable

33

SPRING

(434-22286-00-00)

Unavailable

34

TUBE

(434-22285-00-00)

Unavailable

35

SHAFT, PIVOT

(493-22141-00-00)

Unavailable
