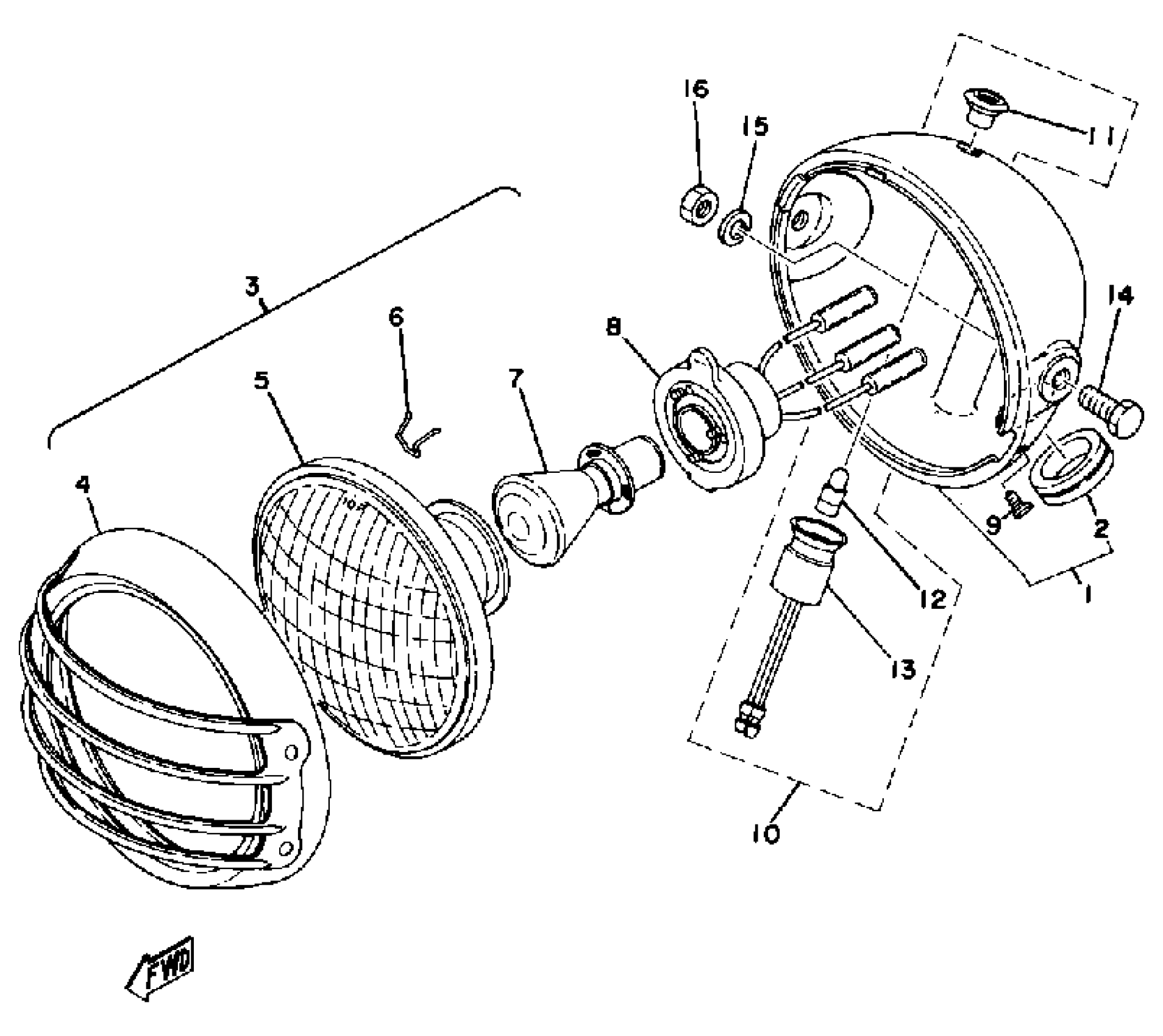

Yamaha TY250D (TY250) 1977 HEAD LAMP Diagram

BODY ASSEMBLY, HEADLIGHT

539-84130-00-36

Unavailable

GROMMET (L)

150-84153-00-00

$19.99

UNAVAILABLE IN PRICE BOOK

493-84110-61-00

Unavailable

. RIM, HEADLIGHT

493-84115-60-00

Unavailable

. LENS ASSEMBLY

434-84120-60-00

Unavailable

SPRING, REFLECTOR SET

195-84324-00-00

$6.99

BULB,HEAD LAMP(6V35/35W)

214-84114-60-00

$23.99

SOCKET

214-84112-61-00

Unavailable

SCREW, OVAL HEAD (1A0)

90152-05005-00

$4.29

PILOT LIGHT ASSEMBLY

214-84101-61-00

Unavailable

BODY, PILOT LIGHT

256-84357-61-00

Unavailable

BULB,METER(6V1.5W)

104-83517-10-00

$8.99

. SOCKET CORD ASSEMBLY 2

214-84150-61-00

Unavailable

BOLT, HEXAGON

97013-08020-00

$1.16

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

NUT(6L2)

95333-08600-00

Unavailable
