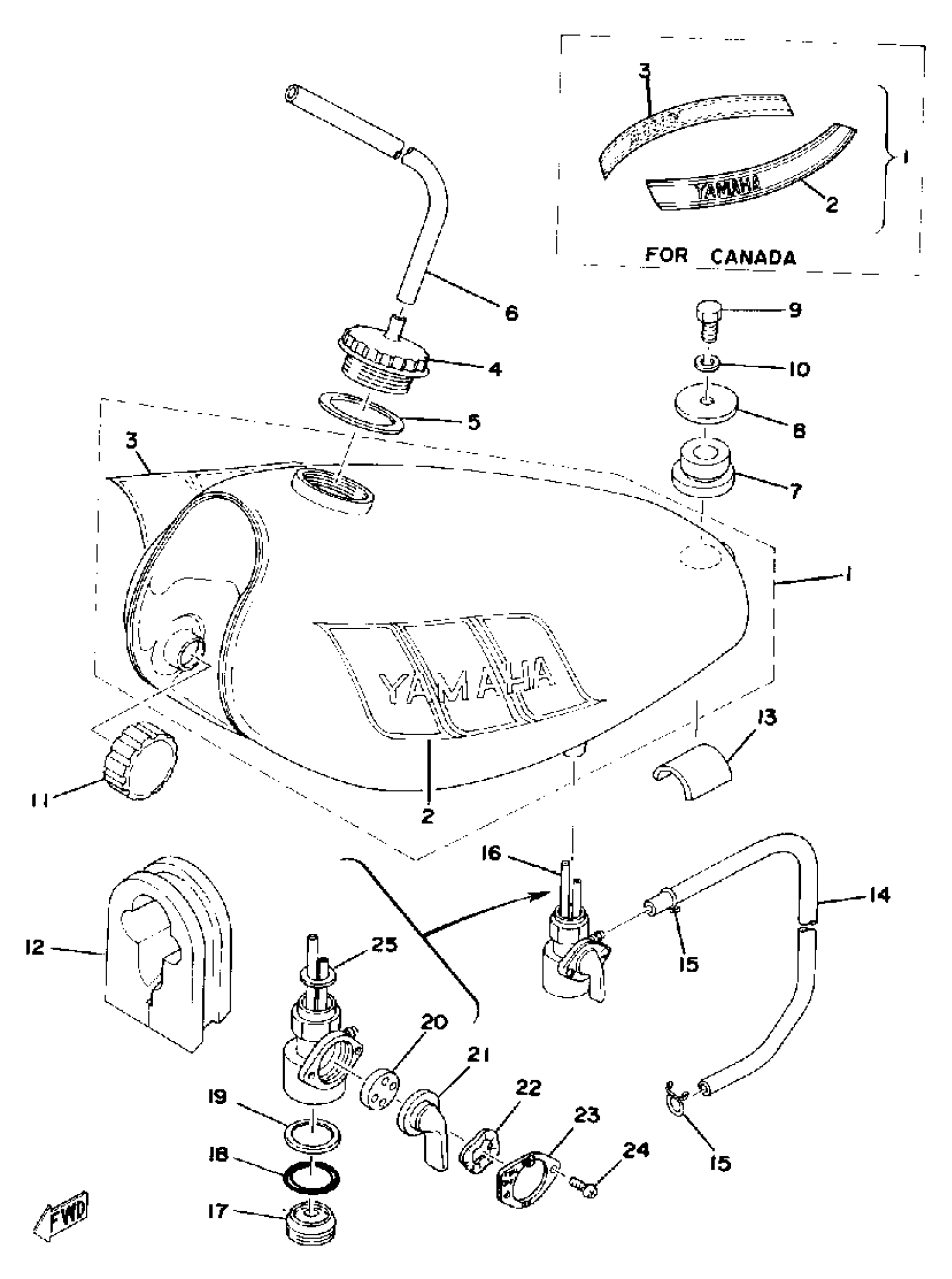

Yamaha TY250D (TY250) 1977 FUEL TANK Diagram

#

Description
Price

1

UNAVAILABLE IN PRICE BOOK

493-24110-00-04

Unavailable

1

FUEL TANK

(493-24110-00-06)

Unavailable

2

GRAPHIC, FUEL TNK 1

(493-24244-20-00)

Unavailable

2

. UNAVAILABLE IN PRICE BOOK

508-24244-00-00

Unavailable

3

. UNAVAILABLE IN PRICE BOOK

408-24245-00-00

Unavailable

3

GRAPHIC, FUEL TNK 2

(493-24245-20-00)

Unavailable

4

BODY, CAP

322-24611-02-00

$57.99

5

GASKET (583 FUEL TANK CAP)

90430-35122-00

Unavailable

6

HOSE (L545)

90445-09361-00

Unavailable

7

DAMPER, FUEL TANK (434)

90480-22054-00

$9.49

8

WASHER

90209-08008-00

$7.49

9

BOLT(JA9)

90101-08691-00

$4.29

10

YBS67-8 WASHER, SPRING

92990-08100-00

$5.60

11

DAMPER, LOCATING 1

3TB-24181-00-00

$14.49

12

DAMPER, LOCATING 3

(434-24183-00-00)

Unavailable

13

DAMPER, LOCATING 4

(493-24184-00-00)

Unavailable

14

HOSE (L420)

90445-092K1-00

Unavailable

15

CLIP (8L2)

90467-08017-00

Unavailable

16

FUEL COCK ASSEMBLY 1

434-24500-03-00

Unavailable

17

CUP, FILTER

(434-24521-00-00)

Unavailable

18

GASKET, FILTER

498-24522-00-00

Unavailable

19

WASHER

(434-24576-00-00)

Unavailable

20

VALVE

137-24523-00-00

Unavailable

21

. LEVER, COCK

447-24524-00-00

Unavailable

22

WASHER, WAVE

132-24518-00-00

Unavailable

23

. PLATE, LEVER FITTING

447-24525-00-00

Unavailable

24

SCREW, PAN HEAD (J10)

98580-03008-00

Unavailable

25

GASKET, FUEL COCK

434-24532-00-00

Unavailable
