- TY250D (TY250) 1977
FRONT FORK

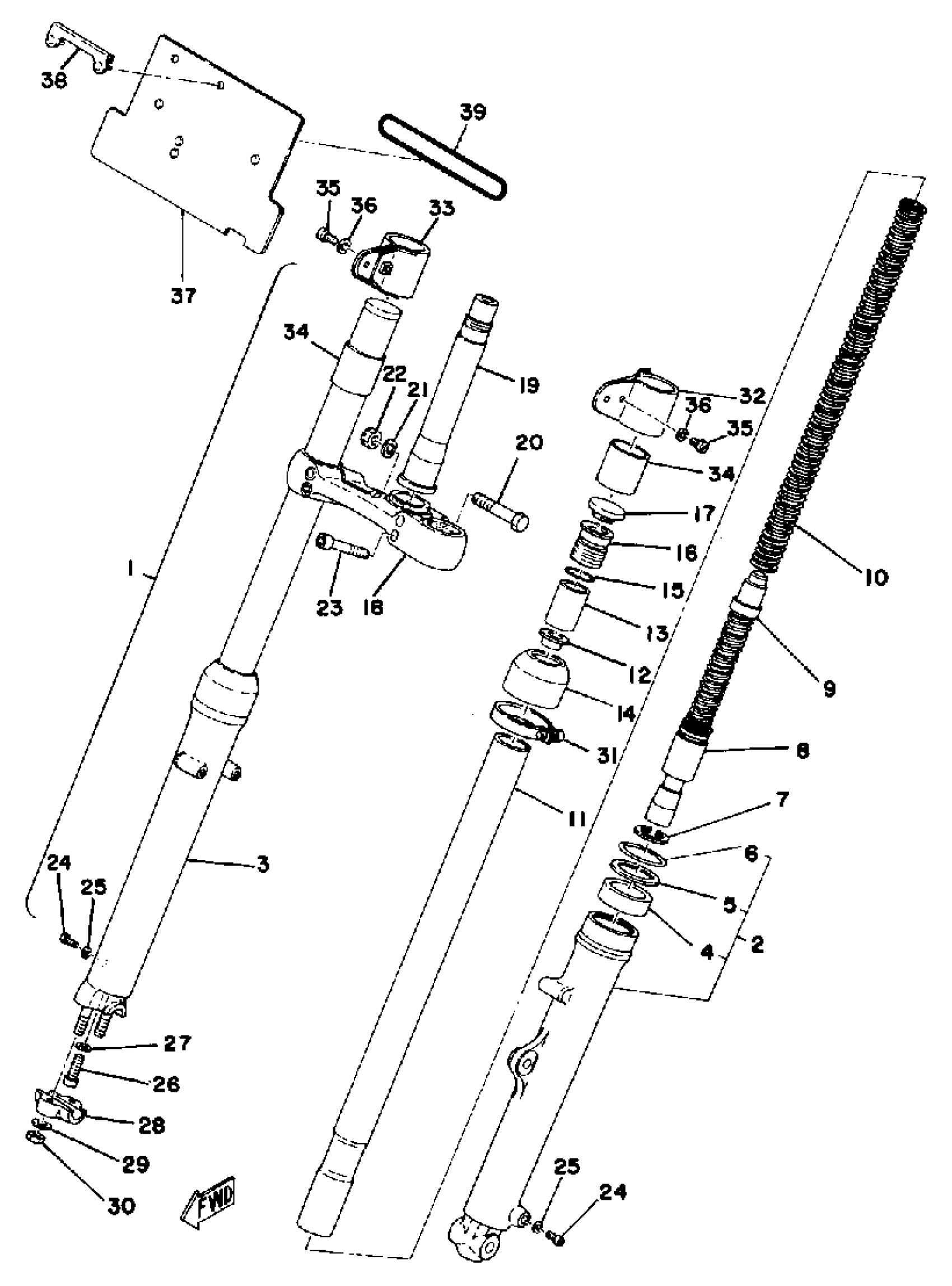

Yamaha TY250D (TY250) 1977 FRONT FORK Diagram
#
1
FRONT FORK ASSEMBLY
(434-23101-00-00)
Unavailable
2
TUBE, OUTER 1
(434-23126-00-00)
Unavailable
3
TUBE, OUTER 2
(434-23136-00-00)
Unavailable
5
.. WASHER, OIL SEAL
214-23146-00-00
Unavailable
6
.. CLIP, OIL SEAL
214-23156-00-00
Unavailable
7
. CIRCLIP, INNER
93450-30033-00
Unavailable
8
PISTON, FRONT FORK
(434-23171-00-00)
Unavailable
9
CYLINDER, FRTFRK
(434-23170-00-00)
Unavailable
10
. SPRING, FRONT FORK
434-23141-00-00
Unavailable
11
TUBE, INNER 1
(434-23124-00-00)
Unavailable
12
. SEAT, SPRING UPPER
278-23142-50-00
Unavailable
13
SPACER
(214-23118-00-00)
Unavailable
14
. SEAL, DUST
292-23144-00-00
Unavailable
15
. GASKET
214-23114-00-00
Unavailable
16
. BOLT, CAP
341-23111-51-00
Unavailable
17
. CAP, FRONT FORK
371-23168-60-00
Unavailable
18
BRACKET, LOWER
(434-23345-00-00)
Unavailable
19
SHAFT, STEERING
(516-23341-31-00)
Unavailable
20
BOLT 2
(322-23356-00-00)
Unavailable
21
YBS67-10 WASHER, SPRING
92990-10100-00
Unavailable
22
NUT
(322-23357-00-00)
Unavailable
23
BOLT 1
(322-23346-00-00)
Unavailable
24
SCREW, PAN HEAD (713)
98580-04008-00
Unavailable
25
GASKET, DRAIN PLUG
122-23129-00-00
Unavailable
26
BOLT, HEXAGON SOCKET HEAD
3D8-23181-00-00
Unavailable
27
GASKET
509-23158-L0-00
Unavailable
28
. HOLDER, AXLE
315-23167-51-00
Unavailable
29
.. WASHER, PLATE
92990-08600-00
Unavailable
30
NUT(6L2)
95333-08600-00
Unavailable
31
UNAVAILABLE IN PRICE BOOK
90460-33050-00
Unavailable
32
COVER, UPPER 1
(434-23121-01-93)
Unavailable
33
COVER, UPPER 2
(434-23131-01-93)
Unavailable
34
GASKET
(434-23163-00-00)
Unavailable
35
SCREW, PAN HEAD(6E5)
97880-06018-00
Unavailable
36
WASHER, SPRING
92995-06100-00
Unavailable
37
UNAVAILABLE IN PRICE BOOK
493-23405-00-32
Unavailable
38
DAMPER
(493-23465-00-00)
Unavailable
39
O-RING (802)
93210-99103-00
Unavailable
