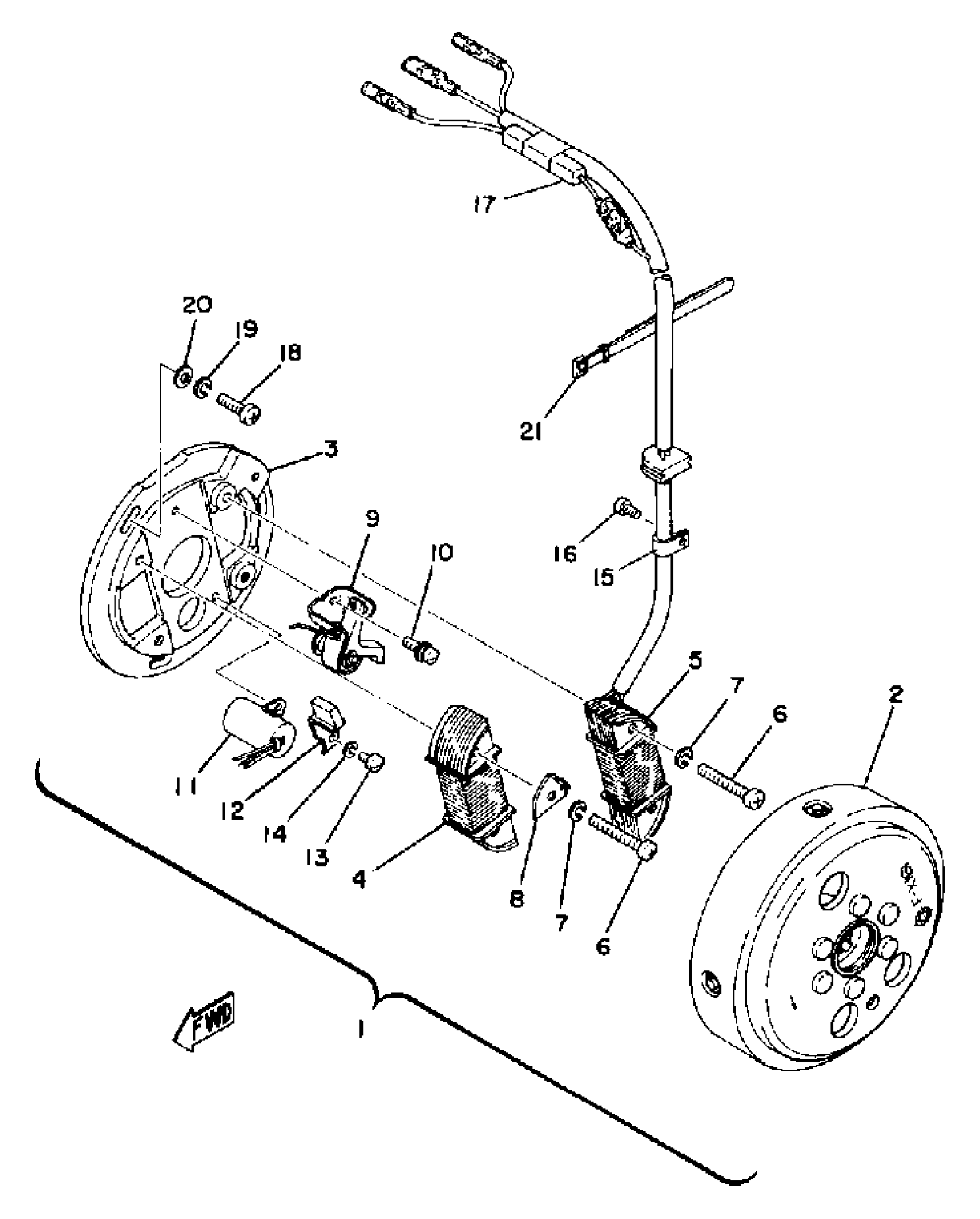

Yamaha TY250D (TY250) 1977 FLYWHEEL MAGNETO Diagram

#

Description
Price

1

FLYWHL MAGNETO ASSEMBLY

(493-81300-11-00)

Unavailable

2

ROTOR ASSEMBLY

(493-81350-10-00)

Unavailable

3

BASE, MAGNETO

(493-81309-11-00)

Unavailable

4

. COIL, SOURCE

461-81312-10-00

Unavailable

5

COIL, LIGHTING 1

(493-81313-10-00)

Unavailable

6

SCREW, PAN

98507-05035-00

$8.49

7

YBS67-5 WASHER, SPRING

92990-05100-00

$0.35

8

PLATE, TIMING

(434-81332-10-00)

Unavailable

9

. CONTACT BRKR ASSEMBLY

434-81321-10-00

Unavailable

10

SCREW, PAN HEAD

110-81346-21-00

$5.49

11

. CONDENSER 2

207-81326-90-00

Unavailable

12

. LUBRICATOR

207-81331-10-00

Unavailable

13

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

14

YBS67-4 WASHER, SPRING

92990-04100-00

$0.86

15

CLAMP, LEAD

(363-85528-10-00)

Unavailable

16

SCREW, PAN HEAD (713)

98580-04008-00

$5.60

17

DIODE

(296-81980-09-00)

Unavailable

18

SCREW PAN HEAD

98580-06020-00

Unavailable

19

WASHER, SPRING

92995-06100-00

Unavailable

20

WASHER, PLAIN (646)

92990-06600-00

Unavailable

21

BAND, SWITCH CORD

437-83936-01-00

Unavailable
