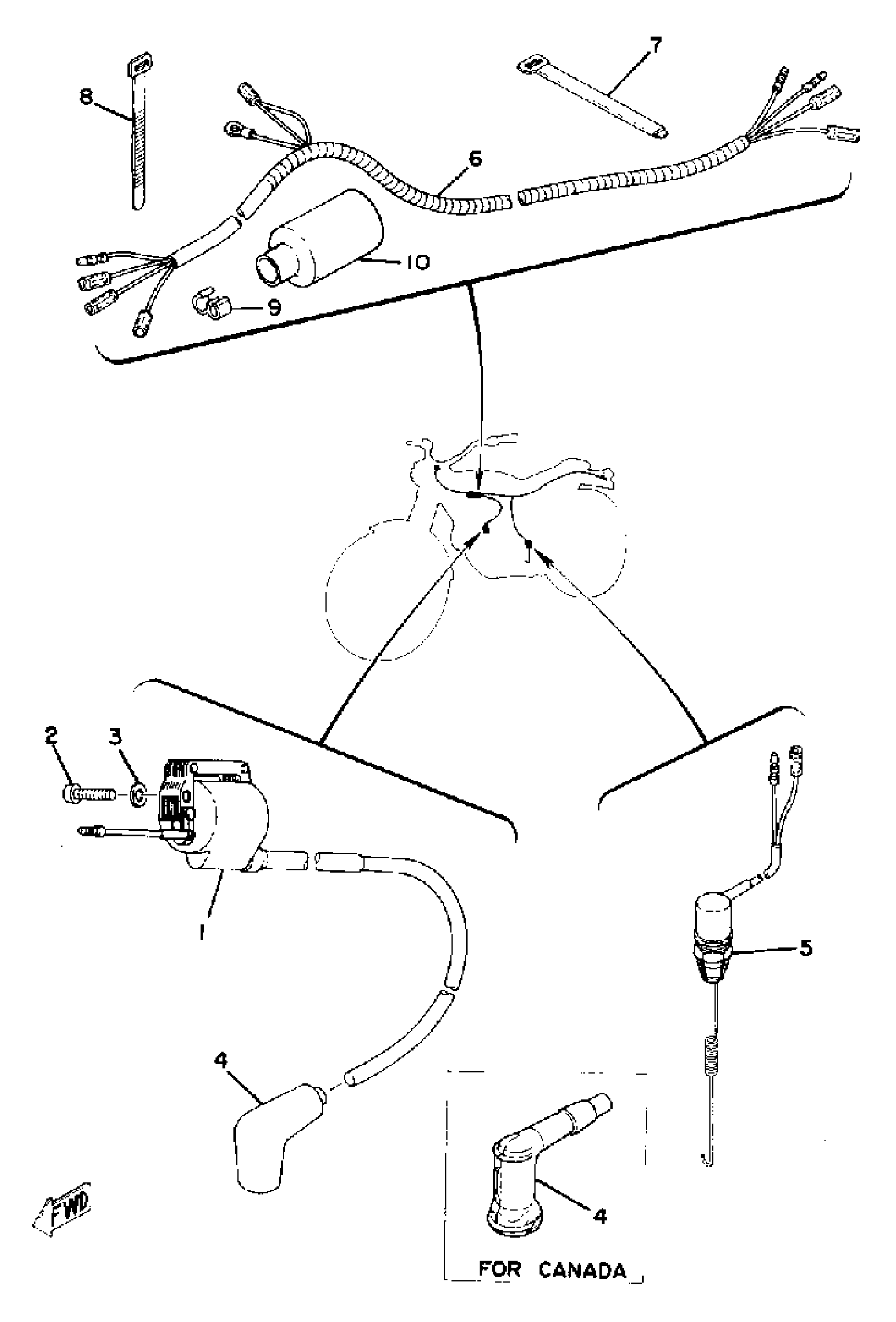

Yamaha TY250D (TY250) 1977 ELECTRICAL Diagram

#

Description

Price

1

IGNITION COIL ASSY

304-82310-30-00

Unavailable

1

IGNITION COIL ASSY

355-82310-40-00

Unavailable

2

SCREW, PAN HEAD (76T)

98517-06025-00

$3.77

3

WASHER, PLAIN (646)

92990-06600-00

$2.80

4

PLUG CAP ASSEMBLY

294-82370-00-00

Unavailable

4

PLUG CAP ASSEMBLY

808-82370-10-00

Unavailable

5

STOP SWITCH ASSEMBLY

434-82530-00-00

Unavailable

6

WIRE HARNESS ASSEMBLY

(434-82590-22-00)

Unavailable

7

BAND, SWITCH CORD

437-83936-01-00

$7.99

8

BAND

341-26397-01-00

Unavailable

9

CLIP (867)

90468-15020-00

Unavailable

10

COVER, CONNECTER

(306-82599-00-00)

Unavailable
