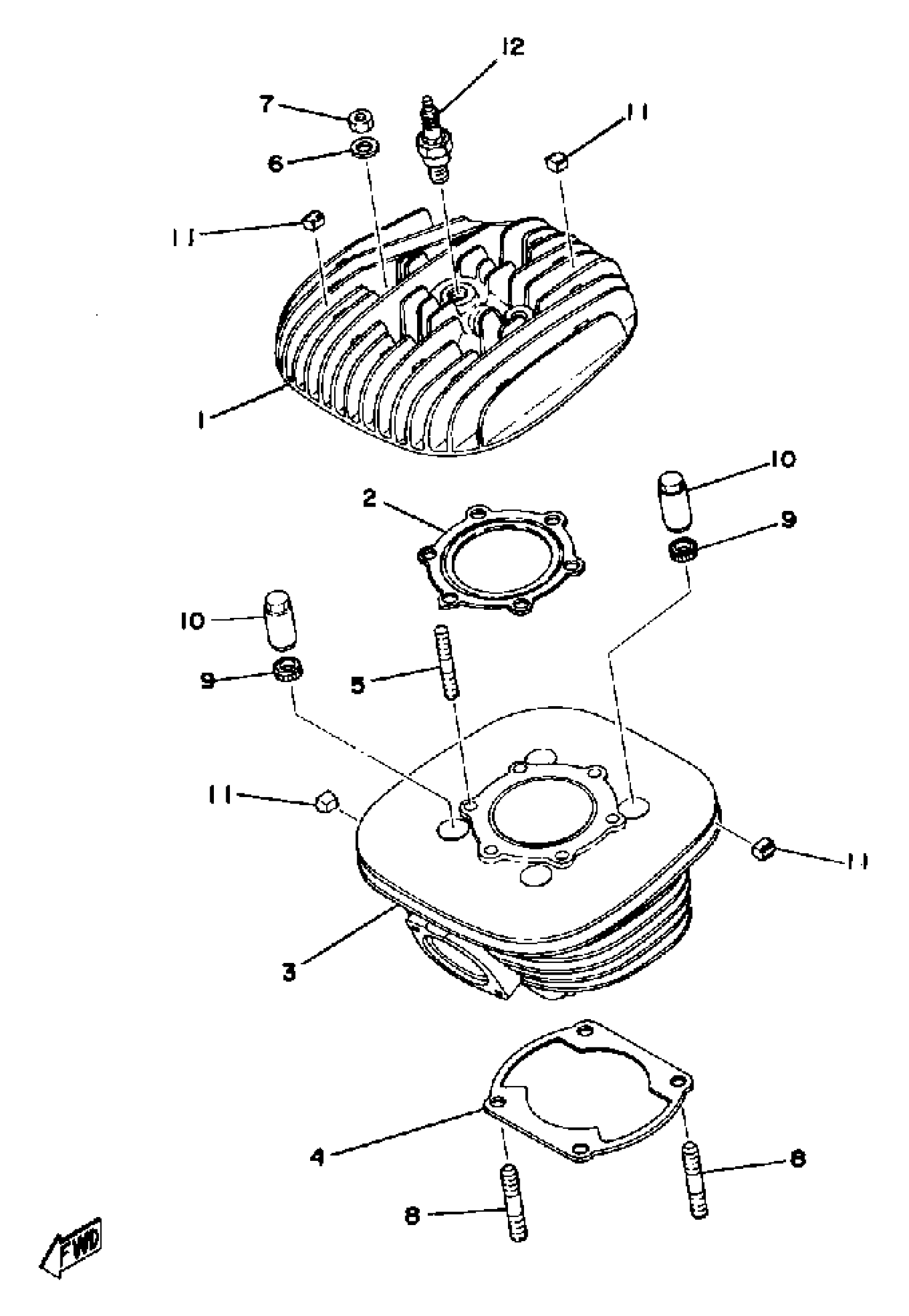

Yamaha TY250D (TY250) 1977 CYLINDER HEAD-CYLINDER Diagram

HEAD, CYLINDER 1

(434-11111-00-00)

Unavailable

GASKET, CYLINDER HEAD

434-11181-00-00

$31.99

CYLINDER 1

(493-11311-01-00)

Unavailable

GASKET, CYLINDER

364-11351-01-00

$23.99

BOLT STUD 363111790000

90116-08104-00

$17.99

WASHER, PLATE (397)

90201-08100-00

$8.49

NUT(6L2)

95333-08600-00

$2.49

BOLT (363-11361-00)

90116-10087-00

$17.99

WASHER, PLATE (363-11175-00)

90201-11155-00

Unavailable

NUT

90179-10021-00

$25.99

ABSORBER

434-11161-00-00

Unavailable

B7ES NGK SPLUG 4PK

B7E-S0000-00-00

Unavailable
